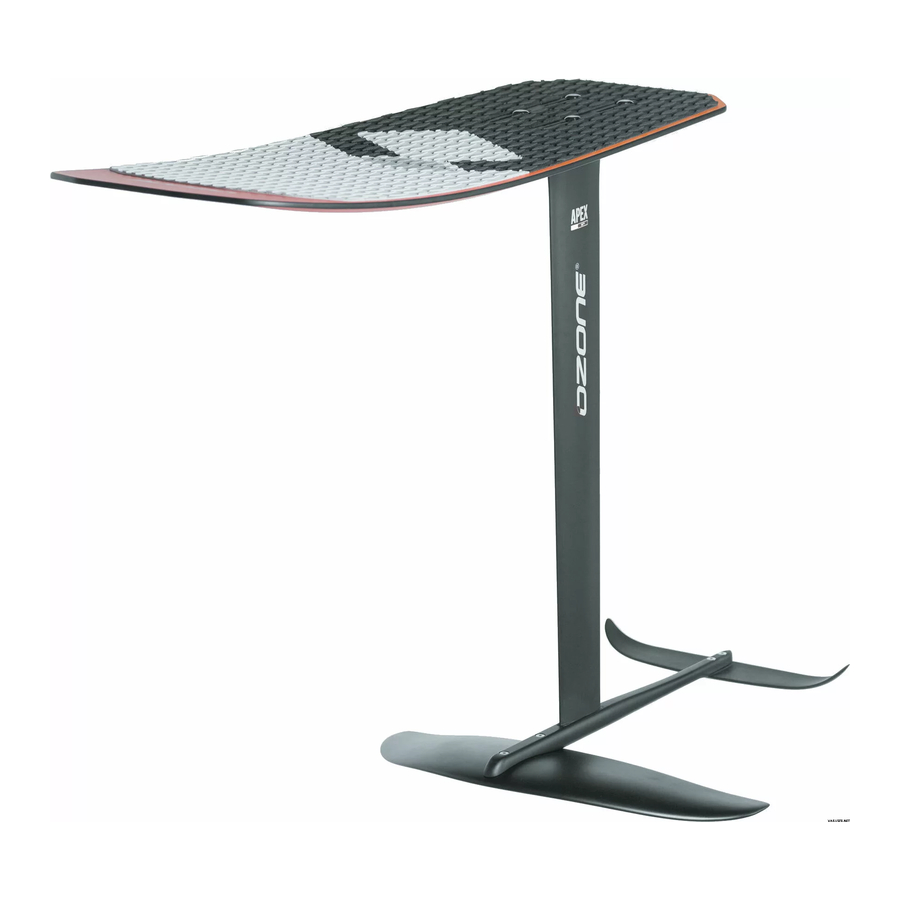

Summary of Contents for Ozone Apex V1 Foil
- Page 2 TO RELEASE Ozone Kitesurf LTD or Ozone Kites LTD and all related parties from any and all liability for any loss, damage, injury or expense that you or any users of you Ozone product may suffer, or that your next of kin may suffer,...
- Page 3 • Ozone will not be responsible for any costs, losses, or damages incurred as a result of loss of use of this product. • Always use extreme caution when using this product. The warranty does not cover damage caused by misuse, abuse, neglect or normal wear and tear including but •...
- Page 4 4x Titanium T-Nut Deck Washers (Supplied with Apex V1 board) set-UP MAST 4x M6 T30 22mm Titanium Screws IMPORTANT NOTES: • Before assembling check all connecting surfaces, screws and barrel nuts are clean and free of sand, salt or other debris. •...
- Page 5 MAST TO BOARD: ThE APEx V1 FOIL IS SUPPLIED WITh 4x M6 T30 22MM TITANIUM SCREWS. ThESE CAN BE USED WITh ThE APEx V1 BOARD USINg OUR CUSTOM TITANIUM T-NUT DECK WAShERS (4x SUPPLIED WITh APEx V1 BOARD), OR WITh OThER BOARDS USINg A US BOx AND M6 T-NUTS (NOT SUPPLIED).
- Page 6 OTHER BOARDS Continued... FUSELAgE TO MAST: FRONT WINg TO FUSELAgE: The Fuselage to Mast tuttle connection is designed to be a tight fit. Align the screws, get them Do not tighten or loosen the Barrel Nuts as these are glued in place. Only tighten or loosen the started and proceed to tighten.
- Page 7 REAR WINg ShIMS: Rear Wing Shims are for experienced riders looking to adapt the speed, stability and maneuverability to their personal preference. These fit between the Rear Wing and Fuselage to adjust the AOA (angle of attack) of the Rear Wing. REAR WINg TO FUSELAgE: Do not tighten or loosen the Barrel Nuts as these are glued in place.
- Page 8 Care and MaintenanCe This is a technical product used in harsh marine environments. Use common sense and care for your equipment. • Always use the foil covers for protection. • Never leave in direct sunlight or in a hot area such as inside a car. •...
