Summary of Contents for Abu Garcia ZENON
- Page 2 ® to keep the fun in fishing. The following guide will explain how to get the most out of your new Zenon spinning reel. ® Each element is described by its name and function. Some features are not found on every reel model.

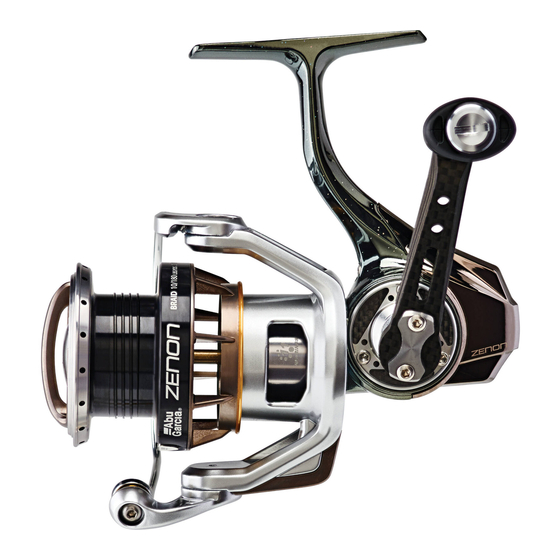

- Page 3 COMPONENTS A. Bail Wire B. Handle screw cap C. Handle knob D. Handle E. Stem F. Spool G. Drag dial H. Line clip I. Rotor J. Spare shallow spool ZENON SP MANUAL abugarcia.com...
- Page 4 Use the spool axle knot to attach the line to the spool. Before tightening the loop, twist and pass it over the spool two additional times. Pull the loop tight and fill the spool with line to approximately 1/16” (1.5 mm) inside the upper lip of the reel spool (show picture). Do not overfill. ZENON SP MANUAL abugarcia.com...
-
Page 5: Handle Assembly
Reel maintenance kits can be purchased at your local tackle store and include everything you need to properly service your reel. If you do not wish to perform this work yourself any nearby Abu Garcia Service Center is fully ®... -
Page 6: Limited Warranty
This Warranty gives you specific legal rights and you may have other rights which vary from state to state. Do not send cash or checks to cover the cost of repair for products on which the Limited Warranty period has expired. Abu Garcia ’s...
