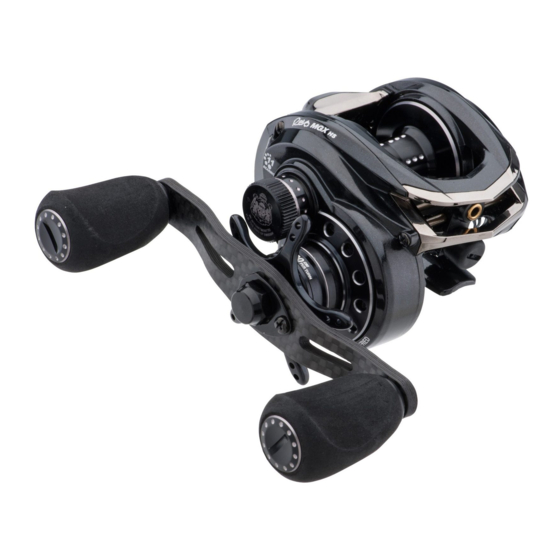

REVO MGX/MGXtreme LOW PROFILE INSTRUCTION MANUAL
a. Congratulations
b. Pictures of Components
c. Family Info
d. How to Fill the Spool with Line
e. Drag Adjustment
f. Spool Tension Knob
g. Removing the Sideplate
h. Reel Function
i. Maintenance
j. Revo® Shop Accessories
k. Warranty Information
A. CONGRATULATIONS:
Thank you for purchasing one of the world's most advanced low profile reels. The combination
of low profile design, ultra-lightweight materials and precision engineering makes Abu Garcia®
THE choice for serious anglers around the globe. These reels are widely used by pros on the
tournament circuit, guides, record seeking experts and anglers who demand the very best from
their equipment. Rely on Abu Garcia® quality and dependability to keep the fun in fishing.
The following guide will explain how to get the most out of your new Revo® MGX/MGXtreme
low profile reel. Each element is described by its name and function. Some features are not
found on every reel model. Read these instructions carefully before using your reel to ensure a
proper understanding of its operation.
B. COMPONENTS:
Include:
Star drag
Line guide
Handle
Spool
Spool Tension Knob
Palm Sideplate
Thumb Screw
Knobs
Thumb Bar
Brake Dial
IVCB-IV™ Brake Dial
Handle Sideplate
Gear Box
Frame
Handle Nut
Maintenance Port Screw
Nut Retainer Screw
Trim Ring
Handle Knob Caps
Nut Retainer
Advertisement
Related Manuals for Abu Garcia REVO MGX
Summary of Contents for Abu Garcia REVO MGX
- Page 1 Rely on Abu Garcia® quality and dependability to keep the fun in fishing. The following guide will explain how to get the most out of your new Revo® MGX/MGXtreme low profile reel.
- Page 3 C. THE REVO® MGX & MGXtreme: The combination of an enhanced compact design with our ground-breaking X-Mag alloy frame and C6 carbon sidelplates produce the evolution of ultra-lightweight, low profile reel technology. Revo® MGX & MGXtreme low profile reels feature the adjustable IVCB-IV brake system provides precision brake adjustments, allowing anglers to cast a wide variety of baits including lightweight finesse lures.
- Page 4 adjustment star by rotating it clockwise. When the line reaches its breaking point, loosen the adjustment star ¼ turn. F. SPOOL TENSION KNOB The spool tension knob controls how fast the spool spins when casting. It is located on the sideplate of the reel next to the handle.
- Page 5 The IVCB-IV™ brake system (Infinitely Variable Centrifugal Brake) delivers superior casting control using a unique four brake block configuration that works vertically instead of horizontally. This system allows anglers to use a wide range of lures and excels in the ability to throw lightweight finesse style baits - something that traditional horizontal braking systems struggle to accomplish.
-
Page 6: Maintenance
Using a small philips head screwdriver, rotate the screw counterclockwise until free. The small “door” can now be removed. Lightly grease the exposed main gear with quality grease such as Abu Garcia Reel Lube. Once maintenance has been completed, reposition the door over the maintenance port and reinstall the maintenance port screw. -
Page 7: One-Year Limited Warranty
Trade Commission Improvement Act which is effective for goods manufactured on or after December 31, 1976. For the period indicated, Abu Garcia will, at its option, repair or replace and return the covered items found to be defective in material or workmanship at no charge except for shipping cost. - Page 8 Trade Commission Improvement Act which is effective for goods manufactured on or after December 31, 1976. For the period indicated, Abu Garcia will, at its option, repair or replace and return the covered items found to be defective in material or workmanship at no charge except for shipping cost.
