- Page 1 4KCVH2H HDMI 2.0 Audio Extractor User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Overview ..........................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Front Panel........................4 Rear Panel ........................5 EDID Management ....................6 Installation and Application................. 8 Installation ..........................8 Steps to install the device in a suitable location: ..........8 Application .......................... -
Page 6: Introduction

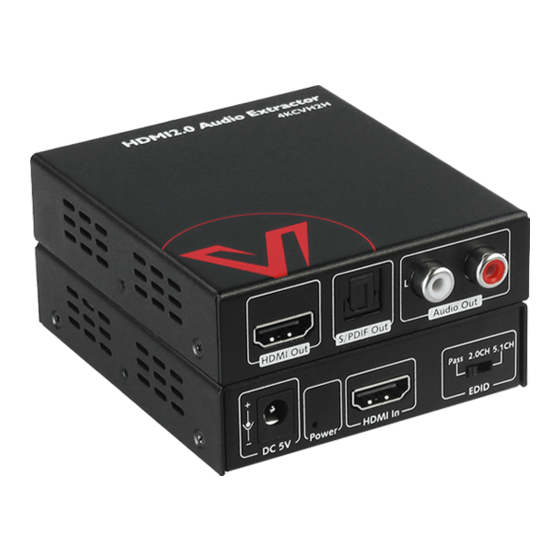

Introduction Introduction Overview 4KCVH2H is an HDMI2.0 audio extractor with resolutions up to 4K@60Hz (Chroma sub-sampling 4:4:4 8-bit) and HDCP 2.2. Its digital or analog audio output allows audio to be de-embedded from HDMI input and sent to audio distribution system, such as AVR or Amplifier. Third-gear slide switch for audio setting in EDID has 3 EDID (pass-through, 2.0ch and 5.1ch) -
Page 7: Package Contents
4K@60Hz 4:4:4 24bpp, and up to 49ft/15m + 49ft/15m at 1080P@60Hz 36bpp. Package Contents Before you start the installation of the product, please check the package contents: 4KCVH2H x 1 Power Adapter (DC 5V 1A) with US pins x 1 Mounting Brackets (with Mounting screws) x 2 ... -
Page 8: Panel
Introduction Panel Front Panel Name Description HDMI Out Connects to an HDMI display TOSLINK connector, HDMI digital audio de-embedded S/PDIF Out out, connects to audio distribution system such as amplifier. Stereo RCA connector, HDMI analog audio de-embedded Audio Out (L out, connects to L/R channel of audio distribution system and R) such as speaker. -
Page 9: Rear Panel
Introduction Rear Panel Name Description DC 5V Connects to the power adapter provided. ON: The device is powered on. Power OFF: The device is powered off. HDMI In Connects to an HDMI source. Slide Switch for EDID Management. Note: More information, please refer to EDID EDID Management section. -
Page 10: Edid Management
EDID management that can be used when the EDID doesn't meet the installation requirements. The 4KCVH2H features a third-gear slide switch on the rear panel. By default, the slide switch is set in Pass Through position. Please refer to the table below to set the switch manually. - Page 11 EDID Management HDMI Output SPDIF Output Display Audio L/R Output Audio Audio Audio Dolby /DTS 7.1 Dolby/DTS 7.1 Dolby/DTS 5.1 Dolby/DTS 5.1 Dolby/DTS 5.1 PCM 7.1 PCM 7.1 PCM 2.0 PCM 2.0 PCM 5.1 PCM 5.1 PCM 2.0 PCM 2.0 PCM 2.0 PCM 2.0 PCM 2.0...
-
Page 12: Installation And Application
Installation and Application Installation and Application Installation Note: Before installation, Please ensure the device is disconnected from the power source. In order to keep elegant appearance, we design to share screws with the product chassis, please refer to the below steps to install. Steps to install the device in a suitable location: Position and install the mounting brackets of the device with the two mounting screws provided. -
Page 13: Application
Installation and Application Application Note： The HDMI source contains many kinds of device such as Apple TX, STB, Xbox, Media player, Blu-ray player, etc. The HDMI display contains many kinds of device such as TV, Monitor, Projector, etc. When connecting with HDMI2.0 sources, standard HDMI2.0 cables are ... -
Page 14: Specification
Specification Specification Technical Video Signal Type HDMI up to 4K@60Hz (4:4:4 8-bit) with HDCP 2.2 Input Signal Type HDMI: HDMI 2.0 / HDCP 2.2 VESA: 800x600 , 1024x768 , 1280x768 , 1280x800 1280x960 , 1280x1024 , 1360x768 1366x768 , 1440x900 , 1600x900 1600x1200 , 1680x1050... - Page 15 Specification 1 = at 23.98 Hz, 2 = at 24 Hz, 3 = at 25 Hz, 4 = at 29.97 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz; Maximum Data Rate 18Gbps SPDIF: PCM 2.0, up to Dolby Digital and DTS 5.1...
-
Page 16: Trouble Shooting
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on (source, extractor and display device). Indicator: Please make sure power LED is normal powered on. Devices: Please make sure pictures can be shown normally when connecting source to display devices directly. -
Page 17: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 20 AV Access Technology Limited V1.0.1...
