- Page 1 4KCVH2H 4K HDMI Audio Extractor User Manual...
- Page 3 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
- Page 4 Important Safety Instructions Do not expose this apparatus to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the apparatus. Do not install or place this unit in a bookcase, built-in cabinet, or in ...
-
Page 5: Table Of Contents
Table of Contents Overview ........................2 Package Contents ........................2 Front Panel ........................... 4 Rear Panel ............................. 5 EDID Management ....................6 Installation Instructions ..................7 Specification ......................9 Warranty ........................ 11 www.avaccess.com... -
Page 6: Overview

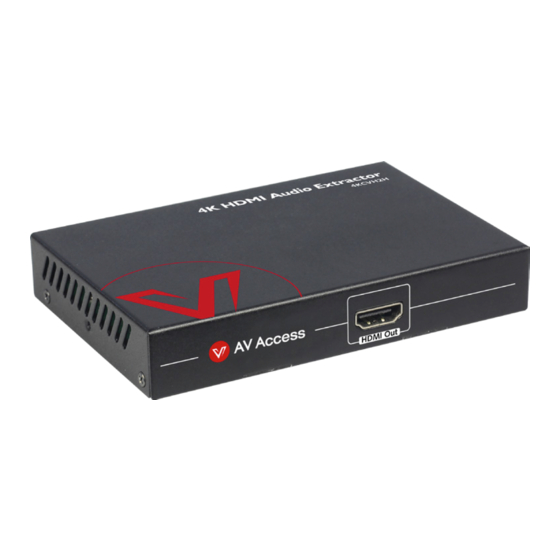

Overview Overview is a 4K HDMI audio extractor with resolutions up to 4KCVH2H 4K@60Hz (chroma sub-sampling 4:2:0 10-bit only) and HDCP 2.2. Its digital or analog audio output allows audio to be de-embedded from HDMI input and sent to audio distribution system, such as AVR or Zone Amplifier. -
Page 7: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: 1 x 4KCVH2H 1x Power Supply (DC 12V 0.5A) 1 x Mounting Brackets (Pairs) 1 x User Manual www.avaccess.com... -
Page 8: Front Panel
Overview Front Panel No. Name Description HDMI Out Connects to an HDMI display www.avaccess.com... -
Page 9: Rear Panel
Overview Rear Panel No. Name Description 12V DC power input, threaded port for standard DC 12V or locking connection ON: The transmitter is powered on. POWER LED OFF: The transmitter is powered off. HDMI In Connects to an HDMI source Switch for EDID Management with 16 EDID EDID presets... -
Page 10: Edid Management
EDID Management EDID Management Switch for EDID Management with 16 presets as follows: Position Descriptions 0(default) Copy EDID from HDMI Out 3840x2160@60Hz 2CH 3840x2160@30Hz 2CH 1920x1080@60Hz 2CH 1280x720@60Hz 1920x1200@60Hz 2CH 1680x1050@60Hz 2CH 1600x1200@60Hz 2CH 1600x900@60Hz 1440x900@60Hz 1400x1050@60Hz 2CH 1360x768@60Hz 1280x1024@60Hz 2CH 1280x960@60Hz 1280x768@60Hz 1024x768@60Hz... -
Page 11: Installation Instructions
Connect the HDMI display device (such as projector) to the HDMI Out of the 4KCVH2H. Connect audio system to the S/PDIF Out or AUDIO Out port of the 4KCVH2H. Connect the included 12V power supply to the 4KCVH2H. Power on the devices. www.avaccess.com... - Page 12 Installation Instructions www.avaccess.com...
-
Page 13: Specification
Specification Specification Technical Input 1 x HDMI IN HDMI 2.0 up to 4K@60Hz (4:2:0 10-bit) Input Signal Type and HDCP 2.2. VESA: 800x600@60Hz, 1024x768@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, Input Resolution 1920x1200@60Hz; Support SMPTE: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P@24/25/30/50/60Hz, 1080I@50/60Hz, 720P@50/60Hz,... - Page 14 Specification 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz; SMPTE: 4096x2160@24/25/30/50/60Hz, 3840x2160@24/25/30/50/60Hz, 1080P@24/25/30/50/60Hz, 1080I@50/60Hz, 720P@50/60Hz, 576P@50Hz, 480P@60Hz Video Impedance 100 Ω General Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection...
-
Page 15: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 16 AV Access Technology Limited V1.0.1...
