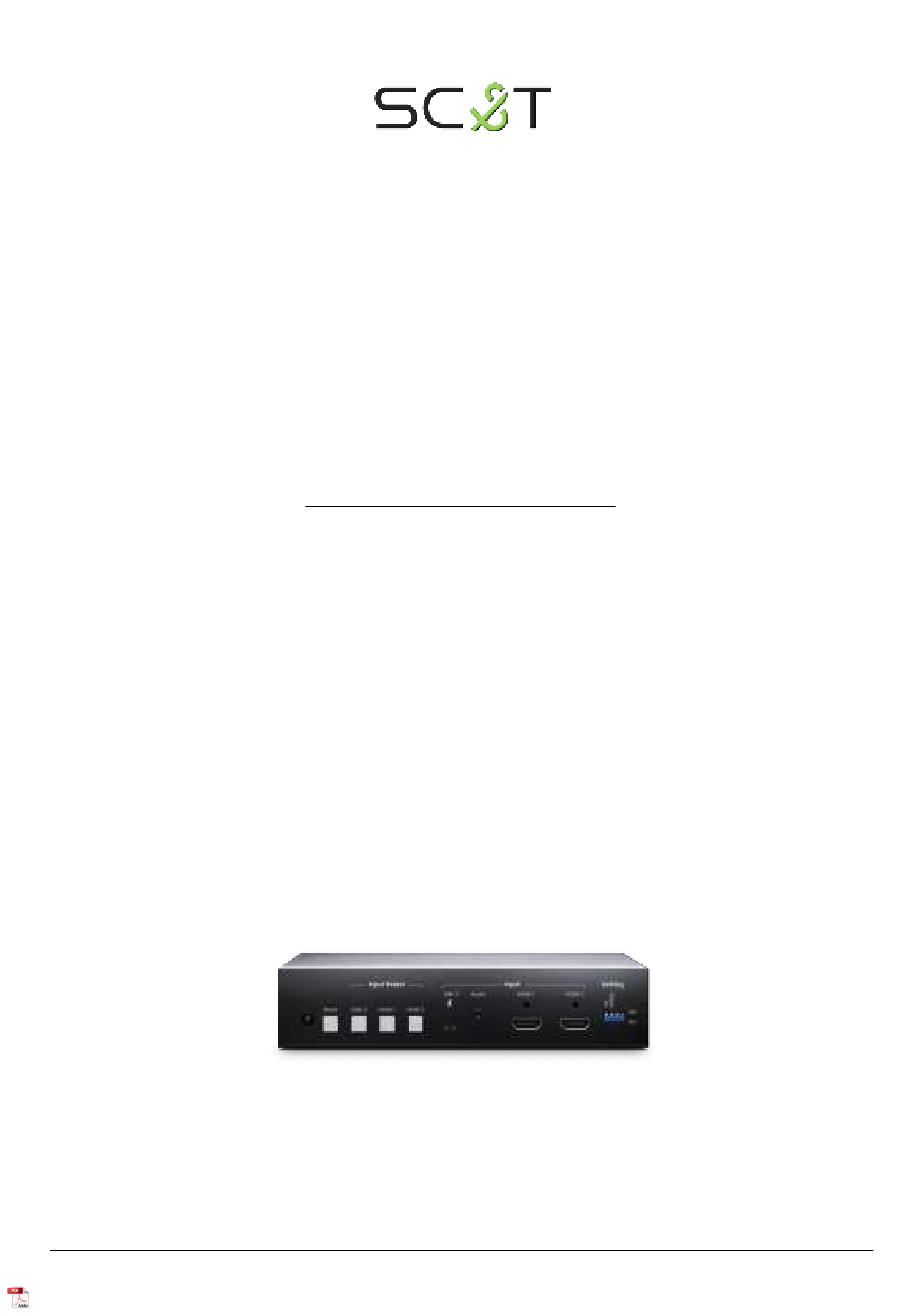

- Page 1 HDMI Switcher Series User Manual Model : HUS03-4K6G 4K60 3x1 HDMI/USB-C Presentation Switcher Smart Cabling & Transmission Corp. V1.0...
- Page 2 HUS03-4K6G Introduction HUS03-4K6G is a 3-in-1-out 4K@60Hz 4:4:4 video switcher designed to provide a user-friendly and intuitive operation for presenters to have their thoughts well-delivered during a meeting. The switcher supports HDMI and USB Type-C interfaces which can connect with most electronic devices and fulfill the BYOD need.
-
Page 3: Panel View
User Manual HUS03-4K6G Panel View Interface/ Port Description Internal IR Receiver To receive IR signal from IR remote, carrier frequency at 38KHz. To turn on/off the video display, auto-sensing, and default to factory Blank LED Button settings (Please refer to Description 7). - Page 4 User Manual HUS03-4K6G To use an audio cable to connect with speakers or an amplifier Audio Output Interface (Please refer to Description 4). To connect with a projector screen to adjust the screen position Relay Interface (Please refer to Description 5) Contact Closure To connect with an external control keypad.
- Page 5 User Manual HUS03-4K6G Description 3 - EDID Mode & Configuration EDID Mode Switch 1 Switch 2 Description Refer to the connected monitor EDID (audio supports Pass Through Mode OFF↑ OFF↑ 192KHz) 4K Mode ON↓ OFF↑ Resolution at 4K (Audio supports 2CH@48KHz) 1080p Mode ON↓...
- Page 6 User Manual HUS03-4K6G Description 5 – Relay Interface Description Normally Open Common Contact Normally Closed Contact Rating Load Type AC 120V Max. Allowable Voltage DC 24V Max. Allowable Current AC 1A Description 6 – Contact Closure Please pay attention to the electrical wiring, wrong wiring may damage the product.
- Page 7 When multiple inputs are connected and remove one of them, HUS03-4K6G will auto-detect the inputs for 6 secs and display the next available video source. When you connect a video input and then plug in the next one, HUS03-4K6G will display the last connected source.
- Page 8 Auto Mode: On a. LED Indications: USB-C, HDMI 1, HDMI 2 will blink 6 times (About 5 secs) after turning on HUS03-4K6G. And the LED of connected inputs will stay on. Auto Mode: Off a. LED Indications: USB-C, HDMI 1, HDMI 2 will blink 2 times (About 5 secs) after turning on HUS03-4K6G.
- Page 9 User Manual HUS03-4K6G Select USB-Type C as the video source Select HDMI 1 as the video source Select HDMI 2 as the video source Select USB Type-C/ HDMI 1/ HDMI 2 as the audio input source Select 3.5mm as the audio input source...
- Page 10 User Manual HUS03-4K6G Description 10 – RS232 Configuration & Commands Serial Configuration: 8-N-1, Baud Rate at 115200 All commands (Non-case sensitive) are shown below Command Description Remark 1: OFF BLANK△ 1/0 BLANK ON/OFF 0: ON BLANK△ ? Get BLANK status 1: ON POWER△...
- Page 11 User Manual HUS03-4K6G Description 11 – Factory Default Use Blank Button Step 1 - Push and hold the “Blank” button when power off. Step 2 - Immediately put on the power and push and hold the “Blank” button for 5 secs until 4 LEDs ...
-
Page 12: Specification
User Manual HUS03-4K6G Specification Item No HUS03-4K6G Support Compliance HDMI 2.0、HDCP 1.4/2.3、HDR10、DP1.3 Max. Video Resolution 4096 x 2160@60Hz Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 Color Space RGB, YCbCr Color Depth 8-bit, 10-bit, 12-bit, 16-bit Audio Format LPCM 7.1 @ 192KHz / Dolby TrueHD / DTS-HD MA Ports &... - Page 13 User Manual HUS03-4K6G Installation Guide Accessory Corner Iron SMF Screw (Machine Screw) SWT Screw (Self-drilled Screw) Rubber Pads Fix on a Table Step1 - Evenly install 2 SMF screws and 1 corner iron on each side of HUS03-4K6G...
- Page 14 User Manual HUS03-4K6G Step2 - Use 4 SWT screws to firmly fix HUS03-4K6G on a table. Fix beneath a table Step1 - Evenly install 2 SMF screws and 1 corner iron on each side of HUS03-4K6G...
- Page 15 User Manual HUS03-4K6G Step2 - Use 4 SWT screws to firmly fix HUS03-4K6G beneath the table. Use rubber pads to prevent the product from slipping down the platform...
- Page 16 User Manual HUS03-4K6G Wall Mounting Step 1: Install the SWT screws on a platform, and leave a 2mm high clearance. Step 2: Place HUS03-4K6G on the platform and fit its holes in the corresponding screw positions.
-
Page 17: Troubleshooting
User Manual HUS03-4K6G Step 3: Move HUS03-4K6G in a parallel direction until it gets fixed Troubleshooting If no videos are shown after connecting all cables and power, please follow the EDID configuration instruction or refer to the charts below to change your TV resolution to supported one. - Page 18 User Manual HUS03-4K6G VESA Standard Resolution Refresh Rate (Hz) 2560 × 1600 2560 × 1440 2048 × 1280 2048 × 1152 1920 × 1440 1920 × 1200 1920 × 1080 1856 × 1392 1792 × 1344 1680 × 1050 1600 × 1200 1600 ×...
