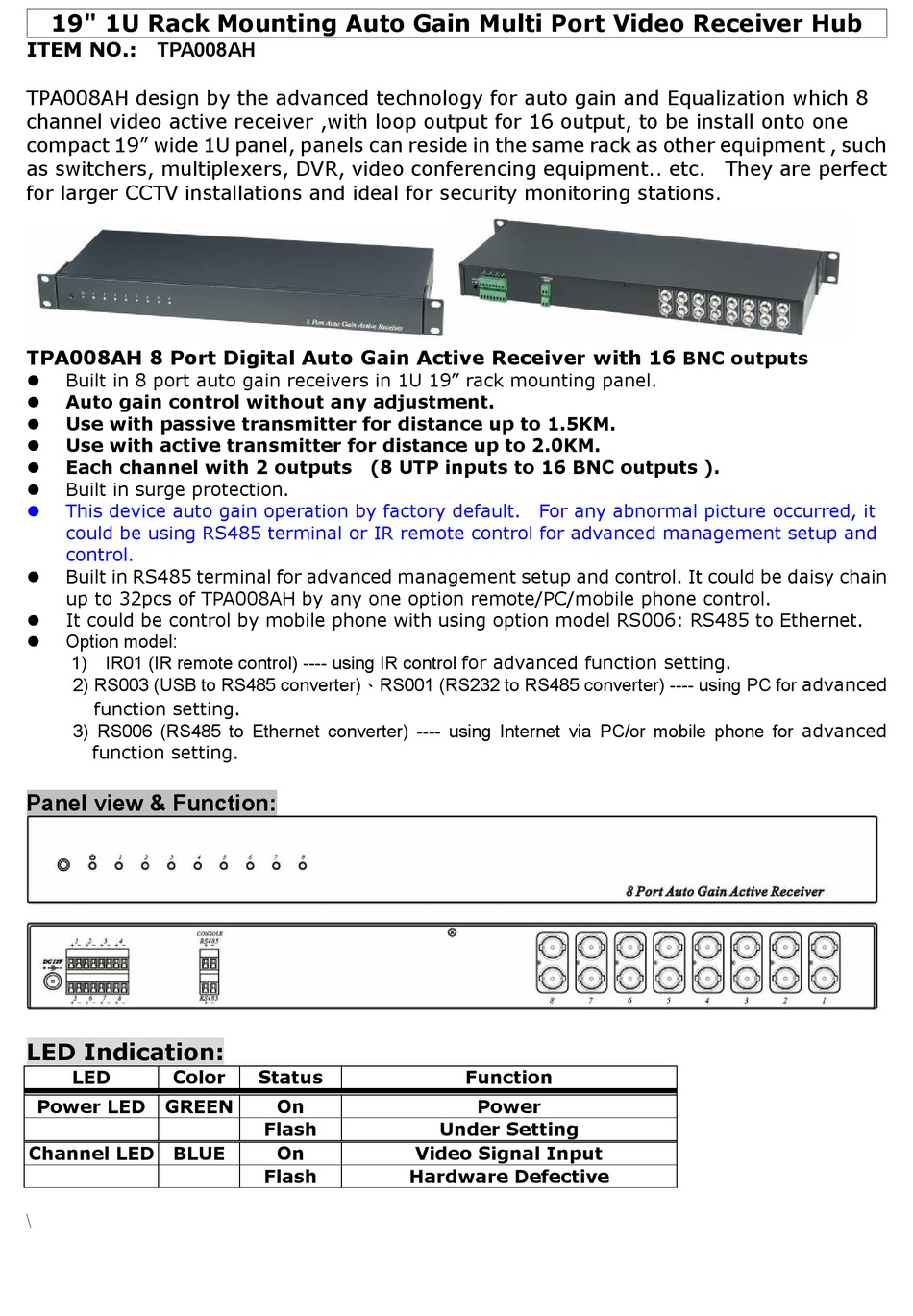

SC&T TPA008AH Manual

19" 1U Rack Mounting Auto Gain Multi Port Video Receiver Hub
ITEM NO.: TPA008AH
TPA008AH design by the advanced technology for auto gain and Equalization which 8
channel video active receiver ,with loop output for 16 output, to be install onto one
compact 19" wide 1U panel, panels can reside in the same rack as other equipment , such
as switchers, multiplexers, DVR, video conferencing equipment.. etc. They are perfect
for larger CCTV installations and ideal for security monitoring stations.
TPA008AH 8 Port Digital Auto Gain Active Receiver with 16
 Built in 8 port auto gain receivers in 1U 19" rack mounting panel.
 Auto gain control without any adjustment.
 Use with passive transmitter for distance up to 1.5KM.

Use with active transmitter for distance up to 2.0KM.
 Each channel with 2 outputs (8 UTP inputs to 16 BNC outputs ).
 Built in surge protection.

This device auto gain operation by factory default. For any abnormal picture occurred, it
could be using RS485 terminal or IR remote control for advanced management setup and
control.
 Built in RS485 terminal for advanced management setup and control. It could be daisy chain
up to 32pcs of TPA008AH by any one option remote/PC/mobile phone control.
 It could be control by mobile phone with using option model RS006: RS485 to Ethernet.
 Option model:
1) IR01 (IR remote control) ---- using IR control for advanced function setting.
2) RS003 (USB to RS485 converter)、RS001 (RS232 to RS485 converter) ---- using PC for advanced
function setting.
3) RS006 (RS485 to Ethernet converter) ---- using Internet via PC/or mobile phone for advanced
function setting.
Panel view & Function:

LED Indication:

LED Color
Power LED GREEN
Channel LED BLUE
\
Status
On
Flash
On Video Signal Input
Flash Hardware Defective
Function
Power
Under Setting
BNC outputs
