SC&T TPA008A Quick Start Manual

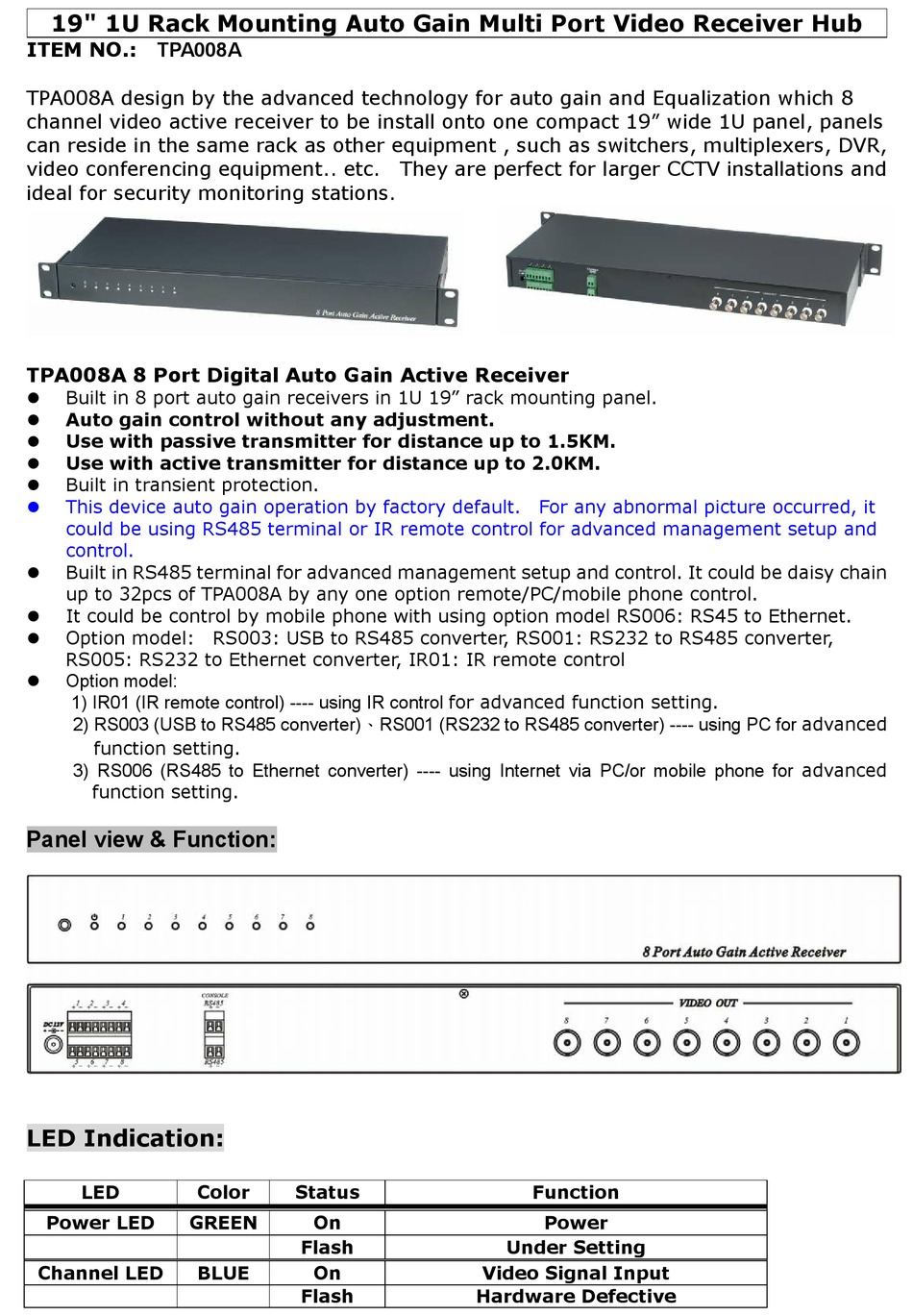

19" 1U Rack Mounting Auto Gain Multi Port Video Receiver Hub
ITEM NO.: TPA008A
TPA008A design by the advanced technology for auto gain and Equalization which 8
channel video active receiver to be install onto one compact 19" wide 1U panel, panels
can reside in the same rack as other equipment , such as switchers, multiplexers, DVR,
video conferencing equipment.. etc. They are perfect for larger CCTV installations and
ideal for security monitoring stations.

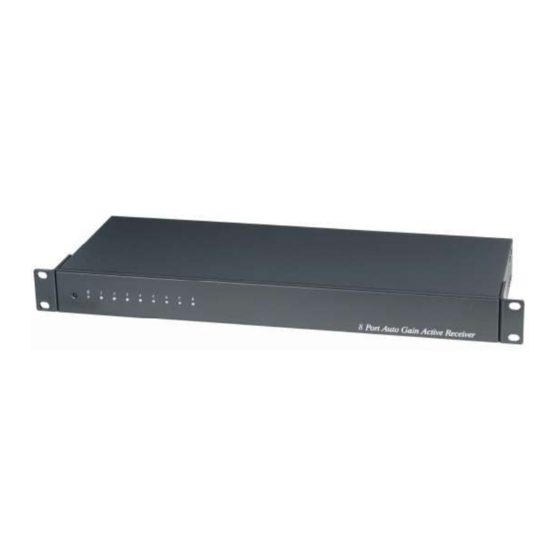

TPA008A 8 Port Digital Auto Gain Active Receiver

Built in 8 port auto gain receivers in 1U 19" rack mounting panel.
 Auto gain control without any adjustment.
 Use with passive transmitter for distance up to 1.5KM.
 Use with active transmitter for distance up to 2.0KM.
 Built in transient protection.
 This device auto gain operation by factory default. For any abnormal picture occurred, it
could be using RS485 terminal or IR remote control for advanced management setup and
control.
 Built in RS485 terminal for advanced management setup and control. It could be daisy chain
up to 32pcs of TPA008A by any one option remote/PC/mobile phone control.

It could be control by mobile phone with using option model RS006: RS45 to Ethernet.
 Option model: RS003: USB to RS485 converter, RS001: RS232 to RS485 converter,
RS005: RS232 to Ethernet converter, IR01: IR remote control

Option model:
1) IR01 (IR remote control) ---- using IR control for advanced function setting.
2) RS003 (USB to RS485 converter)、RS001 (RS232 to RS485 converter) ---- using PC for advanced
function setting.
3) RS006 (RS485 to Ethernet converter) ---- using Internet via PC/or mobile phone for advanced
function setting.
Panel view & Function:
LED Indication:
LED Color
Power LED GREEN
Channel LED BLUE
Status
On
Flash
On
Flash
Function
Power
Under Setting
Video Signal Input
Hardware Defective
