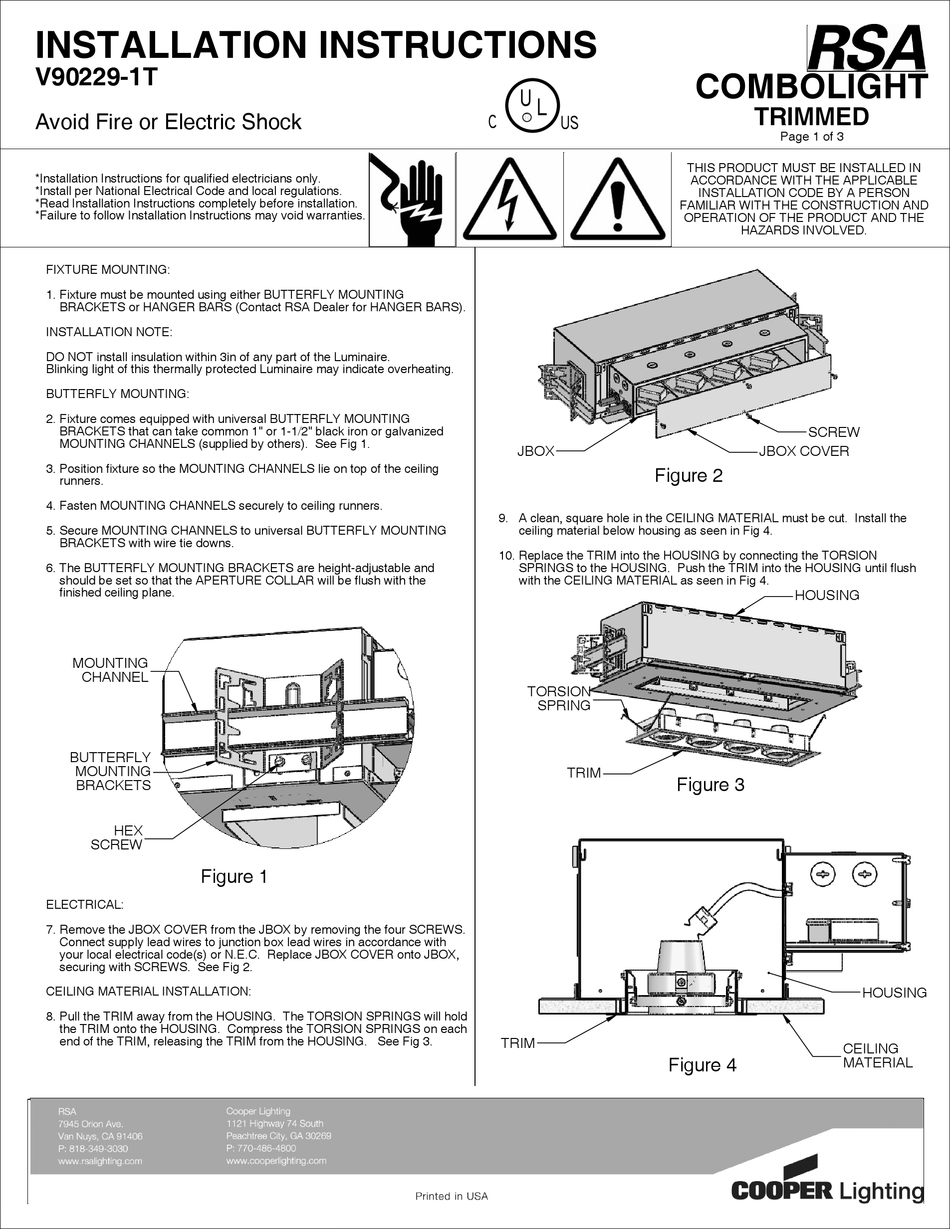

INSTALLATION INSTRUCTIONS

V90229-1T
Avoid Fire or Electric Shock
*Installation Instructions for qualified electricians only.
*Install per National Electrical Code and local regulations.
*Read Installation Instructions completely before installation.
*Failure to follow Installation Instructions may void warranties.
FIXTURE MOUNTING:
1. Fixture must be mounted using either BUTTERFLY MOUNTING
BRACKETS or HANGER BARS (Contact RSA Dealer for HANGER BARS).
INSTALLATION NOTE:
DO NOT install insulation within 3in of any part of the Luminaire.
Blinking light of this thermally protected Luminaire may indicate overheating.
BUTTERFLY MOUNTING:
2. Fixture comes equipped with universal BUTTERFLY MOUNTING
BRACKETS that can take common 1" or 1-1/2" black iron or galvanized
MOUNTING CHANNELS (supplied by others). See Fig 1.
3. Position fixture so the MOUNTING CHANNELS lie on top of the ceiling
runners.
4. Fasten MOUNTING CHANNELS securely to ceiling runners.
5. Secure MOUNTING CHANNELS to universal BUTTERFLY MOUNTING
BRACKETS with wire tie downs.
6. The BUTTERFLY MOUNTING BRACKETS are height-adjustable and
should be set so that the APERTURE COLLAR will be flush with the
finished ceiling plane.
MOUNTING
CHANNEL
BUTTERFLY
MOUNTING
BRACKETS
HEX
SCREW
Figure 1
ELECTRICAL:
7. Remove the JBOX COVER from the JBOX by removing the four SCREWS.
Connect supply lead wires to junction box lead wires in accordance with
your local electrical code(s) or N.E.C. Replace JBOX COVER onto JBOX,
securing with SCREWS. See Fig 2.
CEILING MATERIAL INSTALLATION:
8. Pull the TRIM away from the HOUSING. The TORSION SPRINGS will hold
the TRIM onto the HOUSING. Compress the TORSION SPRINGS on each
end of the TRIM, releasing the TRIM from the HOUSING. See Fig 3.




R
JBOX
Figure 2
9. A clean, square hole in the CEILING MATERIAL must be cut. Install the
ceiling material below housing as seen in Fig 4.
10. Replace the TRIM into the HOUSING by connecting the TORSION
SPRINGS to the HOUSING. Push the TRIM into the HOUSING until flush
with the CEILING MATERIAL as seen in Fig 4.
TORSION
SPRING
TRIM
TRIM
COMBOLIGHT
TRIMMED
Page 1 of 3
THIS PRODUCT MUST BE INSTALLED IN
ACCORDANCE WITH THE APPLICABLE
INSTALLATION CODE BY A PERSON
FAMILIAR WITH THE CONSTRUCTION AND
OPERATION OF THE PRODUCT AND THE
HAZARDS INVOLVED.
SCREW
JBOX COVER
HOUSING
Figure 3
CEILING
Figure 4 MATERIAL
HOUSING
