T6 G12 Metal Halide
Closed Back Machined Fixture w/ Integral Ballast
PM638cb | PM438cb | PM238cb | PM138cb
A machined aluminum track fixture that combines
the use of a T6 G12 Metal Halide lamp with a high
performance aluminum reflector. For use with RSA
Profile Series 60 Amp Busway, 20 Amp 1 or 2 Circuit
Track or 20 Amp 2 Circuit / 2 Neutral Track.
Reflectors available in 15º, 27º and 55º distributions.
Integral electronic metal halide ballast in aluminum
housing.
Front loading lamp with bayonet action lens /
accessory bezel. Optical accessories are captured
in the bezel with a threaded retainer ring preventing
accessory spill-out during relamping. Can accom-
modate up to three optical accessories.
Auto extending / retracting lamp holder. Lamps
extend for easy access and automatically retract
to optimum position. This is extremely helpful when
dealing with varying accessory combinations or dif-
fering manufacturer lamp dimensions.
Optical accessories include color filters, UV fil-
ters, screens, spread lenses, louvers, hex louvers,
snoots. Consult RSA for details.
Locking on both the horizontal and vertical
planes. 370º vertical rotation possible due to over-
center locking mechanism (60 amp busway only).
270º horizontal locking adjustment.
UL and CUL listed
Clear lens included.
Available in White, Black, Natural Aluminum or
custom finishes.
Closed Back Machined Fixture w/ Integral Ballast
❑ PM638cb - T6 G12MH for 60 Amp Busway
❑ PM138cb - T6 G12MH for 20 Amp 1 Circuit Track
❑ PM238cb - T6 G12MH for 20 Amp 2 Circuit Track
❑ PM438cb - T6 G12MH for 20 Amp 2 Cct. / 2 Neut. Track
Ordering Example:
PM638cb-39-15-AL-120
www.rsalighting.com

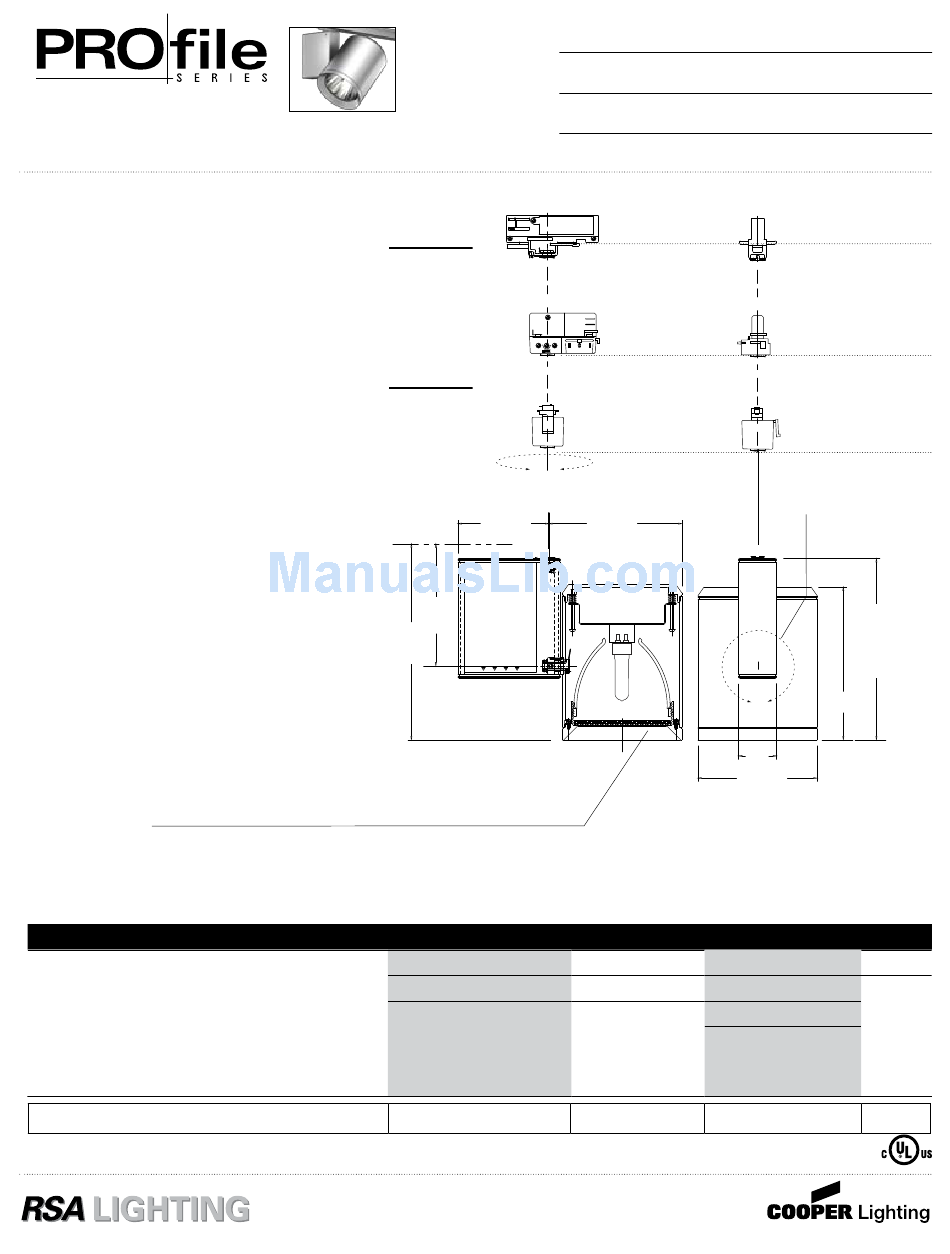

PM114
