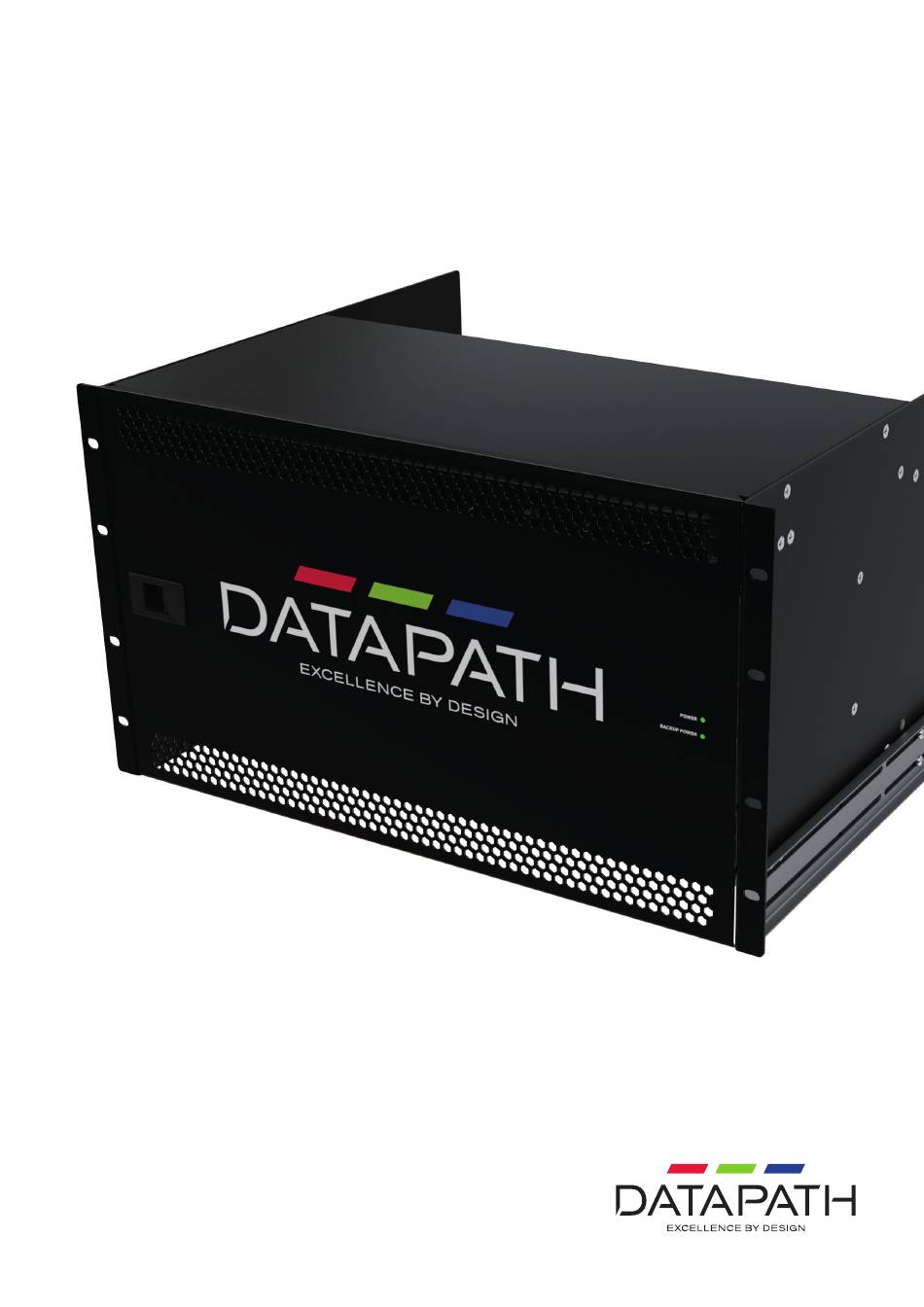

- Page 1 6U Rack Shelf Assembly Instructions For products: Aligo IQS4 Engineering the world’s best visual solutions...
- Page 2 Contents Device Mounting Plate Assembly (Long screws Pre-Assembled 6U Rack and circlips pre-fitted) Rack Rear M4 x 35mm Pozi Head PSU Modules Support Bar Countersunk Screws M4 x 8mm Pan M6 Cage Nut M6 Screws Head Pozi Screw M4 Nut 2-Way Screw Terminal Plug Zero volt connector for...
- Page 3 Assembly and Fitting Instructions Unpack the rack and the accessories, checking the contents. Push M6 caged nuts into the 19” cabinet front and rear. Remove the front cover by pushing the latch (to the right). This will release the whole panel.
- Page 4 Fit the rack into the 19” cabinet, secure using M6 screws. It’s recommended to provide extra stability by fitting the rear supports to the rack on each side using M4 screws. Secure the rear supports to the rear of the 19” cabinet using M6 screws.
- Page 5 Insert the PSU modules until they click into place. If the automatic power supply fail warning is desired: wire the normally open contacts to the cabinet alarm system. ‘12V status’ contacts open when all power is lost. ‘1+1 PSU status’ contacts open when either PSU module fails.
- Page 6 If not connected, connect the individual unit power supply connectors to the PCB as shown and to the individual unit. Fit the Aligo/IQS4 units to the backing plates using 35mm M4 screws. Slide the units into the...
- Page 7 Connect both rack power supplies to the mains using the supplied mains leads. Switch the power on. Check the two LED indicators on the front are working. Both lights should appear on. Note: under normal circumstances both the ‘power’ and ‘backup power’ lights should be on, indicating that the system is in dual redundant mode and backup power is available.
- Page 8 Datapath UK and Datapath North America Corporate Headquarters 2490 General Armistead Ave, Bemrose House, Bemrose Park, Suite 102, Norristown, Wayzgoose Drive, Derby, PA 19403, DE21 6XQ, United Kingdom +44 (0) 1332 294 441 +1 484 679 1553 sales-uk@datapath.co.uk sales-us@datapath.co.uk www.datapath.co.uk...
