- Page 1 User Guide 4K Quad Splitter Engineering the world’s best visual solutions...
-
Page 2: Table Of Contents
IQS4 4K Quad Splitter User Guide CONTENTS FCC COMPLIANCE IQS4 DECLARATION OF CONFORMITY INTRODUCTION Specification IQS4 4K Quad Splitter UNPACKING INSTALLATION System Requirements Mounting Options Procedure and Connections Front LED DISPLAY DRIVER CONFIGURATION TOOL (DDCT) DATAPATH LIMITED Technical Support Copyright Statement... -
Page 3: Fcc Compliance Iqs4
IQS4 4K Quad Splitter User Guide FCC COMPLIANCE IQS4 Federal Communications Commission Statement This device complies with FCC Rules Part 15. Operation is subject to the following two conditions: This device may not cause harmful interference. This device must accept any interference received, including interference that may cause undesired operation. -
Page 4: Declaration Of Conformity
IQS4 4K Quad Splitter User Guide DECLARATION OF CONFORMITY Per FCC Part 15.107 and 15.109 Class A Responsible Party Name: Datapath Limited Address: Bemrose Park, Wayzgoose Drive, Derby Phone: +44 (0) 1332 294 441 Hereby declares the product: IQS4 Product Name:... -
Page 5: Introduction

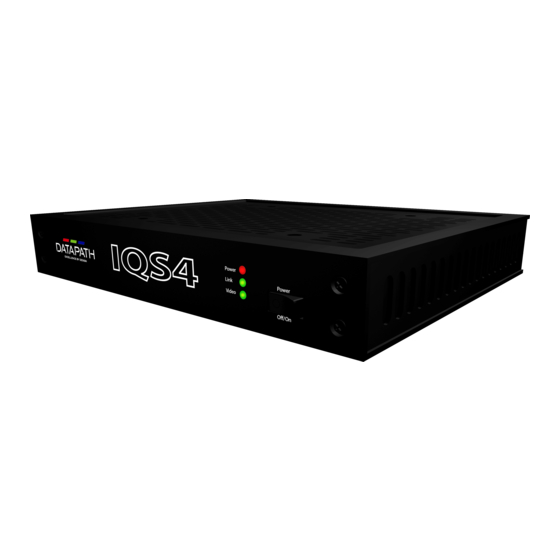

3 years (Optional 5 years) IQS4 4K Quad Splitter The IQS4 takes one single 4K output from an Image2K/ Image4K and splits it into four HD outputs. Using IQS4 units reduces the overall number of graphics cards needed in the video wall controller, which streamlines the system, reducing load and optimizing capacity. -
Page 6: Unpacking
4x M4 35mm screws. Note: All electronic products are static sensitive and packed in antistatic materials. Please keep the IQS4 in its packaging until you are ready to install. It is recommended that you do not discard the packing box until you are completely satisfied with the IQS4 Quad Splitter and it is fully installed and working correctly. -
Page 7: Installation
Image2K or Image4K Using VESA mount behind the screens. Each IQS4 has a VESA mount which enables the unit to be fixed to the rear of a display. Using additional rack mount. An additional kit allows the splitter to be rack mounted in conjunction with the video wall controller and any other equipment. -
Page 8: Procedure And Connections
IQS4 4K Quad Splitter User Guide Procedure and Connections Connect the output of the graphics card to the input socket on the rear of the IQS4 using an HDMI cable. Ensure the cable is secured into the IQS4 input connector. If possible, use the supplied cable lock. -
Page 9: Front Led
IQS4 4K Quad Splitter User Guide Front LED The IQS4 includes three front panel LEDs for device status INFO Power Powe r Powe r Powe r L i nk L i nk Vi deo Vi deo O /O n O /O n POWER –... -
Page 10: Display Driver Configuration Tool (Ddct)
IQS4 4K Quad Splitter User Guide DISPLAY DRIVER CONFIGURATION TOOL (DDCT) The configuration and setup of the IQS4 is done through the Display Driver Configuration Tool (DDCT), the same tool is used for the design, configuration and creation of the video wall. - Page 11 IQS4 4K Quad Splitter User Guide Follow the instructions on the application to complete the process (or check the User Guide included with your graphics cards). Once added to the wall, split outputs can be arranged and ordered in any way. The do not have to stay grouped together, as the driver ensures the correct content (wall section) is sent to the correct split/quadrant on each output.
-
Page 12: Datapath Limited
IQS4 4K Quad Splitter User Guide DATAPATH LIMITED Datapath has a long and very successful history in the computer graphics industry. Datapath has been designing and supplying high performance, high quality graphics display systems to the world’s largest and most demanding companies and institutions since 1982. -
Page 13: Copyright Statement
Copyright Statement © Datapath Ltd., England 2021. Datapath Limited claims copyright on this documentation. No part of this documentation may be reproduced, released, disclosed, stored in any electronic format, or used in whole or in part for any purpose other than stated herein without the express permission of Datapath Limited. -
Page 14: Index
IQS4 4K Quad Splitter User Guide INDEX Add Displays Operating Temperature Unpacking Copyright Statement Power Requirements VESA Mount Premium Certified HDMI Cables 8 Video Input Connections Display Driver Configuration Procedure and Connections Video Output Connections Display Driver Product Name Configuration Tool... - Page 15 IQS4 4K Quad Splitter User Guide NOTES...
- Page 16 Datapath UK and Corporate Headquarters Bemrose House, Bemrose Park, Wayzgoose Drive, Derby, DE21 6XQ, United Kingdom +44 (0) 1332 294 441 sales-uk@datapath.co.uk Datapath North America 2490 General Armistead Avenue, Suite 102, Norristown, PA 19403, USA +1 484 679 1553 sales-us@datapath.co.uk...
