LOCATION OF CONTROLS
!4 !5
THIS DEVICE COMPLIES WITH PART 15 OF THE
FCC RULES. OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS: (1) THIS DEVICE
MAY NOT CAUSE HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE
RECEIVED, INCLUDING INTERFERENCE THAT MAY
CAUSE UNDESIRED OPERATION.
a
q
e r
Power
On Off
Volume Brilliance
8 I 8 II
Min Max Mellow Bright Demo
w t y u
[Parts List of Panel View]
No. Part No. Part Name
q
22495576 A S-BUTTON LX BLK
w
# 71129867 POWER SW ASSY
e
22485188 M R-KNOB MF BLK
r
# 01678578 POT DUST COVER
t
13289178 VR RK14K12C 10KB L=4.5
y
01232190 VR RK14K1230 10KB CC
u
00348490 LED SLR-325VCT31
01340290 TACT SWITCH EVQ11A H=5.0
i
00900178 D S-KEYTOP SD4H BLK
o
00900145 D S-KEYTOP SD1H BLK
01340290 TACT SWITCH EVQ11A H=5.0
00348490 LED SLR-325VCT31
!0
00900189 D S-KEYTOP SX1H BLK
01340290 TACT SWITCH EVQ11A H=5.0
!1
00453223 LED SPACER LDS-70G
!2
00124601 LED LN282RPX
!3
13289185 VR RK11K1130 10KB LM1-15
!4
13429676 MIDI CONNECTOR YKF51-5048
!5
# 01671345 VR RK09K1110 CC
!6
13449283 6.5MM JACK HLJ7101-01-3010
!7
00125023 AC INLET PWI1818 (INL-7) 10A/250V 3P
!8
# 01672201 JACK BOARD HOLDER

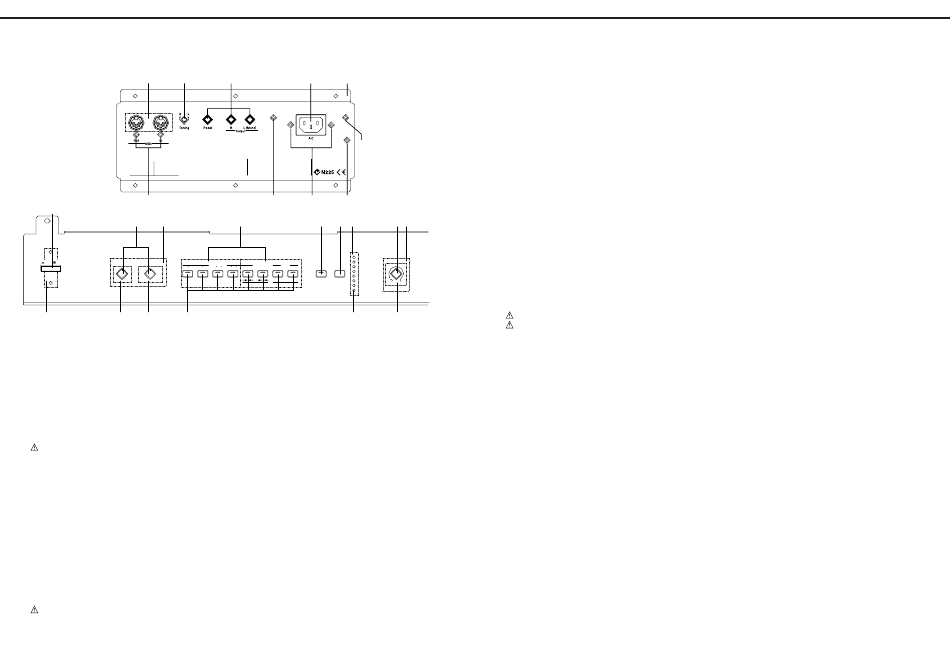

/パネル配置図
!6 !7 !8
b
THIS CLASS B DIGITAL APPARATUS MEETS ALL
REQUIREMENTS OF THE CANADIAN INTERFERENCE-
CAUSING EQUIPMENT REGULATIONS.
CET APPAREIL NUMÉRIQUE DE LA CLASSE B
RESPECTE TOUTES LES EXIGENCES DU RÈGLEMENT
SUR LE MATÉRIEL BROUILLEUR DU CANADA.
b c d
i o !0 !1
Equal
Werckmeister
Harpsichord Organ
Baroque Tempera-
8 + 8 8 + 4 Kirnberger
Lute Celesta I II Pitch ment
Vallotti
Meantone
Min
Pedal Down Up Function Pythagorean
Mode
Off
Detune Octave Shift
Just Major
Just Minor
!2
a
40011312 BINDING TAPTITE P 3×8 BZC
b
40010245 BINDING MACHINE SCREW M3×6 BZC
c
40012490 BINDING TAPTITE P 4×10 BZC
d
40010334 BINDING MACHINE SCREW M4×8 BZC
40011745 SPRING NUT M4 ZC
EXPLODED VIEW PARTS LIST
[Parts List]
No. Part No.
q
# 71239501
w
# 71239423
e
# 71239478
r
# 71239467
t
# 71239434
y # 71238490
u
# 71239389
i
# 71239490
o
# 71238467
!0
# 71239412
!1 # 71129890
!2
# 71239489
!3
# 01670634
!4
# 71238578
er
!5
# 71239445
!6
# 01671489
!7
12359103
!8 # 01780156
Reverb
!9
# 71239456
@0
# 71238489
Max
@1
# 01678912
@2
22275312
@3 # 71232312
!3 @4
01348434
@5
22415596
@6
# 01671678
@7
# 71238478
@8
# 01674101
@9
22205156
#0 # 01670645
#1
# 01671423
#2
# 01671690
#3
# 01671434
#4
# 01672189
#5 22325182
2
/分解図パーツリスト
[Screw]
Part Name No. Part No.
A
TOP COVER ASSY 40011612
b
LONG PROP ASSY 40019478
c
MUSIC REST ASSY 40017634
d
GRILLE BRD ASSY 40125578
e
REAR PNL L ASSY 40012101
f
TOP BOARD ASSY 40010334
g
SIDEPANEL R ASSY 40010790
h
END BLOCK R ASSY 40010778
i
BLIND ASSY 40012867
j
LOCK RAIL ASSY 40011056
k
SK-861-M KEYBOARD ASSY 40012134
l
END BLOCK L ASSY 40128512
m
FRONT PANEL 40013023
SIDEPANEL L ASSY
REAR PNL S ASSY
HINGE T-37
FOOT SJ-5003
COLLAR BUSHING TA-329 94V-0
SHORT PROP ASSY
TOP BAR ASSY
PWB COVER
SPEAKER COVER
BAFFLE BRD ASSY
TWEETER TW-5105C
FULL-RANGE CF160138-01 6 OHM/20W
HOLDER A
CENTER BRD ASSY CB
HOLDER B
HOLDER A
KEY FELT
LOCK RAIL FELT
TOP BOARD HOLDER A
TOP BOARD FELT
TOP BOARD HOLDER B
MR HINGE ASSY
Dec.1998
Part Name
OVAL WOOD SCREW 3.1×16 BZC
FLAT TAPPING A 3×12 BZC
TRUSS TAPPING A 4×40 BZC
FLAT TAPPING A 4×30 BZC
TRUSS TAPPING A 4×14 ZC
BINDING MACHINE SCREW M4×8 BZC
BINDING TAPPING A 3×16 BZC
BINDING TAPPING A 3×8 BZC
PAN MACHINE SCREW W/SW+PW M3×8 ZC
BINDING TAPTITE B 3×6 ZC
TRUSS TAPPING A 4×30 ZC
PAN WASHER HEAD TAPTITE B 4×25 BZC
PAN MACHINE SCREW W/SW+PW M4×25 BZC
