RollSeal RS-500 WIC Training Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
RS-500 WIC, RS-500M, and RS-600M Door Training Guide
NOTICE: If you encounter any issues that cannot be resolved using the information in this document, contact
RollSeal at 1-888-765-5732.

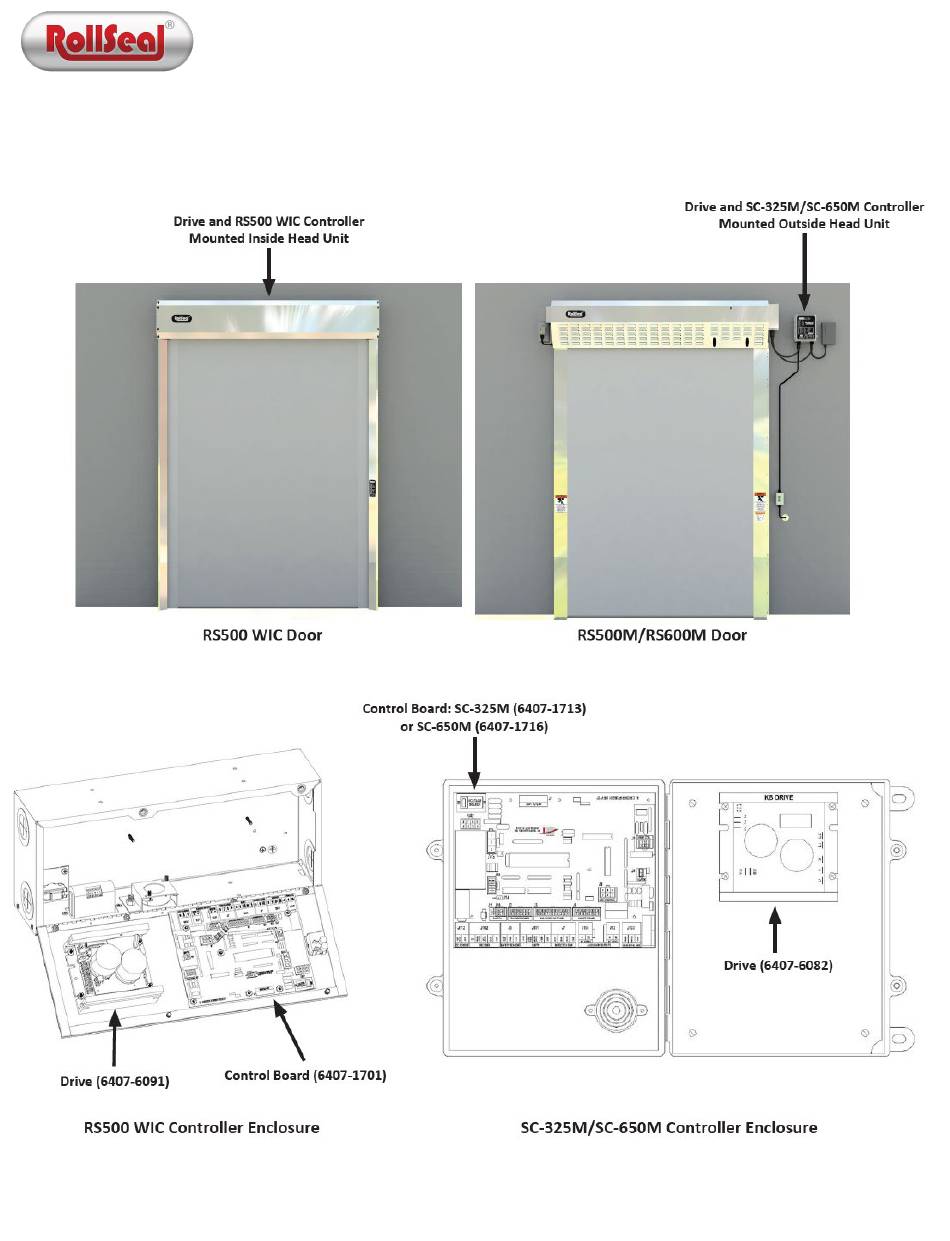

Section 1: Comparison of RS-500 Walk-In Cooler (WIC) Door and RS-500M/RS-600M Door

Section 2: Controller Enclosure Comparison

4802-7536C
1
15 November 2021

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RS-500 WIC and is the answer not in the manual?

Questions and answers

Related Manuals for RollSeal RS-500 WIC

Summary of Contents for RollSeal RS-500 WIC

  • Page 1: Section 1: Comparison Of Rs-500 Walk-In Cooler (Wic) Door And Rs-500M/Rs-600M Door

    RS-500 WIC, RS-500M, and RS-600M Door Training Guide NOTICE: If you encounter any issues that cannot be resolved using the information in this document, contact RollSeal at 1-888-765-5732. Section 1: Comparison of RS-500 Walk-In Cooler (WIC) Door and RS-500M/RS-600M Door...

  • Page 2: Section 3: Door Wiring Diagrams

    RS-500 WIC, RS-500M, and RS-600M Door Training Guide Section 3: Door Wiring Diagrams 3.1: RS-500 WIC Door 4802-7536C 15 November 2021...
  • Page 3 RS-500 WIC, RS-500M, and RS-600M Door Training Guide 3.2: RS-500M/RS-600M Door 4802-7536C 15 November 2021...

  • Page 4: Section 3: Jog Mode

    RS-500 WIC, RS-500M, and RS-600M Door Training Guide Section 3: Jog Mode Jog Mode bypasses all switches and safeties, allowing the operator to manually control the position of the door using the Up and Down arrow buttons beside the Mode button (not the Open/Close switch on the Smart Controller). Press the Up and Down arrows simultaneously for [5] seconds;...

  • Page 5: Section 5: Program Parameters

    RS-500 WIC, RS-500M, and RS-600M Door Training Guide Section 5: Program Parameters Parameter Definition Default Value Close Time Delay (Seconds) Deceleration Range Warning Output Function 0 – Door Movement/About to Close 1 – Sequential Interlock 0 – Door Movement/About to Close 2 –...

  • Page 6: Section 7: Error Codes And Recommended Actions

    RS-500 WIC, RS-500M, and RS-600M Door Training Guide Section 7: Error Codes and Recommended Actions RS-500 WIC/WIF Door Switch LED Panel Code Condition Problem Area Recommended Action(s) Error Code Movement Opening; Home Switch Tripped Ensure harness connectors are secure and Home Switch Closing;...

  • Page 7: Section 8: Smart Switch Indicator Lights

     If the door jogs, the door assembly brake relay is defective. • If the door does not jog, contact RollSeal (1-888-765-5732) while remaining at the door. • If the door jogs: Check the connections on the black and gray cable (CPCs at head unit).

  • Page 8: Section 9: Drive Board Diagnostics Leds

    Stop Switch (if Present) NOTICE: Safety beams are the primary safety for both RS-500 WIC doors and RS-500M/RS-600M doors. RS-500 WIC doors use a FLY sensor as an auxiliary safety. RS-500M/RS-600M doors use an egress strap as an auxiliary safety.

  • Page 9: Section 10: Condensation Management System Diagnostics

    RS-500 WIC, RS-500M, and RS-600M Door Training Guide Door Idle Power LED Status LED Condition Possible Cause(s) A/C power is not applied. Drive is off. Drive is defective. Solid Yellow Operation is normal. Quickly Flashing Red and AC input is under voltage.
  • Page 10 RS-500 WIC, RS-500M, and RS-600M Door Training Guide The LEDs at the top-left corner of the PCB 204 provide greater detail about the status of the Condensation Management System. Color Cause Power Green Input power is being supplied to the PCB 204.
