Ikelite 6114.50 Instruction Manual

Ikelite Digital Housing
i n s t r u c t i o n m a n u a l
# # 6 6 1 1 1 1 4 4 . . 5 5 0 0 f f o o r r S S o o n n y y D D S S C C - - W W 5 5 0 0 , , W W 7 7 0 0
Congratulations on your purchase of an Ikelite Digital Camera
Housing. Ikelite has over 45 years of experience in the underwater
photographic and lighting market. Our products are designed and
built in the USA by Ikelite for both the professional and amateur
photographer.
The clear housing permits instant visual inspection of the camera
and all sealing surfaces as well as complete monitoring of controls
and camera LCD screens.
Ikelite Digital Housings are slightly negative in salt water for
stability. This housing has been water pressure tested at the
factory to 200' (60m).

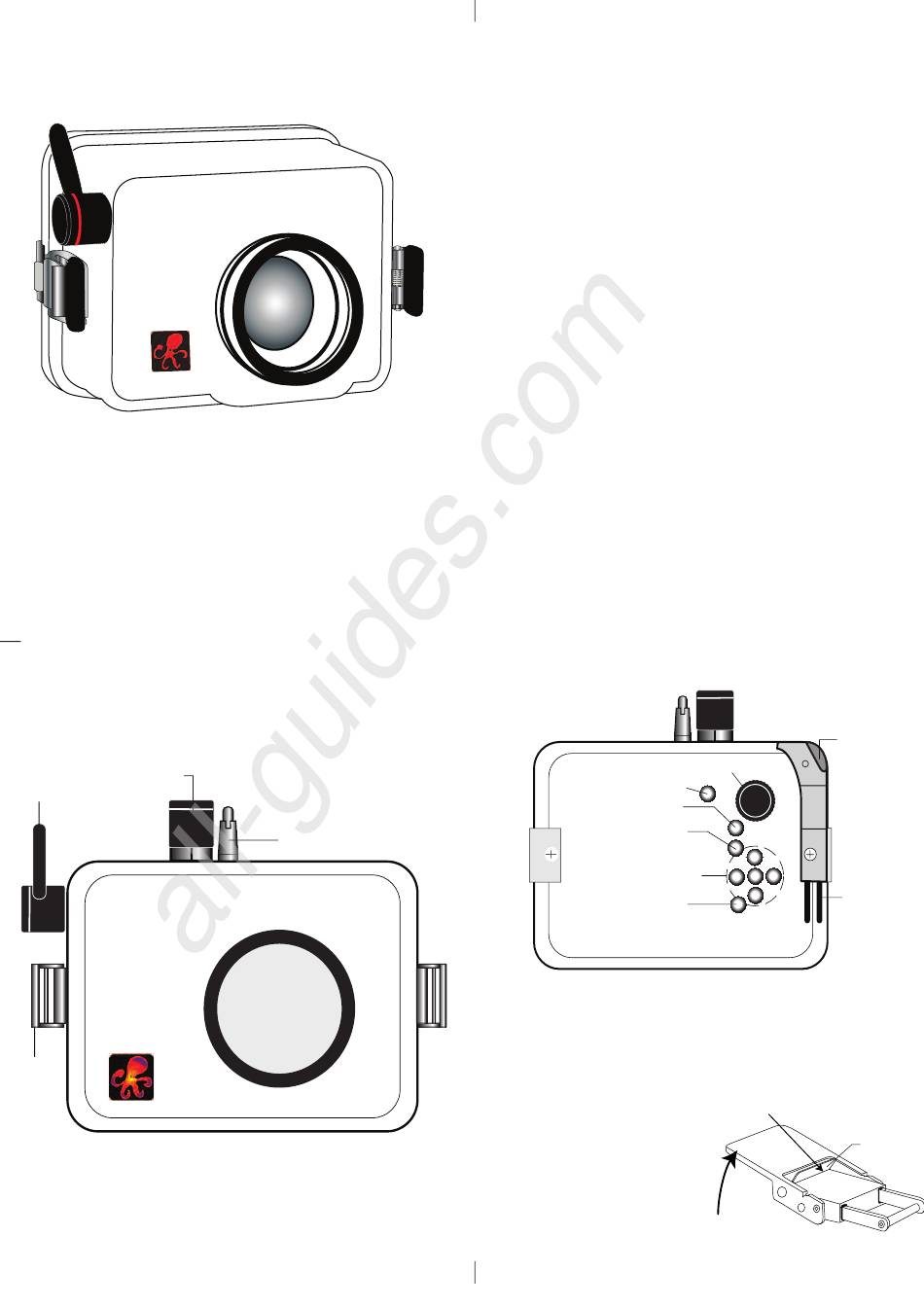

H H o o u u s s i i n n g g C C o o n n t t r r o o l l s s
Shutter
Zoom
Release
Lid
Snap
Front View
All manuals and user guides at all-guides.com
Power
Lens
Port
3
P P l l e e a a s s e e R R e e a a d d
We suggest that you read this instruction booklet thoroughly
before use. If you are new to underwater photography, be sure
to read the General and Photo Tips sections.
We also suggest that you read the camera manual thoroughly
to have a full understanding of where each camera control is
located and what function each control provides.
P P l l e e a a s s e e R R e e a a d d I I f f U U s s i i n n g g a a n n E E V V - - C C o o n n t t r r o o l l l l e e r r
The EV-Controller used with Ikelite DS Substrobes has two user
settings. One setting is for strobe selection, the other is for
pre-flash or non pre-flash. T T h h i i s s c c a a m m e e r r a a u u s s e e s s p p r r e e - - f f l l a a s s h h , thus the
EV-Controller should be set to the pre-flash position when used
with this camera.
I I n n i i t t i i a a l l C C a a m m e e r r a a S S e e t t u u p p
1. Set AF Illuminator to "Off".
2. Set camera to "P" Program Auto Mode.
3. Set Flash to forced "On" (lightning bolt in LCD).
4. Set ISO to "80".
5. Set White Balance to "Auto".
6 Set Metering Mode to "Center".
7. Set Focus to "Center AF".
8. Set Red Eye Reduction to "Off".
H H o o u u s s i i n n g g C C o o n n t t r r o o l l s s ( ( c c o o n n t t . . ) )
Playback
Display
Menu
Control Button
Delete/Image Size
Back View
O O p p e e n n i i n n g g t t h h e e H H o o u u s s i i n n g g
1. Lid Snaps have a L L o o c c k k . To open, push each Lid Snap Lock
forward and lift as shown. Keep pressure on the Lid Snap so
that it does not fly open
quickly.
Some lid snaps have a lot of
spring tension once they go
over center, so keep a firm
grip on the lid snap. Lid
snaps may be opened one at
a time or simultaneously.
2
Thumb
Rest
Mode
Lanyard
Push Forward
Lid Snap Lock
Lift
