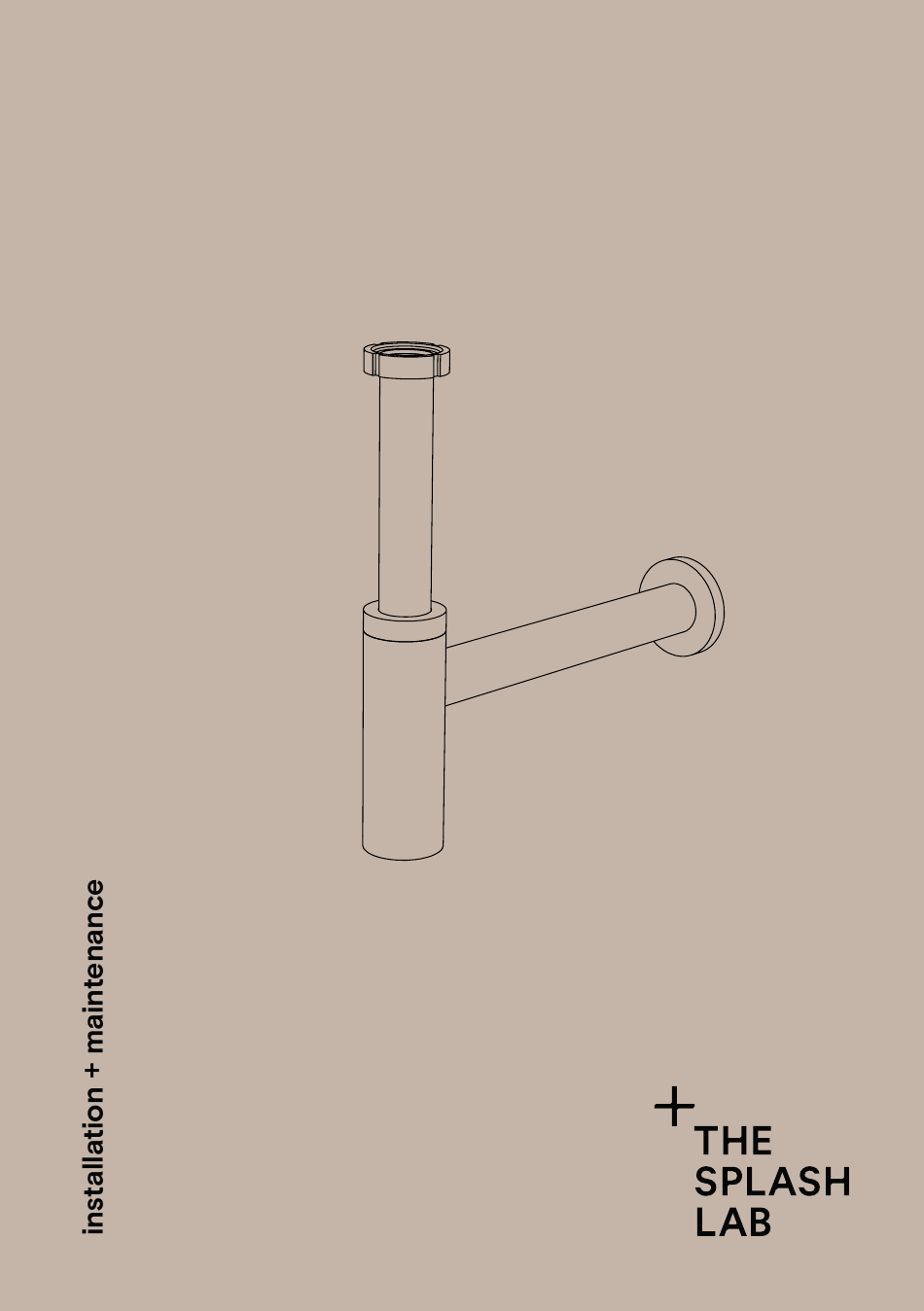

- Page 1 TSL.650 Waste Trap...
- Page 2 contents Safety and Warnings Box Contents Technical Data Before You Install How to Install Commissioning The Complete System Maintenance Cleaning Troubleshooting Warranty Spare Parts / Accessories Contact Details TSL-650 WASTE TRAP MANUAL...
- Page 3 TSL-650 waste trap Read and save these instructions WARNING Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer (see back page for more details). Ensure plumbing is installed correctly before activating water supply. All plumbing is to be installed in accordance with applicable codes and regulations.
-
Page 4: Box Contents
box contents Main body Internal waste trap tube Adjustable inlet tube Plain fixing nut Notched fixing nut O-ring Flat rubber washer Wall bezel TSL-650 WASTE TRAP MANUAL... - Page 5 diagram TSL-650 WASTE TRAP MANUAL...
-
Page 6: Technical Data
technical data Overview The stainless steel bottle trap with a removable discharge connection is designed for the purpose of allowing water to drain away from the basin, which requires no action by the user. Codes Finishes Light Reflectance Value (LRV) TSL-650CS Brushed Stainless Steel TSL-650CP... -
Page 7: Before You Install
before you install Caution The TSL650 parts must be put together correctly before installation. All parts must be installed correctly before powering up the system. Ensure that connection is to 1 ¼” standard waste pipe. Ensure that the thread on the basin waste fitting is clear for trap to be screwed tight and connection sealed. - Page 8 before you install Access Requirements It is critical all components which require fixing behind the wall are easily accessible at all times during installation and routine maintenance. Wall Cavity: A minimum cavity depth of 100mm is recommended to ensure enough clearance for installing drainage components and connecting to mains drainage.
-
Page 9: How To Install
how to install Tap Installation Drill a Ø50mm hole through the Unscrew plain fixing nut and slide internal mounting surface and into the wall cavity. waste trap tube into body of waste trap. The wall bezel can also be placed onto the back of the main body at this point. - Page 10 Tap Installation Feed the back of the waste trap through Place flat washer within the notched the wall and connect it up with the nut, and screw onto basin waste thread. pipework within the cavity. The washer should be between the adjustable inlet tube and the basin waste.
-
Page 11: Maintenance
maintenance For regular maintenance, the trap should be inspected periodically for any blockages. Hairs and other obstructions should be removed from the trap to ensure that water drains away. The removable cover at the base of the trap can be unscrewed for access to clear the debris. - Page 12 If further information is required, contact The Splash Lab technical team for more detailed stainless steel care guidelines. TSL-650 WASTE TRAP MANUAL...
-
Page 13: Warranty
Waste trap: 2 years parts & labour If a defect is found in normal use, The Splash Lab will, at their discretion, repair, provide a replacement part or product, or make appropriate adjustments. Damage caused by accident, misuse, or abuse is not covered by this warranty. Improper care and cleaning will void the warranty. - Page 14 contact General information info@thesplashlab.com +44 (0) 161 482 7000 Technical support technical@thesplashlab.com For further contact information visit: www.thesplashlab.com TSL-650 WASTE TRAP MANUAL...
