Installation Guide

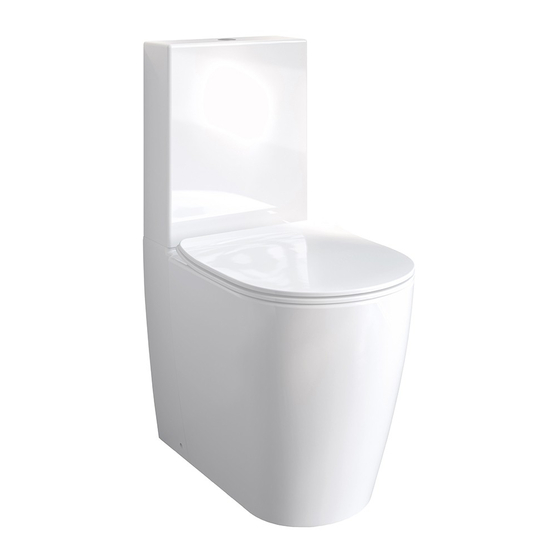

SynergiiOne Back Inlet Toilet Suite
SY04137 & SY04147

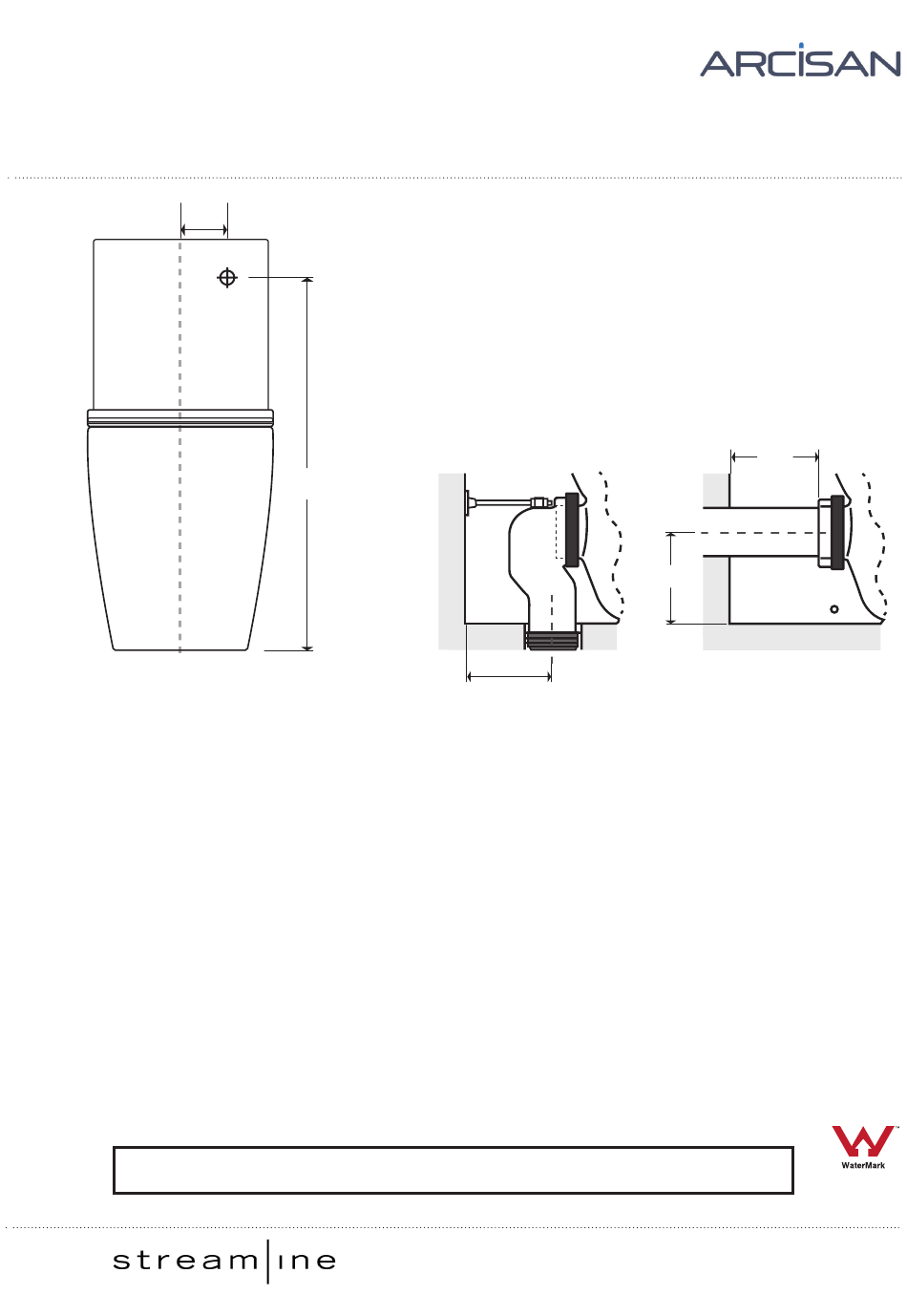

Front view
www.streamlineproducts.com.au | Ph: 1300 735 352
70
800
Please leave the instructions with the owner.
80-200
Optional elbow for set out 160-220mm (JT34)
This SynergiiOne Back Inlet Toilet Suite is designed for right hand
inlet installation. A 1/2" male thread will need to be plumbed in at
the location shown.
The standard set-out for a S-Trap is 80-200mm.
All distances are from final floor or finished wall.
The installer will need to supply the right angle stop tap.
This product installation must comply to AS/NZS 3500.
Dimensions are in millimeters and are subject to manufacturing variations. Streamline reserves
the right to vary specifications at any time without notice. Information provided within this
installation sheet is correct at the date of printing.
Version: 1.0 - September 2020
210
185
WM-022487
AS1172
ARCISAN
1
Advertisement
Table of Contents
Related Manuals for Streamline Arcisan SynergiiOne SY04137
Summary of Contents for Streamline Arcisan SynergiiOne SY04137
- Page 1 ARCISAN This product installation must comply to AS/NZS 3500. Dimensions are in millimeters and are subject to manufacturing variations. Streamline reserves the right to vary specifications at any time without notice. Information provided within this installation sheet is correct at the date of printing.
- Page 2 Place the pan in position ensuring it is centred in Remove pan, drill holes for fixing bolts and attach brackets. accordance with the centre line of the outlet. Mark location of pan fixing bolts. For S Trap installation, cut horizontal pipe to required length Attach pan bolts, into holes, as shown.
- Page 3 Remove inlet mechanism. Locate the cistern onto the pan. Screw down by hand until tight to ensure a seal between the Fit outlet seal to bottom of outlet mechanism. Do not place bolt head and the bottom of the cistern. The cistern should sit outlet seal on pan and then sit cistern on top! flush against the wall.
- Page 4 Push the plastic and metal washers as far down the screw as Seat Install: Insert fixing bolts into holes in the pan. possible, then finger tighten. Once you have positioned the seat in the desired position, Push seat onto the posts and close lid. Move the seat around open the lid and with an 8mm spanner, tighten the posts until until it is square with the pan.
