Installation Guide

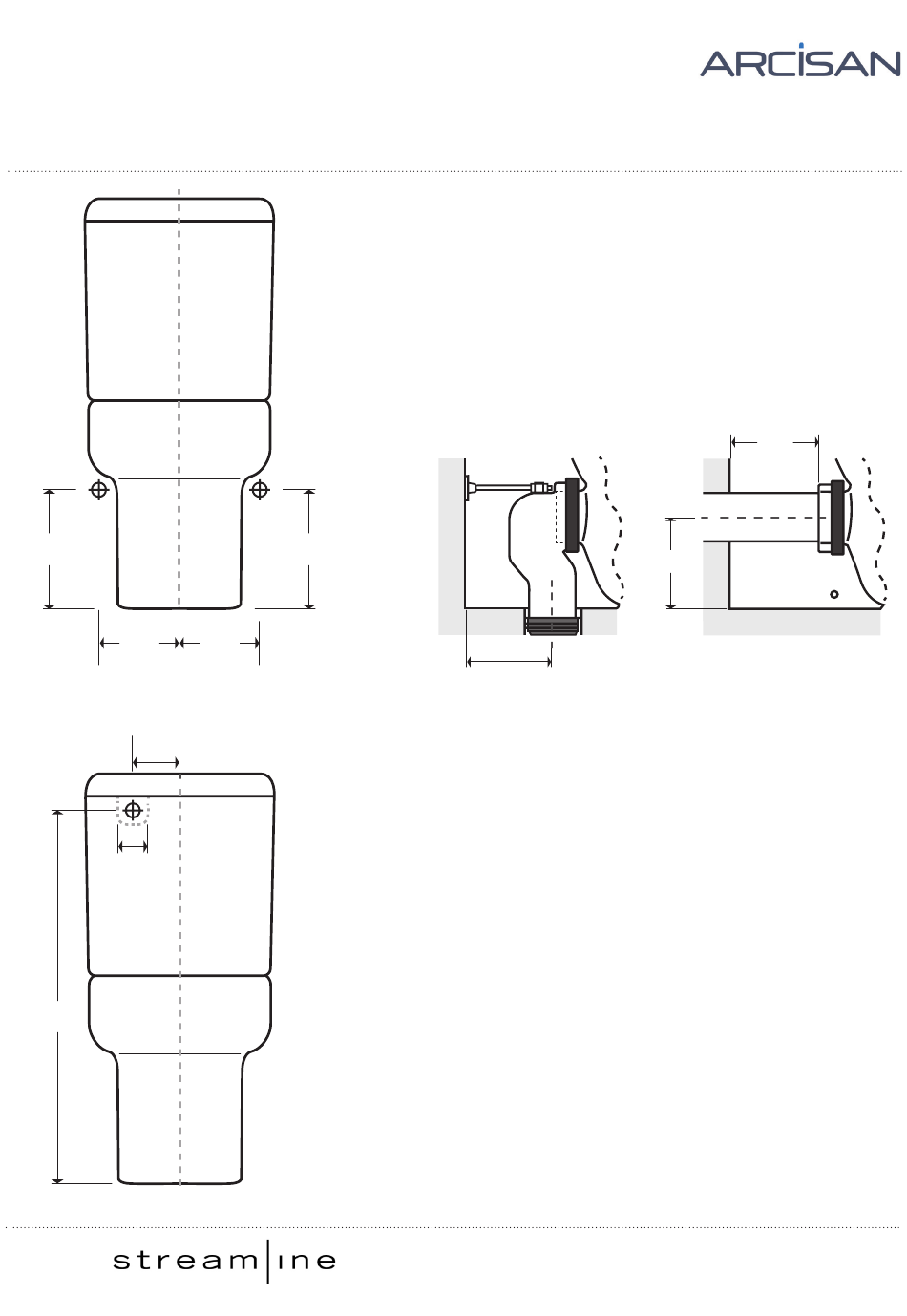

Kudos Dual Inlet/Outlet Toilet Suite
KU04118
Bottom
Inlet
A
190 max
170
min
125
Back
Inlet
65
B
745
www.streamlineproducts.com.au | Ph: 1300 735 352
190 max
170
min
110-160
Optional elbow for set out 160-220mm (JT34)
This Kudos Dual Inlet/Outlet Toilet Suite is designed for
a left or right hand bottom inlet installation.
A 1/2" male thread will need to be plumbed in at the
location shown.
The standard set-out for a S-Trap is 110-160mm.
All distances are from final floor or finished wall.
The installer will need to supply the stop tap.
For bottom inlet the installer will also need to supply
the flexible hose for connection between the inlet and
the stop tap.
A 500mm length flexible hose will suit most installations
but the required length is dependent on the position of
the stop tap.
Dimensions are in millimeters and are subject to manufacturing variations. Streamline
reserves the right to vary specifications at any time without notice. Information provided
within this installation sheet is correct at the date of printing. Please confirm all
particulars with your sales consultant prior to purchase.
Version: 1.1 - October 2016
165
185
1
Advertisement
Related Manuals for Streamline ARCISAN Kudos KU04118
Summary of Contents for Streamline ARCISAN Kudos KU04118
- Page 1 Dimensions are in millimeters and are subject to manufacturing variations. Streamline reserves the right to vary specifications at any time without notice. Information provided within this installation sheet is correct at the date of printing. Please confirm all particulars with your sales consultant prior to purchase.
- Page 2 Place the pan in position ensuring it is centred in accordance with the centre line of the outlet. Mark location of pan fixing bolts. Remove pan, drill holes for fixing bolts and attach brackets. For S Trap installation, cut horizontal pipe to required length and fit seal.
- Page 3 Bottom Inlet Remove bung plug and inlet mechanism. Attach 1/2” thread as shown. Connect flexible hose to bottom of cistern. Join the inlet mechanism hose Feed hose through hole in pan and locate the cistern onto the to the thread and replace inlet pan.
- Page 4 Insert buttons into the hole on the lid. Slide nut over the bottom Button Install: Remove nut. of the rods and tighten. Fill and check water. Replace lid and test. Screw in the post and gasket, lightly, into the plugs that have been inserted into the pan.
