MikroTik GPEN21 User Manual

7/30/2021
Pages / User Manuals / Accessories
GPEN21
GPEN21

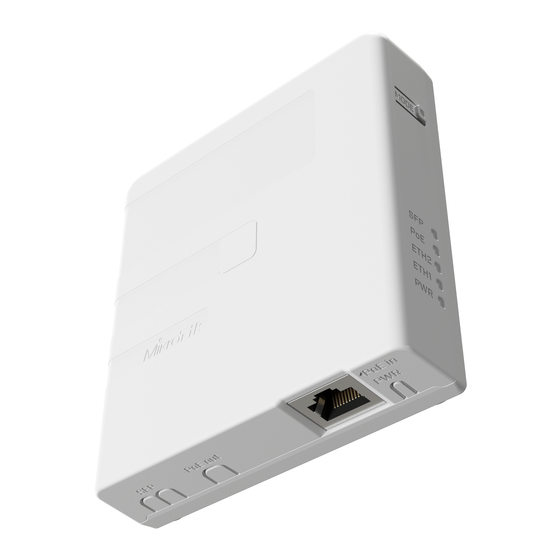

GPEN21 allows powering a PoE capable device over the Ethernet, using the same voltage, as provided with the DC input jack.

Powering

The device accepts power from a direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) 12-57 V DC⎓.
Max power consumption 50 W.

Power output

The device supports PoE out from the Ethernet port located under the cover. You can power Mikrotik devices that support passive powering through Ethernet.
GPEN21 has an Ethernet and SFP port for fiber connectivity. Customers can choose to use GPEN21 to power the optical module for uplink to provider, or to provide PoE to power
Ethernet uplink to the provider (that uses our GPeR and/or netPower products), which cannot be used together.

Mode button

Reserved for future use.

Mounting

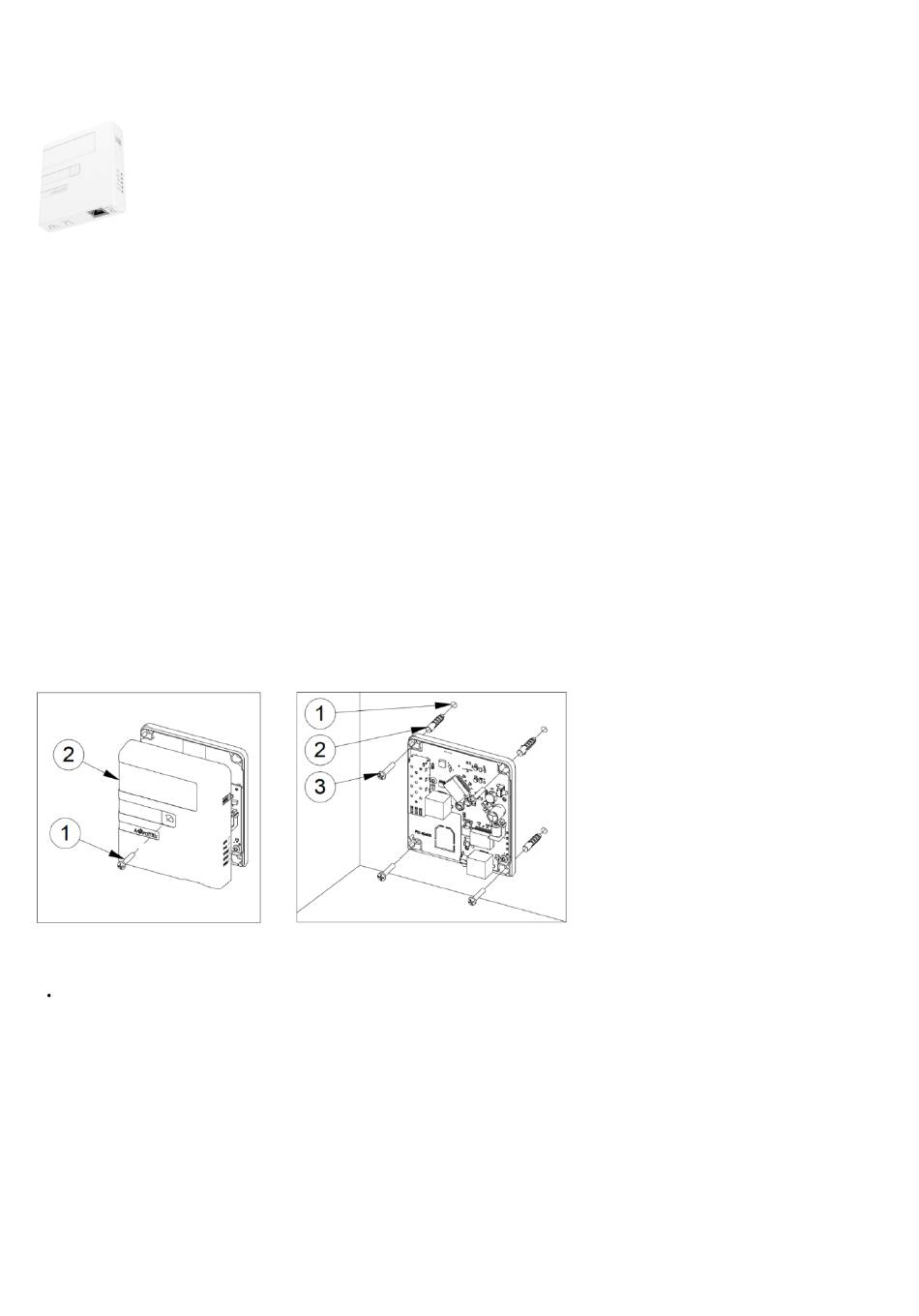

Step 1:
1. Remove the cover screw using a PH2 screwdriver;
2. Remove the cover to access mounting points.
Step 2:
1. Drill holes using drill bit;
2. Insert dowels if needed;
3. Attach the unit to the wall and secure it with screws.
Step 1.Step 2.
Step 3:
1. Plug in the Ethernet cable going to the unit that will be powered;
2. Plug in the power source for the GPEN.
Outgoing Ethernet cable can be guided through position A or B for cable leading into the wall.
Step 4:
1. Re-attach cover;
2. Secure cover using the screw;
3. Use the sticker to cover the screw location.
