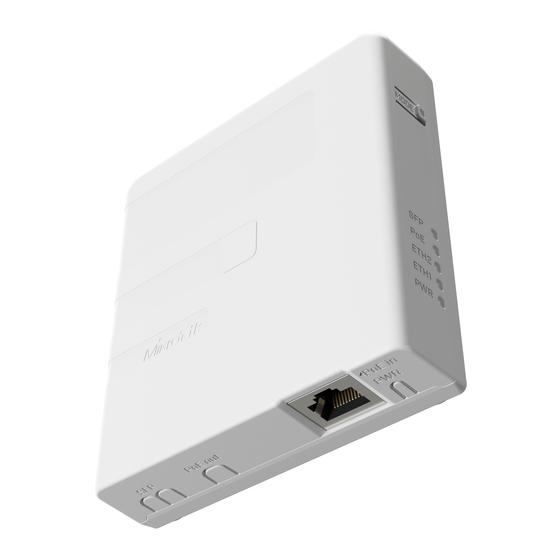

GPEN21
GPEN21
GPEN21 allows powering a PoE capable device over the Ethernet, using the same voltage, as provided with the DC input jack.
Powering
The device accepts power from direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) 12-57 V DC.
Max power consumption 50 W.
Power output
The device supports PoE out from the Ethernet port located under the cover. You can power Mikrotik devices that support passive powering through
Ethernet.
Mode button
Reserved for future use.
Mounting
Step 1:
1.
Remove the cover screw using PH2 screwdriver;
2.
Remove the cover to access mounting points.
Step 2:
1.
Drill holes using drill bit;
2.
Insert dowels if needed;
3.
Attach the unit to the wall and secure it with screws.
Advertisement
Table of Contents
Related Manuals for MikroTik GPEN21
Summary of Contents for MikroTik GPEN21
- Page 1 The device accepts power from direct-input power jack (5.5 mm outside and 2 mm inside, female, pin positive plug) 12-57 V DC. Max power consumption 50 W. Power output The device supports PoE out from the Ethernet port located under the cover. You can power Mikrotik devices that support passive powering through Ethernet. Mode button Reserved for future use.
- Page 2 Step 1.Step 2. Step 3: Plug in the Ethernet cable going to the unit that will be powered; Plug in power source for the GPEN. Outgoing Ethernet cable can be guided through position A or B for cable leading into the wall. Step 4: Re-attach cover;...
- Page 3 Accessories Package includes the following accessories that come with the device: K-62 screw kit includes four screws and dowels for mounting on the wall. Please visit wiki pages for MikroTik SFP module compatibility table: https://wiki.mikrotik.com/wiki/MikroTik_SFP_module_compatibility_table CE Declaration of Conformity Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
- Page 4 MT B'dan, Mikrotīkls SIA , niddikjara li dan it-tip ta' tagħmir tar-radju RouterBOARD huwa konformi mad-Direttiva 2014/53/UE. It-test kollu tad- dikjarazzjoni ta' konformità tal-UE huwa disponibbli f'dan l-indirizz tal-Internet li ġej: https://mikrotik.com/products NL Hierbij verklaar ik, Mikrotīkls SIA , dat het type radioapparatuur RouterBOARD conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU- conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: https://mikrotik.com/products...
