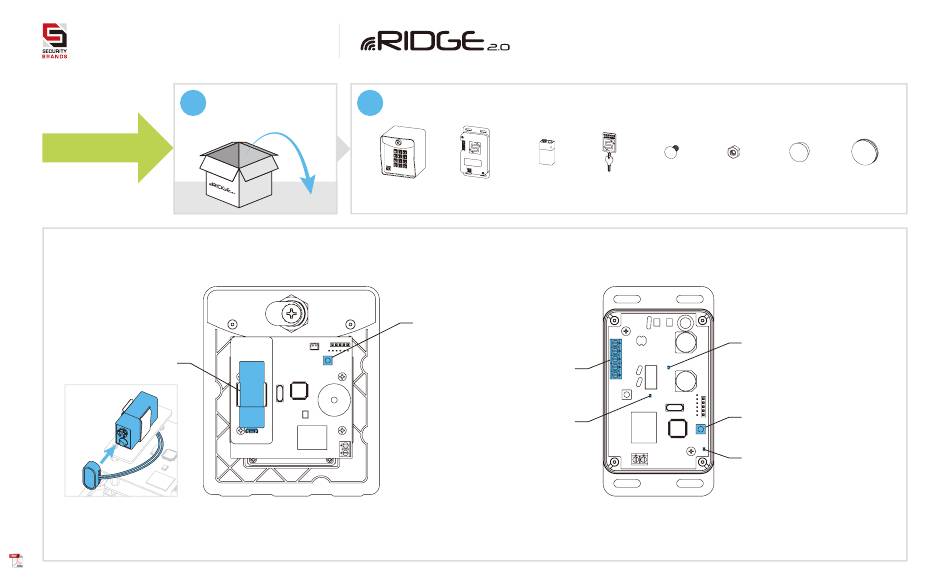

QUICK START
Carefully unpack box.
1
START HERE
What's what?
Important components labeled
9-V Battery
Must be installed before use
Internal wiring not shown for clarity.
G U I D E
Make sure you have all items shown here. (Screwdriver not shown)
2
Keypad Unit
Keypad Unit
Back of front panel shown.
Receiver
9-V Battery
Reset Button
For performing reset procedures
on keypad
Connection Terminals
For wiring to compatible
AC/DC power source and
gate operator or door opener
Relay Status LED
Indicates whether relay is
active or inactive
(Relay is active when lit)
Internal wiring not shown for clarity.
Key
Carriage Bolt
Hex Nut
( 4x )
( 4x )
Power LED
Indicates whether or not unit has power
Programming Button
For pairing receiver to keypad
Programming LED
Indicates status of pairing process
Receiver
Shown with cover removed.
1 of 6
Model
14-REC20
Hole Plug
Adhesive
Mounting Pad
