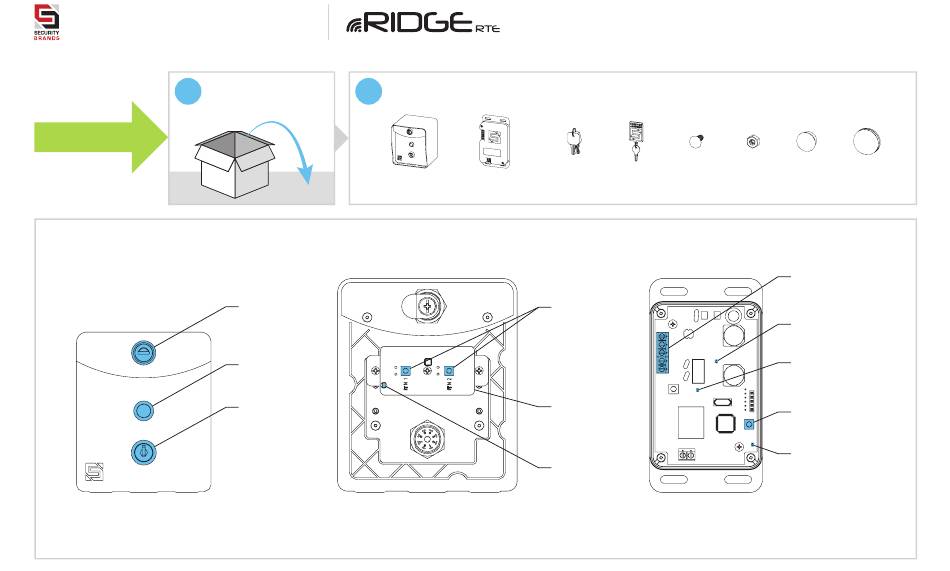

Q U I C K S T A R T
Carefully unpack box.
1

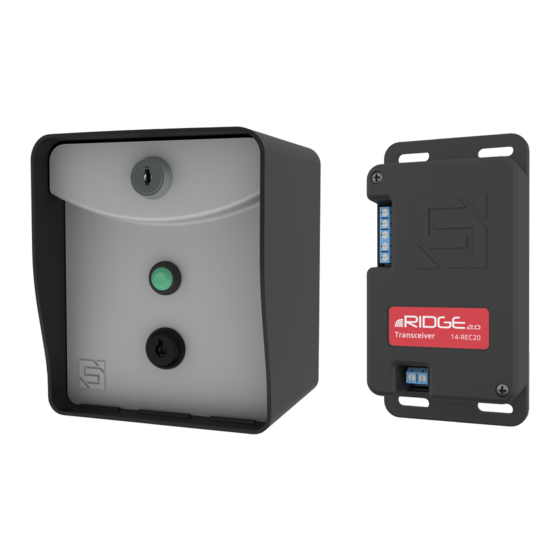

START HERE
What's what?
Important components labeled
RTE Unit Front Panel
(Front)
G U I D E
Make sure you have all items shown here. (Screwdriver not shown)
2
RTE Unit
(includes battery)
Lock
For securing interior
of RTE unit
Exit Button
Triggers gate/door
to open
Key Switch
For enabling and
disabling unit
(Unit is disabled as
shown)
RTE Unit Front Panel
Internal wiring not shown for clarity.
Transceiver Unit
Key Switch Keys
Lock Key
(may look different)
Pairing Buttons
For pairing RTE unit
with transceiver
CR2032 Battery
On underside of
circuit board
Status LED
Indicates
transmitting status
(Back)
Internal wiring not shown for clarity.
Model
Carriage Bolt
Hex Nut
Hole Plug
( 4x )
( 4x )
Connection Terminals
For wiring to compatible
AC/DC power source and
gate operator or door opener
Power LED
Indicates whether or
not unit has power
Relay Status LED
Indicates whether relay is
active or inactive
(Relay is active when lit)
Programming Button
For pairing transceiver
with RTE unit
Programming LED
Indicates status of
pairing process
Transceiver
Shown with cover removed.
1 of 4
14-RTE433
Adhesive
Mounting Pad
Advertisement
Table of Contents
Related Manuals for Security Brands RIDGE RTE 14-RTE433
Summary of Contents for Security Brands RIDGE RTE 14-RTE433
- Page 1 1 of 4 Q U I C K S T A R T G U I D E 14-RTE433 Model Carefully unpack box. Make sure you have all items shown here. (Screwdriver not shown) START HERE RTE Unit Transceiver Unit Key Switch Keys Lock Key Carriage Bolt...
- Page 2 Terminals vary widely across Terminals vary widely across Power Source Power Source manufacturers and models. manufacturers and models. (Not Included) (Not Included) ALWAYS USE SAFETY DEVICES! © 2021 Security Brands, Inc. All rights reserved. QSG-14RTE433-EN Rev. B (9/2021)
- Page 3 3 of 4 Q U I C K S T A R T G U I D E 14-RTE433 Model Remove transceiver cover; then Remove RTE unit front panel. Hold down both Pairing Buttons until Status LED hold down Programming button on flashes.
- Page 4 Q U I C K S T A R T G U I D E 14-RTE433 Model Notes Ridge RTE 14-RTE433 NEED HELP Call (972) 474-6390 Email techsupport@securitybrandsinc.com We are available Mon–Fri / 8am–5pm Central © 2021 Security Brands, Inc. All rights reserved. QSG-14RTE433-EN Rev. B (9/2021)
