User Manual
Terrestrial Multi Band Amplifier
MBA 435 N
Item-No: 57004327

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MBA 435 N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Electronics MBA 435 N

Summary of Contents for Delta Electronics MBA 435 N

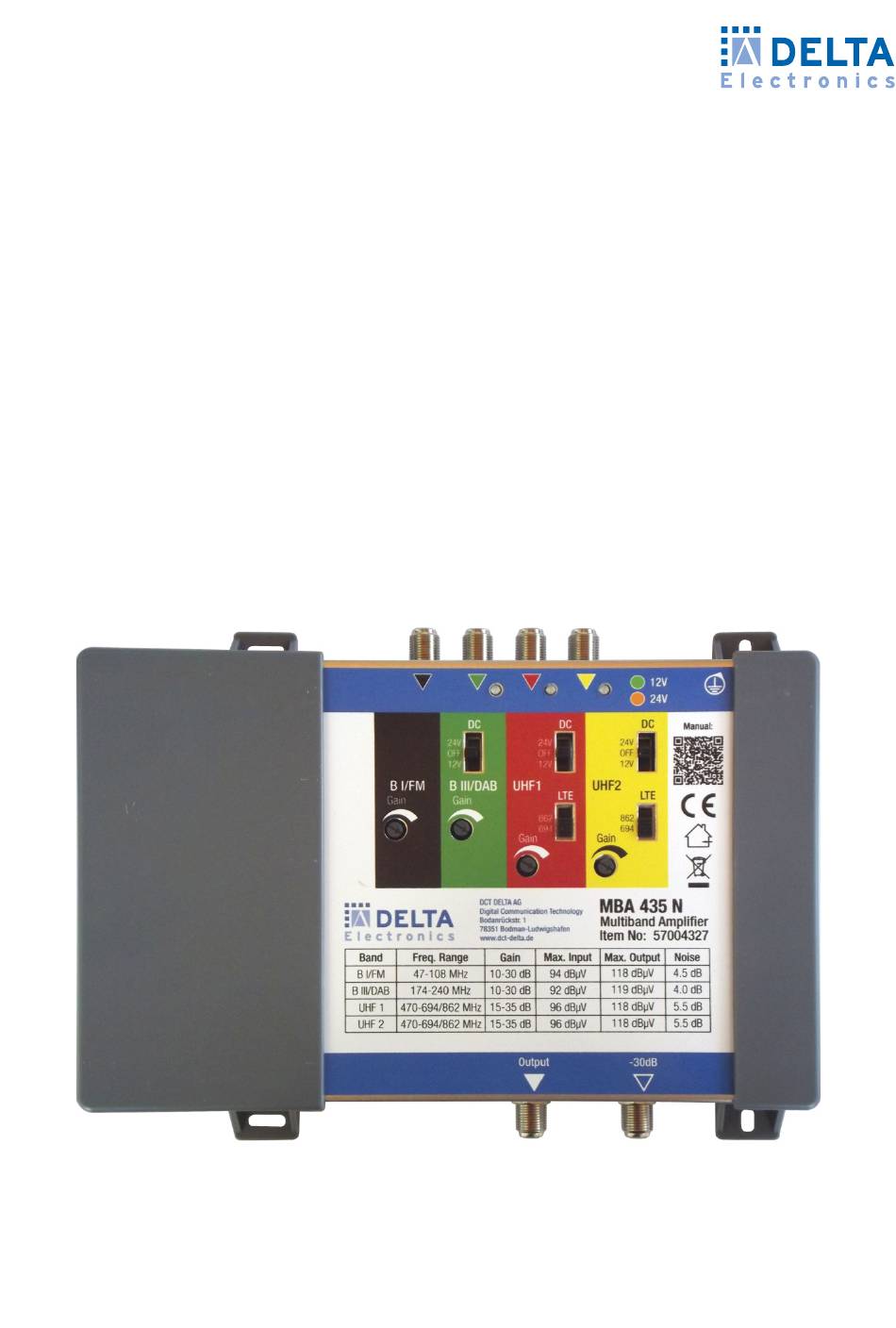

  • Page 1 User Manual Terrestrial Multi Band Amplifier MBA 435 N Item-No: 57004327...

  • Page 2: Table Of Contents

    Terrestrial Multi Band Amplifier MBA 435 N Content Introduction Product description Package Content Product Elements 2. Installation Configuration of the MBA 435 N FM Antenna Input DAB Antenna Input UHF 1 Antenna Input UHF 2 Antenna Input DC LEDs Grounding Clamp...

  • Page 3: Introduction

    1. Introduction Product Description The MBA 435 N has been designed to amplify terrestrial TV and radio signals for installations and distribution systems. The MBA 435 N has separate inputs for the different terrestrial frequency bands. The different signals can be levelled individually.

  • Page 4: Product Elements

    Terrestrial Multi Band Amplifier MBA 435 N Product Elements FM antenna input DAB antenna input UHF-1 antenna input UHF-2 antenna input DC LEDs Grounding Clamp DC Supply Switches Band Selection Switches Gain Adjustment Output Test Output (-30 dB)

  • Page 5: Installation

    Terrestrial Multi Band Amplifier MBA 435 N 2. Installation FM antenna DAB antenna UHF antenna UHF antenna Output Test point...

  • Page 6: Configuration Of The Mba 435 N

    Terrestrial Multi Band Amplifier MBA 435 N 3. Configuration of the MBA 435 N FM Antenna Input Connect the cable of a FM antenna (88 - 108 MHz) to this input. If the input is not connected, it must be terminated with a 75 Ohms resistor.

  • Page 7: Output

    Terrestrial Multi Band Amplifier MBA 435 N Output This output offers the combined signals of the different inputs. The signal level of 118 dBµV is sufficient to distribute the signal to several antenna sockets. You also can insert the combined signal on this output to the terrestrial input of satellite multi switches where it can be further distributed.

  • Page 8: Safety Notes

    Terrestrial Multi Band Amplifier MBA 435 N 5. Safety Notes Read the instructions carefully before you connect the device! To avoid fire, shortage or electrical shock: Never expose the product to rain or high humidity. · Install the device at a dry plae without water infiltration or condensation.

  • Page 9: Warranty Terms

    Hereby, DCT DELTA AG declares that the radio equipment type MBA 435 N is in compliance with directive 2014/53/EU. The complete text of the EU declaration of conformity is available at the following internet address: www.dct-delta.de/service/...
  • Page 10 Terrestrial Multi Band Amplifier MBA 435 N Notes...
  • Page 11 Terrestrial Multi Band Amplifier MBA 435 N Notes...
  • Page 12 DCT DELTA AG Digital Communication Technology Bodanrückstr. 1, 78351 Bodman, Germany Tel: +49773929258 Fax: +497773929259 Email : info@dct-delta.de www.dct-delta.de...
