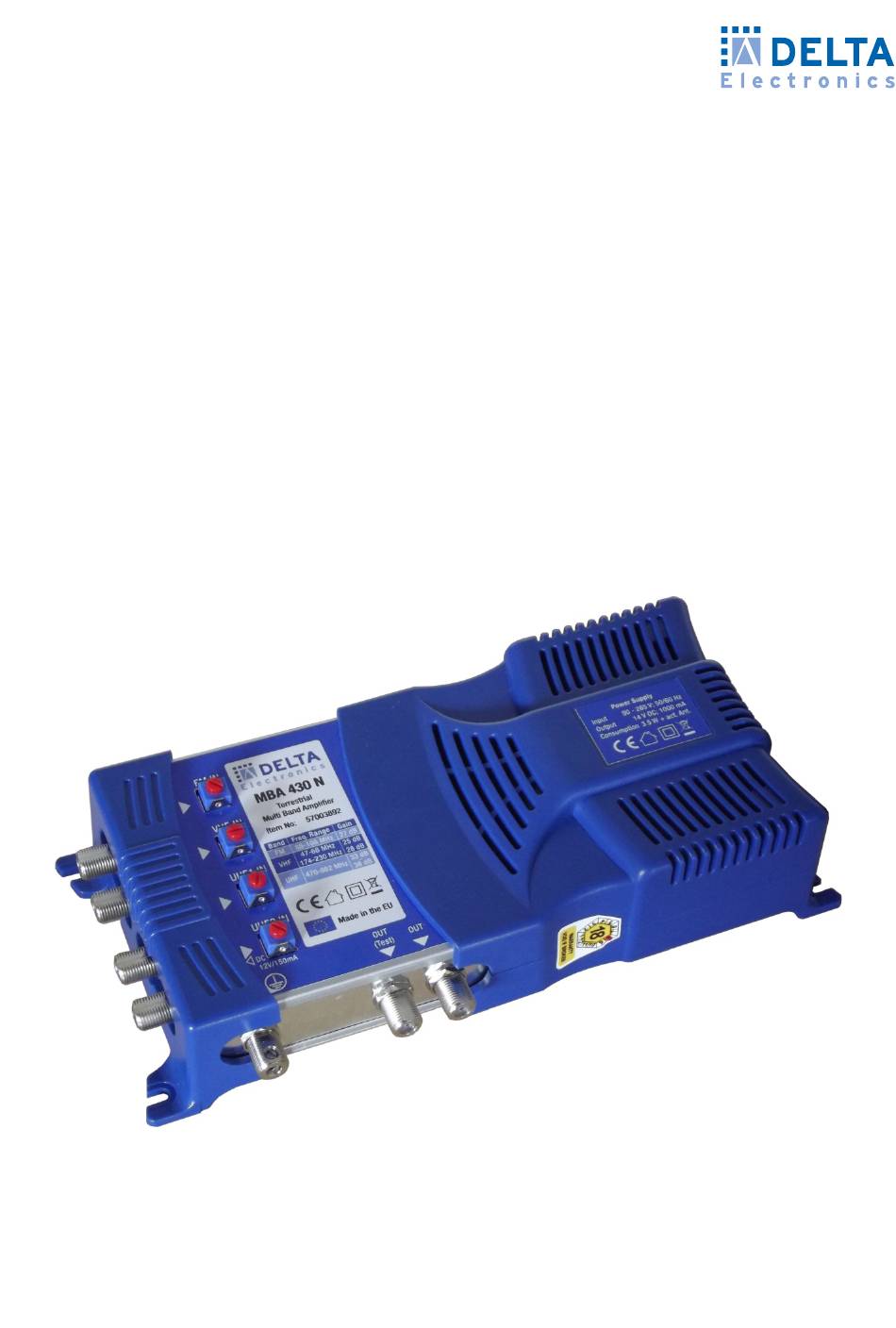

- Page 1 User Manual Terrestrial Multi Band Amplifier MBA 430 N Item-No: 57003892...
-
Page 2: Table Of Contents
Terrestrial Multi Band Amplifier MBA 430 N Content Introduction Product description Package Content Product Elements 2. Installation Configuration of the MBA 430 N FM Antenna Input VHF Antenna Input UHF 1 Antenna Input UHF 2 Antenna Input Earthing Connector Test Output (-30 dB) -
Page 3: Introduction
1. Introduction Product Description The MBA 430 N has been designed to amplify terrestrial TV and radio signals for installations and distribution systems. The MBA 430 N has separate inputs for the different terrestrial frequency bands. The different signals can be levelled individually. -
Page 4: Product Elements
Terrestrial Multi Band Amplifier MBA 430 N Product Elements Input for FM antenna Input for VHF antenna Input for UHF antenna Input for UHF antenna with preamplifier Earthing connector Test output (-30 dB) Output for antenna sockets or terrestrial input at multi switches... -
Page 5: Installation
Terrestrial Multi Band Amplifier MBA 430 N 2. Installation UHF antenna VHF antenna FM antenna UHF antenna with preamplifier Antenna sockets or terrestrial Input at multi switches Test point... -
Page 6: Configuration Of The Mba 430 N
Terrestrial Multi Band Amplifier MBA 430 N 3. Configuration of the MBA 430 N FM Antenna Input Connect the cable of a FM antenna (88 - 108 MHz) to this input. If the input is not connected, it must be terminated with a 75 Ohms resistor. -
Page 7: Technical Specification
Terrestrial Multi Band Amplifier MBA 430 N 4. Technical Specification MBA 430 N Amplifier Number of inputs Number of outputs 1 + 1 for signal measuring (-30 dB) VHF 47-68 MHz + 174-230 MHz Frequency range FM 88-108 MHz UHF 470 - 862 MHz... -
Page 8: Safety Notes
Terrestrial Multi Band Amplifier MBA 430 N 5. Safety Notes Read the instructions carefully before you connect the device! To avoid fire, shortage or electrical shock: Never expose the product to rain or high humidity. · Install the device at a dry plae without water infiltration or condensation. -
Page 9: Warranty Terms
Terrestrial Multi Band Amplifier MBA 430 N 6. Warranty Terms For a periode of 24 years after the purchase of the product, DCT DELTA AG garantees that it is free of material and production faults. In case the product turns out to be faulty during normal use within the warranty periode, DCT DELTA AG will repair or replace the product at ist own discretion. -
Page 10: Manual
Terrestrial Multi Band Amplifier MBA 430 N... -
Page 11: Manual
Terrestrial Multi Band Amplifier MBA 430 N Notes... -
Page 12: Manual
DCT DELTA AG Digital Communication Technology Bodanrückstr. 1, 78351 Bodman, Germany Tel: +49773929258 Fax: +497773929259 Email : info@dct-delta.de www.dct-delta.de...
