User Manual
Wideband-Amplifier
WBV 220 PRO
Art. Nr: 57004068

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WBV 220 PRO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Delta Electronics WBV 220 PRO

Summary of Contents for Delta Electronics WBV 220 PRO

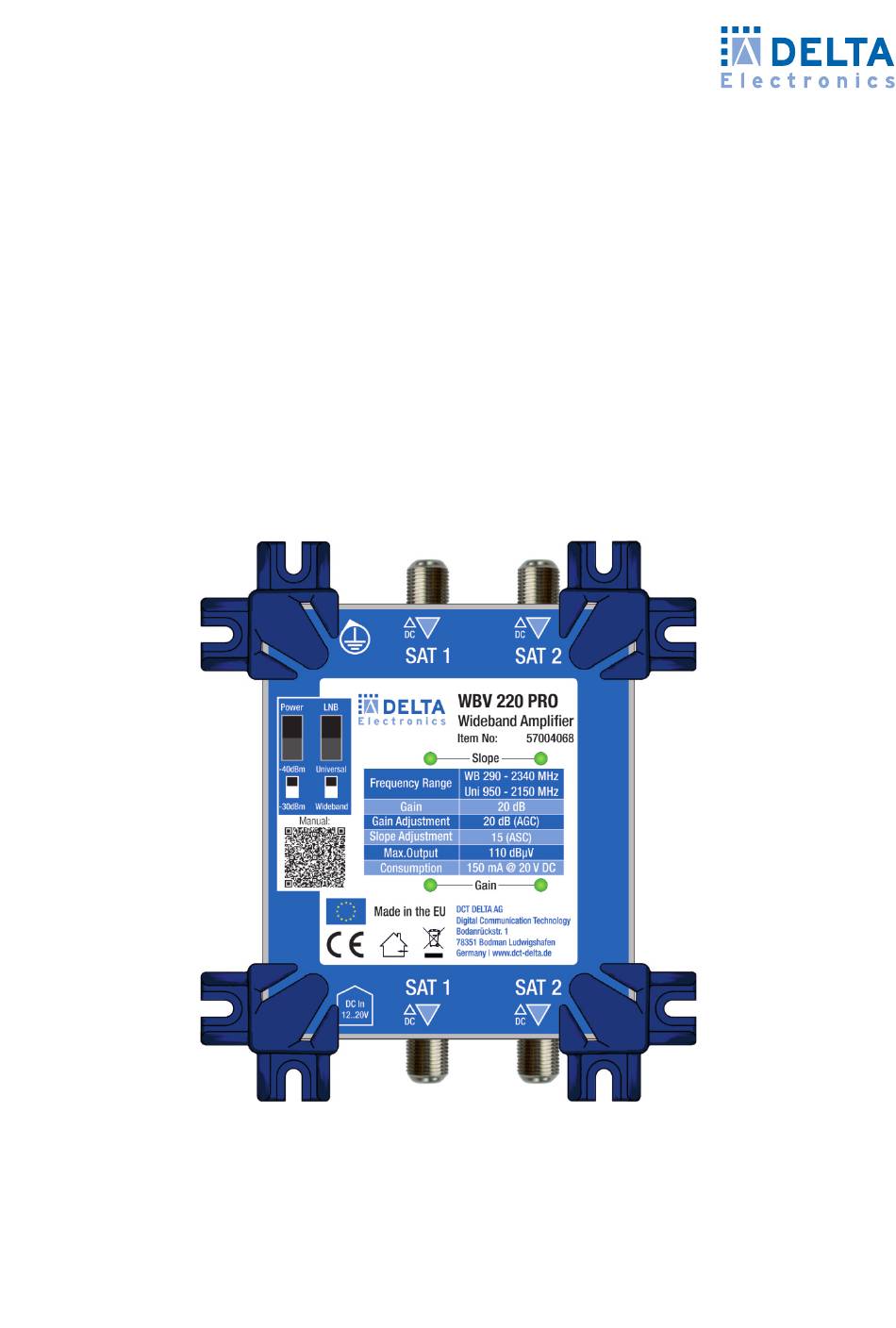

  • Page 1 User Manual Wideband-Amplifier WBV 220 PRO Art. Nr: 57004068...

  • Page 2: Table Of Contents

    Wideband-Amplifier WBV 220 PRO Content Introduction Product description Package Content Product Elements 2. Installation Configuration of the WBV 230 Wideband inputs Earth connector LNB switch Output power switch LEDs for automatic slope control (ASC) LEDs for automatic gain control (AGC)

  • Page 3: Introduction

    1. Introduction Product Description The WBV 220 PRO has been designed to amplify Wideband and Universal TV signals for home installations and distribution systems. The WBV 230 has separate inputs for two polarities or bands. The different signals are levelled individually and automatically by the device.

  • Page 4: Product Elements

    Wideband-Amplifier WBV 220 PRO Product Elements SAT 1 SAT 2 WBV 220 PRO Power Wideband Amplifier Item No: 57004068 Slope -40dBm Universal WB 290 - 2340 MHz Frequency Range Uni 950 - 2150 MHz Gain 20 dB -30dBm Wideband Manual:...

  • Page 5: Installation

    Wideband-Amplifier WBV 220 PRO 2. Installation UCW 12 optional terrestrial signal DC In 13...20 V Wideband-Splitter WBS 2424 e.g. MSW 106 P cascades...

  • Page 6: Configuration Of The Wbv 230

    With this switch you can attenuate the output signal to easy set the optimum signal level for following devices in case you do not split the signals. For example if you use the WBV 220 PRO as a preamlifier for DCT DELTA´s OCH optical transmitters then you can set the output level to a perfect 80 dB.

  • Page 7: Technical Specification

    Wideband-Amplifier WBV 220 PRO 4. Technical Specification WBV 220 PRO Amplifier Inputs 2 (F female) Outputs 2 (F female) Frequency range 290...2340 MHz (Wideband) or 950...2150 MHz (Universal) Gain 20 dB Maximum output level* 110 dBµV (-35 dB/IM3) selectable Slope adjustment (ASC)

  • Page 8: Safety Notes

    Wideband-Amplifier WBV 220 PRO 5. Safety Notes Read the instructions carefully before you connect the device! To avoid fire, shortage or electrical shock: Never expose the product to rain or high humidity. · Install the device at a dry plae without water infiltration or condensation.

  • Page 9: Warranty Terms

    Hereby DCT DELTA AG declares that the radio equipment type Wideband Amplifier WBV 220 PRO is in compliance with directive 2014/53/EU. The complete text of the EU declaration of conformity is available at the following internet address: www.dct-delta.de/service/...
  • Page 10 Wideband-Amplifier WBV 220 PRO Notes...
  • Page 11 Wideband-Amplifier WBV 220 PRO Notes...
  • Page 12 DCT DELTA AG Digital Communication Technology Bodanrückstr. 1, 78351 Bodman, Germany Tel: +49773929258 Fax: +497773929259 Email: info@dct-delta.de www.dct-delta.de...
