ZM005 User Manual
1. Introduction
ZM005 is a cost-effective embedded ZIGBEE Low Energy module launched by
sengled, CustomNodes QPG6095ZDTR13 technology, which are fully integrated
System-on-Chips that integrate a 2.4 GHz, IEEE 802.15.4-2003-compliant
transceiver, 32-bit ARM @ Cortex @ - M4 core, maximum working frequency of
64 MHzThe highest 512 kB flash and 64 kB of RAM12 channel peripherals
reflection system, may realize the MCU peripheral autonomic interaction
Integrated PA, TX power up to 10 dBm (2.4 GHz) powerful peripherals, QFN40
6x6 mm package.

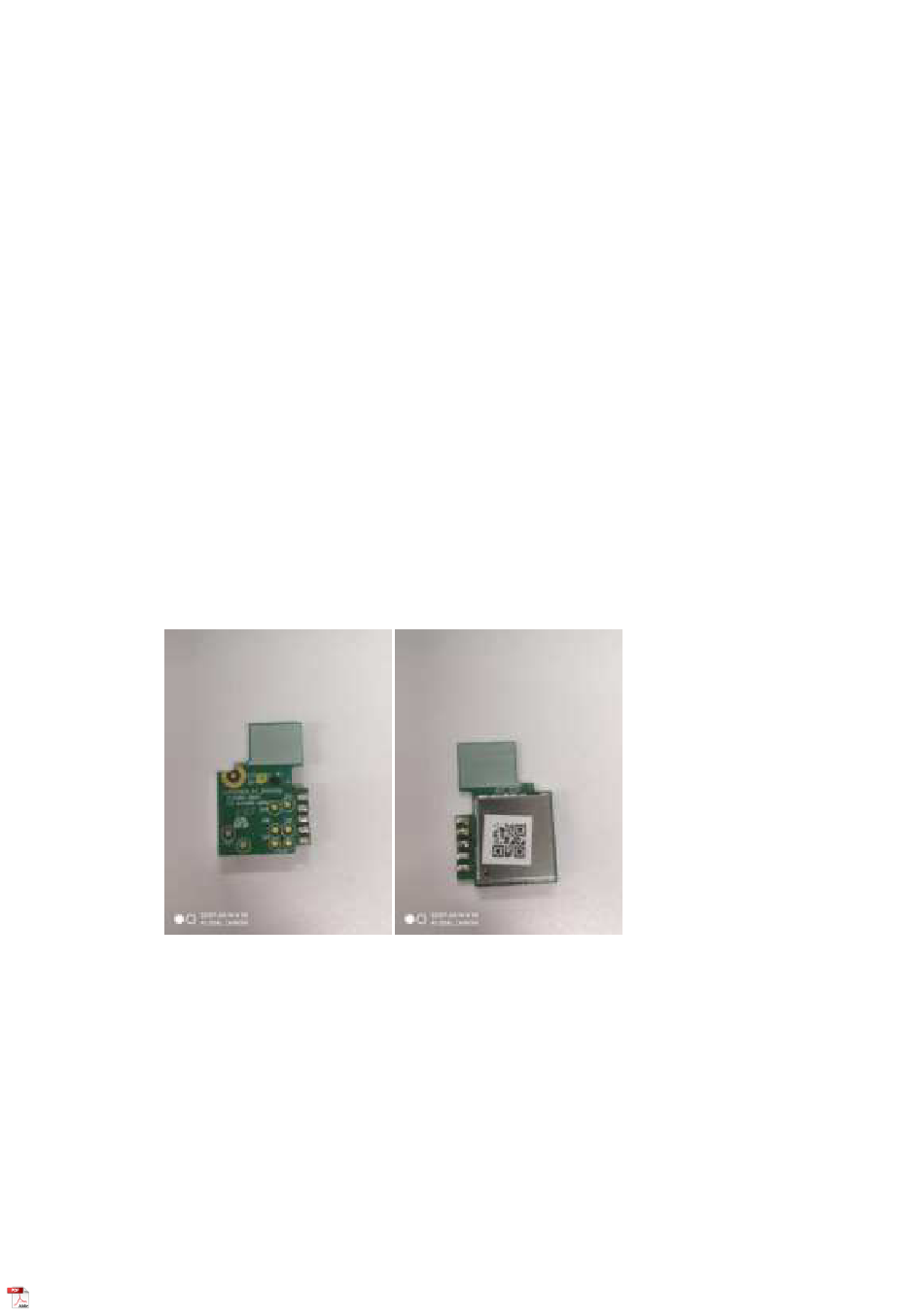

2. Module samples
Advertisement
Table of Contents
Related Manuals for Sengled ZM005
Summary of Contents for Sengled ZM005
- Page 1 ZM005 User Manual 1. Introduction ZM005 is a cost-effective embedded ZIGBEE Low Energy module launched by sengled, CustomNodes QPG6095ZDTR13 technology, which are fully integrated System-on-Chips that integrate a 2.4 GHz, IEEE 802.15.4-2003-compliant transceiver, 32-bit ARM @ Cortex @ - M4 core, maximum working frequency of...
- Page 2 3. A label with the following statements must be attached to the host end product: This device contains FCC ID: 2AGN8-ZM005. 4.This module must not transmit simultaneously with any other antenna or transmitter.
- Page 3 FCC ID of the module is visible; then an additional permanent label referring to the enclosed module:“Contains Transmitter Module FCC ID: 2AGN8-ZM005” or “Contains FCC ID: 2AGN8-ZM005” must be used. The host OEM...
- Page 4 user manual must also contain clear instructions on how end users can find and/or access the module and the FCC ID. The final host / module combination may also need to be evaluated against the FCC Part 15B criteria for unintentional radiators in order to be properly authorized for operation as a Part 15 digital device.
- Page 5 Economic Development Canada certification number for the module, preceded by the word “Contains” or similar wording expressing the same meaning, as follows: “Contains IC: 20888-ZM005” or “where: 20888-ZM005 is the module’s certification number”. Le produit hôte doit être correctement étiqueté pour identifier les modules dans le produit hôte.
- Page 6 20888-ZM005 20888-ZM005 "Contient IC: " ou "où: est le numéro de certification du module". A label with the following statements must be attached to the host end product: This 20888-ZM005 device contains IC:...
