Zonet ZEW1B03 User Manual

Wireless 802.11g pci adapter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

Table of Contents
loading

Related Manuals for Zonet ZEW1B03

Summary of Contents for Zonet ZEW1B03

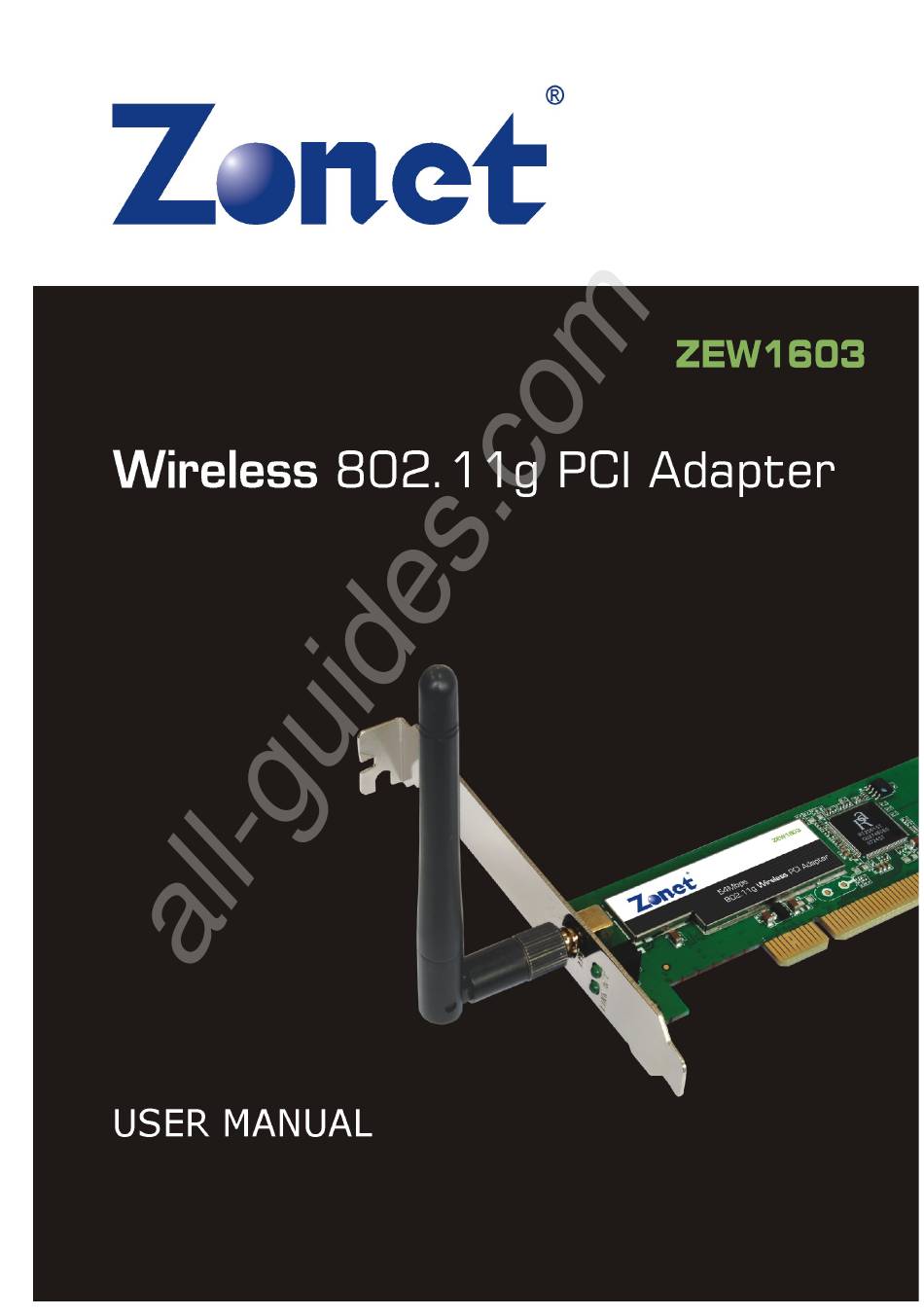

  • Page 1 All manuals and user guides at all-guides.com...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Table of Contents Chapter 1. Introduction..............2 1.1 System requirement..............2 1.2 Package Contents……...............2 Chapter 2. Install Your ZEW1603..........3 2.1 Software Installation….............3 2.2 Hardware Installation……............5 Chapter 3. Configuration ……………..........7 3.1 Profile …………………..............7 3.2 Link Status………..............8 3.3 Site Survey……................9 3.3.1 ADD/EDIT Profile……………………..........10 3.4 Statistics................13...

  • Page 3: Chapter 1. Introduction

    All manuals and user guides at all-guides.com Chapter 1. Introduction 1.1 System requirement A desktop PC with an available 32-bit PCI slot At least a 300MHz processor and 32MB of memory Windows 2000, XP, Vista 32-bit, Linux, MAC OSX A CD-ROM Drive 1.2 Package Contents One ZEW1603 One Wireless Antenna...

  • Page 4: Chapter 2. Install Your Zew1603

    All manuals and user guides at all-guides.com Chapter 2. Install Your ZEW1603 2.1 Software Installation NOTE: Snap-shot screens of the following installation procedure are based on Windows XP. For other windows operating systems, same procedure but different screen. 1. Power-ON computer, Insert Installation CD to your CD-ROM drive. Browse CD and double-click setup.exe in ZEW1603 folder to execute it.
  • Page 5 All manuals and user guides at all-guides.com Figure 2-2 4. Select Optimize for WiFi mode or Optimize for performance mode then click Next. Figure 2-3...

  • Page 6: Hardware Installation

    All manuals and user guides at all-guides.com 5. Click Finish to complete the software installation. Figure 2-4 2.2 Hardware Installation 1. Power-OFF your desktop PC. Open your PC case and locate an available PCI Slot. 2. Insert your ZEW1603 into the PCI slot. 3.
  • Page 7 All manuals and user guides at all-guides.com After Installing ZEW1603, the tray icon will appear in your system tray at the bottom of the screen. You have now completed the software and hardware installation for ZEW1603. Your ZEW1603 is now ready to use.

  • Page 8: Chapter 3. Configuration

    All manuals and user guides at all-guides.com Chapter 3. Configuration 3.1 Profile Profile can keep your favorite wireless setting among your home, office, and other public hotspot. You may save multiple profiles and activate the one at your preference. Figure 3-1 1.

  • Page 9: Link Status

    All manuals and user guides at all-guides.com 3.2 Link Status Link status page shows detail information about the current connection. Figure 3-2 1. Status: Shows the current connected SSID / BSSID. You will see “Disconnected” if it has no connection. 2.

  • Page 10: Site Survey

    All manuals and user guides at all-guides.com 3.3 Site Survey Under Site Survey tab, you will know information of all surrounding wireless networks from the last scan. Click Rescan to update and refresh. Or Select a SSID to add to your profile. Figure 3-3 Indicates your current connected network.

  • Page 11: Add/Edit Profile

    All manuals and user guides at all-guides.com 3.3.1 ADD/EDIT Profile a. Configuration Figure 3-4 Create a Profile Name and choose SSID from the drop-down menu for all available wireless networks. 1. Power Save Mode: CAM (Constantly Awake Mode): ZEW1603 will stay power-ON as long as the computer is connected to a power outlet.
  • Page 12 All manuals and user guides at all-guides.com 5. Threshold: Frame size when RTS/CTS handshake performs before attempt to transmit. RTS Threshold: Default value = 2347 Fragment Threshold: Default value = 2346 b. Authentication and Security: Figure 3-5 1. Authentication: Open, Shared, Leap, WPA-PSK, WPA2-PSK, WPA and WPA2 2.
  • Page 13 All manuals and user guides at all-guides.com Figure 3-6 PEAP(Protected Extensible Authentication Protocol): an edition of EAP(Extensible Authentication Protocol). EAP assures the mutual authentication of wireless users and server in the networking operation center. TLS/Smart Card: TLS(Transport Layer Security), use to configure an encryption channel and obtain the authentication of server, similar to the webpage server authentication by SSL(Secure Sockets Layer).

  • Page 14: Statistics

    All manuals and user guides at all-guides.com 3.4 Statistics Statistics page shows the detail counter information based on 802.11 MIB counters. This page translates MIB counters into an easier format for user to read. Figure 3-7...

  • Page 15: Advanced

    All manuals and user guides at all-guides.com 3.5 Advanced Figure 3-8 Wireless mode: Select from 802.11B only, 802.11 and B/G mixed B/G Protection: ERP protection mode of 802.11B/G definitions, select from Auto, On, and Off a. Auto: STA will dynamically change as AP announcement b.

  • Page 16: Chapter 4. Zero Configuration

    All manuals and user guides at all-guides.com Chapter 4. Zero Configuration Windows XP has a built-in wireless utility “Wireless Zero Configuration” (WZC). It is a built in service to configure your wireless clients from Windows. 1. Start using WZC, right click the tray utility and choose Use Zero Configuration as configuration Utility，and then Windows wireless network configuration could be used.
  • Page 17 All manuals and user guides at all-guides.com 3. If your wireless router has been encrypted, there will be a window appeared for input the key. Please input the key and click Connect, then the connection connect. 4. To configure the wireless connect properties, please right click the wireless icon in the system tray and choose Status to open the page Wireless Network Connection Status.
  • Page 18 All manuals and user guides at all-guides.com Figure 4-4 Figure 4-5...
  • Page 19 All manuals and user guides at all-guides.com 6. Advanced page configures firewall and connection sharing. Figure 4-6...

  • Page 20: Chapter 5. Soft Ap

    All manuals and user guides at all-guides.com Chapter 5. Soft AP ZEW1603 has two modes: working station and Soft AP. After start Soft AP, ZEW1603 will be an AP to accept any wireless device access. Note: the soft AP mode is available only in Windows XP. 5.1 Start Soft AP After starting ZEW1603 driver, you will see icon in the system tray.

  • Page 21: Configuration

    All manuals and user guides at all-guides.com 5.2 Configuration In soft AP configuration Utility page, you can make some basic configurations, such as wireless network name, mode, channel and authentication. Click Auth. vs. Security button to make different security configurations of wireless communication, and you can choose the authentication type or encryption type.

  • Page 22: Mac Table

    All manuals and user guides at all-guides.com 5.4 MAC Table MAC Table page shows the information of the wireless devices accessed to this soft AP. Figure 5-4 5.5 Switch to Working Station mode In the Soft AP mode, right-click the icon in the system tray and choose Switch to Station Mode, then ZEW1603 is switching to working station mode with an interface of working station.

  • Page 23: Chapter 6. Specifications

    All manuals and user guides at all-guides.com Chapter 6. Specifications General Features Standards IEEE 802.11g; IEEE 802.11b Interface 32-bit PCI Chipset Ralink Ra2561+Ra2528 Windows 2000/XP/Vista, Linux, MAC OSX User interface Easy to use user configuration software indoor up to 100 meters and outdoor up to 300 meters (standard transmit distance is Transmit distance limited to the environments)

  • Page 24: Chapter 7. Troubleshooting

    All manuals and user guides at all-guides.com Chapter 7. TroubleShooting This chapter provides solutions to problems that may occur during the installation and operation of ZEW1603. Read the descriptions below to solve your problems. 1. The ZEW1603 does not work properly. Reinsert ZEW1603 into your PC’s PCI slot.
