Zonet ZEW2546 User Manual

Hide thumbs Also See for ZEW2546:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZEW2546 and is the answer not in the manual?

Questions and answers

Related Manuals for Zonet ZEW2546

Summary of Contents for Zonet ZEW2546

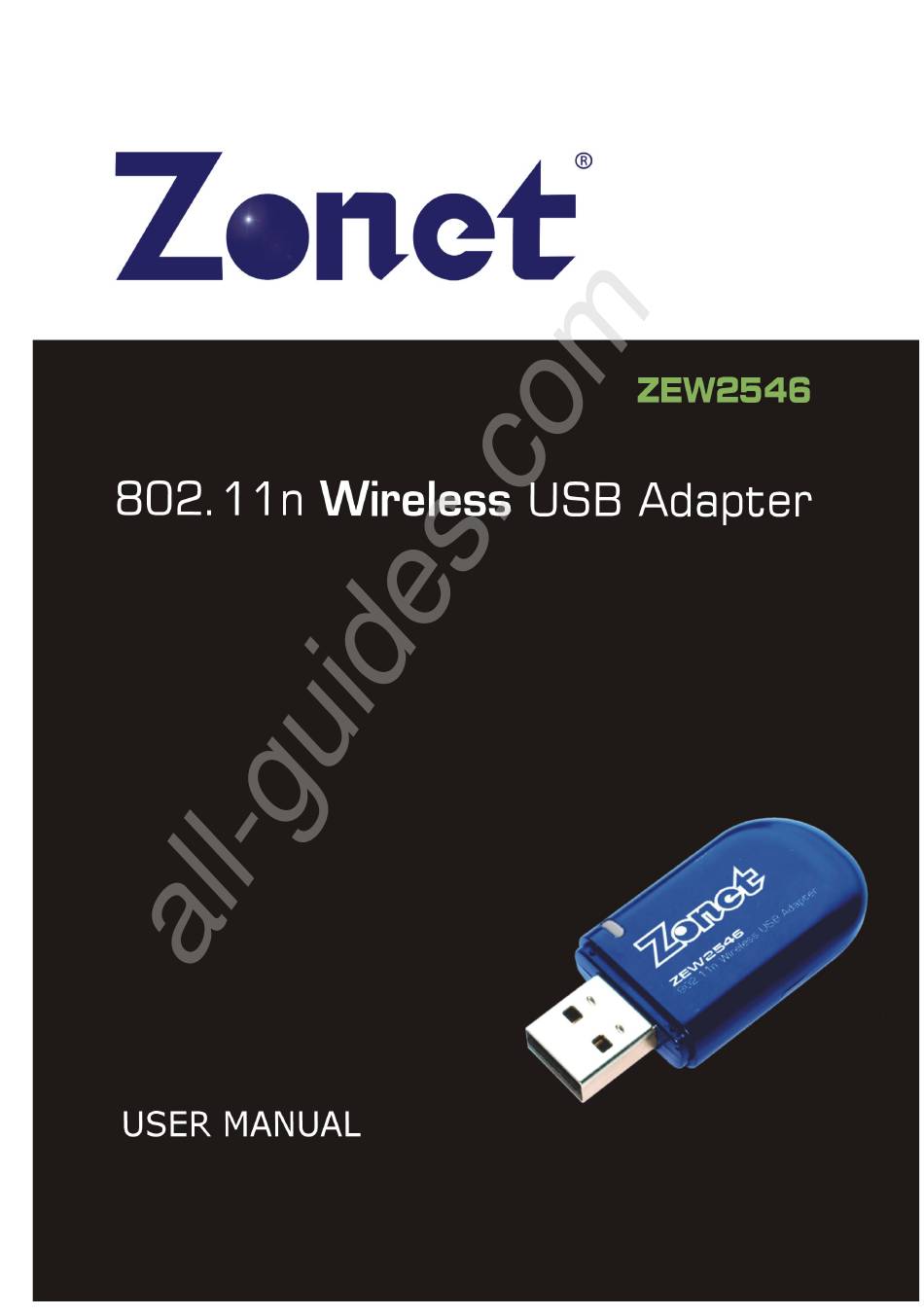

  • Page 1 All manuals and user guides at all-guides.com...
  • Page 2 Copyright of the whole product as integration, including its accessories and software, belongs to Zonet Technology Inc. Without the permission of Zonet Technology Inc., any individual or party is not allowed to copy, plagiarize, imitate or translate it into other languages.

  • Page 3: Table Of Contents

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter Table of Content Chapter 1 Introduction…………………...……………………………………2 1.1 Welcome………………………..……..……….…………………………2 1.2 Product Feature………………………………… … ……………………………2 1.3 Content of Package………..…….……… … ………….……………………2 1.4 Before You Begin…...……….……… … ………….……………………3 Chapter 2 Installation…………………………..……………………………………4 2.1 Software Installation…………...……..……….…………………………4 2.2 Hardware Installation…………………………...

  • Page 4: Chapter 1 Introduction

    1.1 Welcome Thank you for purchasing Zonet ZEW2546-802.11n wireless USB adapter. ZEW2546 connects you with IEEE802.11n networks at receiving rate up to an incredible 300Mbps! By using the reflection signal, 802.11n's “Multiple In, Multiple Out” (MIMO) technology increases the range and reduces “dead spots” in the wireless coverage area.

  • Page 5: Before You Begin

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter 1.4 Before You Begin You must have the following: A laptop computer/desktop PC with an available USB 2.0 slot Minimum 300MHz processor and 32MB memory Windows 2000, XP, Vista, 7 A CD-ROM Drive USB controller properly installed and working in the laptop computer 802.11n or 802.11b/g Access Point (for infrastructure Mode) or another...

  • Page 6: Chapter 2 Installation

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter Chapter 2 Installation 2.1 Software Installation NOTE: Snap-shot screens of the following installation procedure are based on Windows XP. Installation procedures will be similar for other windows operating systems. Insert Installation CD to your CD-ROM drive.
  • Page 7 All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter During the installation, the following dialogue may appear. Click Continue Anyway to continue. Click Finish to complete the software installation. Now your computer will restart automatically.

  • Page 8: Hardware Installation

    Power on your PC, let the operating system boot up completely, and log in as needed. Insert ZEW2546 into a USB slot of your computer. Select install the software automatically (Recommended) when Found New Hardware window appears. Now your have completed software and hardware installation for ZEW2546.

  • Page 9: Chapter 3 Configuration

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter Chapter 3 Configuration There are two ways to run REALTEK 11n USB Wireless LAN Utility as follows: 1. Click Start → Programs → REALTEK 11n USB Wireless LAN Utility → REALTEK 11n USB Wireless LAN Utility to run the utility.

  • Page 10: Add/Edit

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter 3.2.1 Add/Edit Profile Name: Specify one name for the profile SSID: Name of intended wireless network. Network Type: Infrastructure: A wireless Router and/or Access Point is required. Ad-hoc: Peer-to-Peer network, no base station required. Check the checkbox to activate Ad-hoc mode.

  • Page 11: Remove

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter 3.2.2 Remove Select a profile and click Remove button to delete this profile. 3.2.3 Duplicate Select a profile which you want to copy and then click Duplicate. Input the new profile name when Profile Name window appears.

  • Page 12: Set Default

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter 3.2.4 Set Default Select a profile and click Set Default button to make the profile connecting to wireless network automatically when the utility running next time. 3.3 Available Network Under Available Network tab, you will know information of all surrounding wireless networks from the last scan.

  • Page 13: Status

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter Double-click the network you want to connect. Modify the profile information according to your demand. 3.4 Status Status tab displays the detailed information of current connection.

  • Page 14: Statistics

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter 3.5 Statistics Statistics tab displays the detail counter information based on 802.11 MIB counters. This page translates that MIB counters into a format easier for user to understand. Reset: to renew the statistics. 3.6 Wi-Fi Protect Setup Wi-Fi Protect Setup tab supports the configuration setup using PIN configuration method or PBC configuration method.

  • Page 15: Pin Input Config (Pin)

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter 3.6.1 Pin Input Config (PIN) Input ZEW2546’s PIN Code into AP and click Start PIN on the AP-Router WPS config page Note: AP operating page may vary but similar from different brands...
  • Page 16 All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter Wait until PIN method window appear, the secure connection between AP and ZEW2546 will be founded automatically.

  • Page 17: Push Button Config (Pbc)

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter 3.6.2 Push Button Config (PBC) Click Push Button Config (PBC) under ZEW2546 Wi-Fi Protect Setup tab. Click Start PBC on the AP-Router WPS config page or push the WPS button on your...

  • Page 18: Chapter 4 Product Specifications

    All manuals and user guides at all-guides.com 802.11n Wireless USB Adapter Chapter 4 Product Specifications Specifications: Chipset Realtek RTL8191SU Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b Interface USB2.0 Windows 2000/ XP/ Vista/ 7 Frequency Range 2.412GHz~2.4835GHz Modulation Method CCK , OFDM 11 Mbps/9 Mbps/6 Mbps/5.5 Mbps/2 Mbps/ 1 Mbps 54 Mbps/48 Mbps/36 Mbps /24 Mbps/...

  • Page 19: Chapter 5 Troubleshooting

    Right click on My Computer and select Properties. Select the device manager and click on the Network Adapter. You will find ZEW2546 if it is installed successfully. If you see the yellow exclamation mark, the resources are conflicting. You will see the status of ZEW2546.
  • Page 20 5. Nothing happens when I click 11n USB Wireless LAN Utility Please make sure ZEW2546 is inserted into your computer’s USB port. If the 11n USB Wireless LAN Utility’s icon is black, ZEW2546 is not detected by your computer. Reboot the computer and try again.
