Stirling FS1-40DCWIFI Quick Start Manual

1
Have you got everything?
A
B
IM WC
R
1
2
Quick Start Guide

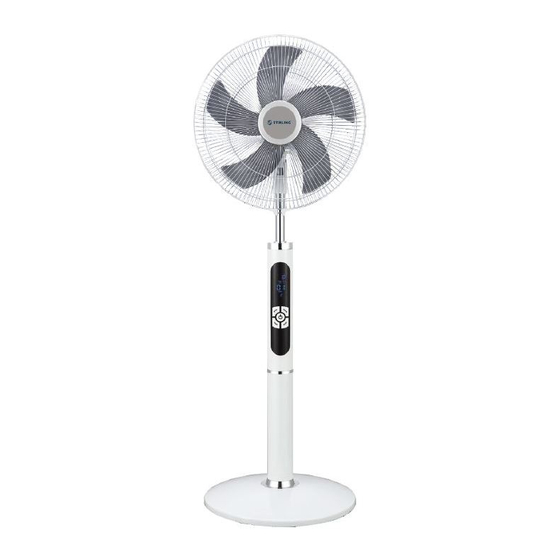

DC Wi-Fi pedestal fan ready to use, fast!
D
C
E
ON MODE
SPEED-
SPEED+
TIMER+ TIMER-
SWING
OFF
O P
QSG
S T
Nearly done! Just a bit more on the
other side of this page ...
Let's get your new 40 cm
F
G
H
I
J
Q
K
L
M
N
Assembling the fan
Loosen the screw from the tube and
connect the tube with the main body,
fasten the screw. Assemble the main
body into the cover tube and connect the
3
Remove the lock nut from the tube. Turn
the base parts over, place the silver-
coloured cover on top, then place the
base parts over the tube. Tighten the
lock nut at the underside of the base.
Model: FS1-40DCWIFI
Unpack the box and make sure
all of these items are there:
A Front guard
B Blade cap
C Blade
D Guard ring
E Guard nut
F Rear guard
G Motor with motor shaft
H Main body with control
panel
I Connection rings
J Extension pole
K Cover tube
L Plastic base cover
M Weighted stand base
N Lock nut
O AC adaptor
P Remote control
Q 2 AAA batteries
R Instruction manual
S Warranty card
T Quick start guide
You may also need a small
Phillips head screwdriver to secure
the front and rear guards.
two pieces.
Tighten the height adjustment
screw at a comfortable height for
attaching the fan head.
2
1
2
3
