- Page 1 QUICK SET-UP GUIDE To access the full capabilities of these loudspeakers please download and read the User Guide pmc-speakers.com...
- Page 2 This unit must be Earthed: – The unit is supplied with a suitable mains cable. If in doubt contact your PMC retailer/distributor. – Do not use the loudspeaker with an unearthed mains cable or an unearthed mains connection as this may compromise electrical safety.
-
Page 3: Controls And Connections

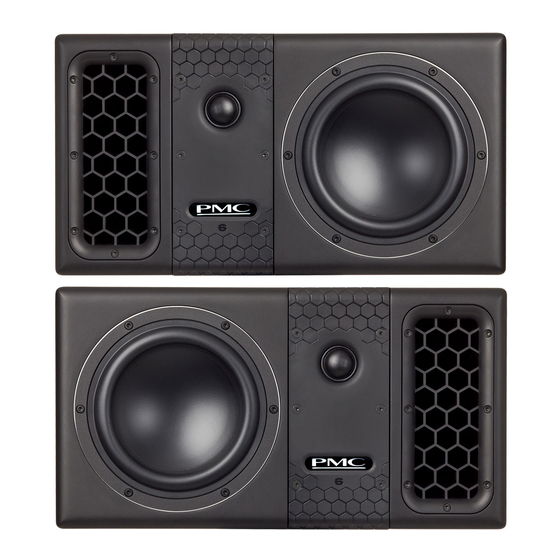

CONTROLS & CONNECTIONS Analogue & Digital Input XLR Accepts either analogue or AES3 digital input signals. The input source is set through the rotary encoders or the SoundAlign interface. If set to analogue but fed with an AES3 input signal a low- level pink-noise will be heard. - Page 4 PMC6 (portrait) PMC8-2 PMC6-2 NB: The PMC6 model features an entirely unique `adaptive crossover´. The speaker can detect whether it has been placed in a portrait or landscape configuration and automatically adapts its crossover accordingly. Speaker Placement Avoid placing objects in front of the loudspeakers as this will degrade the stereo imaging and tonal balance.
- Page 5 STEREO & SURROUND POSITIONING For a stereo array, place the loudspeakers at two corners of an equilateral triangle. The toe-in angle of the speakers can be adjusted to optimise the stereo image as illustrated. NB: Place the speakers as symmetrically as possible within the room to maximise the stereo imaging and provide the most even tonal balance.
-
Page 6: Desk Filter
BOUNDARY EQUALISATION Placing a speaker near to a room boundary will increase its bass response. Four preset EQ curves are provided to compensate for this effect and maintain a flat, neutral response. The preset EQs are selectable via the encoders SoundAlign network interface. - Page 7 XBD Mode NB: The acoustic centre ( ) of the complete XBD system is defi ned by the master speaker as shown above. Please download the full user guide from the PMC website for further information on other control confi gurations.
-
Page 8: Specifications
3m (9.8ft) 1.8m (5.9ft) 2m (6.6ft) Advanced Transmission Line LF 2 x PMC 200mm (8”) new studio 8 driver Drive unit complement LF PMC 150mm (6”) new studio 6 driver LF 2 x PMC 150mm (6”) new studio 6 driver MF PMC55 55mm (2”) soft dome mid-range...
