Summary of Contents for PMC ci Series

  • Page 1 Hand built by...
  • Page 3 This records the purchase of your loudspeakers and provides you, the customer an opportunity to make suggestions and provide feedback directly to PMC. To gain your extended warranty your product must be registered with us within 10 days of purchase.
  • Page 6 WHAT DRIVES US At PMC, we believe that music is what really matters; it’s what moves us and gives us the passion for what we do. It’s relatively easy to create loudspeakers that colour or flatter music — but that has never been our way.
  • Page 7 CONGRATULATIONS – YOU HAVE JOINED THE ELITE Stevie Wonder UNIVERSAL MUSIC GROUP You have joined the elite. You’re a PMC user. ESPN Our loudspeakers can be found in all Thomas Newman the world’s best listening environments, from audiophile living rooms...

  • Page 8: Table Of Contents

    CONTENTS General usage guidelines Important safety instructions What’s in the box Accessories Unpacking – deeper, clearer, cleaner bass ™ Laminair ™ Connections Installation examples Multi-channel audio for projector based systems In-wall mounting On-wall mounting No escape from performance Truly immersive sound Stereo set up Immersive sound set up Running in...

  • Page 9: Tip Tip

    PMC has made efforts to provide accurate installation information and good quality fixings. PMC will not be held responsible or liable for injuries or property damage – direct, indirect or consequential – arising out of use or inability to use this product safely and properly.

  • Page 10: Important Safety Instructions

    Please keep these instructions for future reference. It is the installer’s responsibility to ensure that all documentation is given to the end user and read fully before operation. PMC and its represent- atives are not liable or responsible for damage or injury caused by improper installation.
  • Page 11 The Professional Monitor Company Limited (PMC) intend to make this and all documentation as accurate as possible. However, PMC makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without prior notice or obligation of any kind.
  • Page 13 INIT. DATE All Dimensions in mm All Dimensions in mm TITLE SIZE Ci65 Complete Dimensions PROJECT This user guide Ci Series SCALE PART NO. REV. ROFESSIONAL MONITOR COMPANY CI65 43-45 Crawley Green Road All Tolerances +/-0.2mm Luton, Bedfordshire LU2 0AA...
  • Page 14 On-wall kit (OWK) – cabinet sleeves are available in white or black To create a stylish yet discrete on-wall solution then select one of the optional black or white cabinet sleeves to convert the design. The ci series 2 piece wall bracket is included with every sleeve.
  • Page 15 2 self-adhesive feet are included in the OWK. The OWK is available as a standalone accessory. 2 x Self-adhesive feet Dedicated ci series wall bracket BRKT – wall bracket The BRKT allows movement in both vertical and horizontal planes allowing the cabinets to be angled.
  • Page 16 ACCESSORIES (CONT.) Pre-mount kit (PMK) PMC pre-mount kit (PMK) is the ideal guide for installation of the ci range when used in in-wall/ceiling. The pre mount template can be screwed to studs or joists in the desired location with the speaker cable secured to a supplied eyelet on the rear.

  • Page 17: Unpacking

    UNPACKING Please retain your packaging for future use as all PMC cartons are durable, reusable and can be employed to safely transport your loudspeakers should they be relocated or returned for servicing. Much of the packing is constructed from recyclable materials, so if you are to dispose of it please do so in an environmentally friendly manner.

  • Page 18: Tip

    DEEPER, CLEARER, CLEANER BASS The source of PMC’s legendary natural, realistic sound is the Advanced Transmission Line (ATL ) bass-loading ™ technology, professionally proven all around the world. uses energy generated by the bass unit in a much ™ more intelligent, efficient way than ported or sealed box designs.
  • Page 19 PMC’s powerful long-throw drive units produce deep, powerful bass and in turn vast movements of air from the vent. Each vent features PMC’s Laminair technology, which produces a smooth controlled ™ air flow resulting in a faster, higher definition bass with accurate timing and dynamics without unwanted air noise.
  • Page 20 Cable & connectors When selecting cables for use with your ci series loudspeakers, ensure that their construction is of a high enough standard to withstand the rigors of everyday use and that they are suitably terminated. While bare wire can be accommodated by the ci series binding posts, we recommend the use of either spade lugs or 4mm ‘banana’...

  • Page 21: Installation Examples

    INSTALLATION EXAMPLES 55” 65” 65” For greater bass reproduction the addition of a sub bass unit from the PMC range is recommended.
  • Page 22 85” 85” 85” 85” 85” 85” For greater bass reproduction the addition of a sub bass unit from the PMC range is recommended. A fully immersive surround experience can be created with a combination of any of the ci series.

  • Page 23: Multi-Channel Audio For Projector Based Systems

    MULTI-CHANNEL AUDIO FOR PROJECTOR BASED SYSTEMS For greater bass reproduction the addition of a sub bass unit from the PMC range is recommended. A fully immersive surround experience can be created with a combination of any of the ci series.

  • Page 24: In-Wall Mounting

    IN-WALL MOUNTING The speed of the Qikfire in-wall mounting system makes the entire range very ™ “installer-friendly”. The ci30, ci45, ci90slim and ci65 are fitted with Qikfire, a spring- loaded mounting system which allows the loudspeaker to be fixed in position with a simple twist of a screwdriver and permits post-installation micro-adjustment.

  • Page 25: On-Wall Mounting

    ON-WALL MOUNTING The ci30 in-wall is converted to an elegant on- wall with the optional sleeve and wall bracket Please heed all safety warnings (see pages 10 & 11) Place on-wall template level Fix first part of the bracket to the Attached second part of brack- on wall and mark out fixing wall using fixings provided...

  • Page 26: No Escape From Performance

    NO ESCAPE FROM PERFORMANCE All ci series cabinets are enclosed at the rear, ensuring that sound leakage to adjoining rooms is kept to an absolute minimum. Unlike inferior open-back speaker designs, it is not necessary to rely on the cavity construction of the wall to enhance the sound;...

  • Page 27: Truly Immersive Sound

    TRULY IMMERSIVE SOUND The ultra-wide dispersion of the ci series makes the listening experience truly immersive from all room positions, for the perfect inclusive home listening environment, whether it’s an open-plan living space or dedicated home theatre. The vivid 3D image covering a vast listening area...

  • Page 28: Tip

    Mid-range dispersion patterns PMC ci series with n-compass Standard loudspeaker ™ technology; extending the mid-range dispersion for a consistent, immersive experience throughout the listening environment.
  • Page 29 STEREO SET UP...
  • Page 30 IMMERSIVE SURROUND SET UP Ideal for:...

  • Page 31: Running In

    RUNNING IN OR BREAKING IN HOURS When loudspeakers are new they will take time to reach their full potential. It is often debated whether any solid-state equipment, such as CD players or transistor-based power amplifiers change with use, but the characteristics of mechanical devices such as loudspeakers do alter and improve their performance significantly after a short ‘running in’...

  • Page 32: Our Meticulous Attention To Detail

    OUR METICULOUS ATTENTION TO DETAIL All PMC loudspeakers are designed and hand-built in the U.K. using individual components that are matched to our reference model; this includes the structural integrity of every cabinet and the testing and recording of each component.

  • Page 33: Service

    For any issues that might arise, or for advice and service requirements, the primary point of contact should be your knowledgeable and authorised PMC dealer/distributor. If you do not have a local representative please see www.pmc-speakers.com and click on ‘where to buy’.

  • Page 34: Specifications

    PECIFICATIONS Freq response 47Hz(-3dB)-25kHz TITLE TITLE Sensitivity 84dB (2.83v @1m) SIZE SIZE PROJECT PROJECT CI SERIES CI SERIES SCALE SCALE DRAWING NO. DRAWING NO. All Tolerances +/-0.2mm All Tolerances +/-0.2mm SHEET SHEET Unless otherwise stated Unless otherwise stated Effective ATL 1.5m (4.9ft)
  • Page 35 DIRECTIVITY MEASUREMENTS CI30 HORIZONTAL POLAR RESPONSE CI30 VERTICAL POLAR RESPONSE Horizontal polar response Vertical polar response dBSPL 0 Deg C urve Freq 500.00 1.00K 2.00K 4.00K 0 Deg 8.00K dBSPL Speaker distance calculation table Distance from loudspeaker (m) Rated max power On axis frequency response Impedance &...
  • Page 36 PECIFICATIONS Freq response 45Hz-25kHz TITLE TITLE Sensitivity 84dB (2.83v @1m) SIZE SIZE PROJECT PROJECT CI SERIES CI SERIES SCALE SCALE DRAWING NO. DRAWING NO. All Tolerances +/-0.2mm All Tolerances +/-0.2mm SHEET SHEET Unless otherwise stated Unless otherwise stated PRODUCTION PRODUCTION...
  • Page 37 DIRECTIVITY MEASUREMENTS CI45 HORIZONTAL POLAR RESPONSE CI45 VERTICAL POLAR RESPONSE Horizontal polar response Vertical polar response 0 Deg dBSPL C urve Freq 500.00 1.00K 2.00K 4.00K 0 Deg 8.00K dBSPL Speaker distance calculation table Distance from loudspeaker (m) Rated max power On axis frequency response Impedance &...
  • Page 38 PECIFICATIONS Freq response 40Hz-25kHz TITLE TITLE Sensitivity 87dB (2.83v @1m) SIZE SIZE PROJECT PROJECT CI SERIES CI SERIES SCALE SCALE DRAWING NO. DRAWING NO. All Tolerances +/-0.2mm All Tolerances +/-0.2mm SHEET SHEET Unless otherwise stated Unless otherwise stated PRODUCTION PRODUCTION...
  • Page 39 DIRECTIVITY MEASUREMENTS CI65 HORIZONTAL POLAR RESPONSE CI65 VERTICAL POLAR RESPONSE Horizontal polar response Vertical polar response 0 Deg dBSPL C urve Freq 500.00 1.00K 2.00K 4.00K 0 Deg 8.00K dBSPL Speaker distance calculation table Distance from loudspeaker (m) Rated max power On axis frequency response Impedance &...

  • Page 40: Tip

    PECIFICATIONS TITLE TITLE SIZE SIZE PROJECT PROJECT CI SERIES CI SERIES SCALE SCALE DRAWING NO. DRAWING NO. Freq response 45Hz-25kHz All Tolerances +/-0.2mm All Tolerances +/-0.2mm SHEET SHEET Unless otherwise stated Unless otherwise stated PRODUCTION PRODUCTION ISS. ISS. INIT. INIT.
  • Page 41 DIRECTIVITY MEASUREMENTS CI90slim HORIZONTAL POLAR RESPONSE CI90slim VERTICAL POLAR RESPONSE Horizontal polar response Vertical polar response dBSPL 0 Deg C urve Freq 500.00 1.00K 2.00K 4.00K 0 Deg 8.00K dBSPL Speaker distance calculation table Distance from loudspeaker (m) Rated max power On axis frequency response Impedance &...

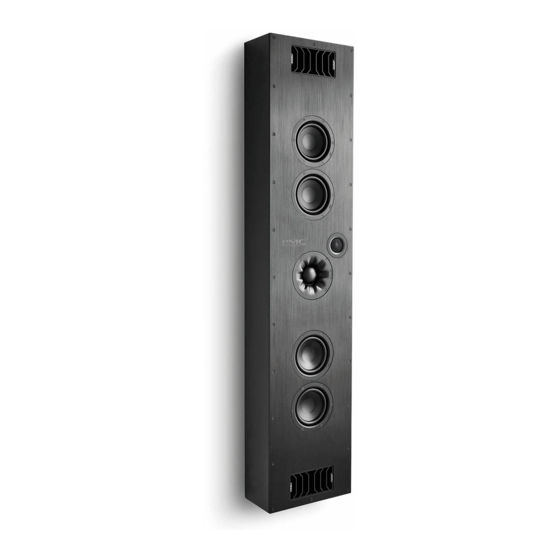

  • Page 42 PECIFICATIONS Freq response 32Hz(-3dB), 29Hz(-6dB)-25kHz Sensitivity 93dB (2.83v @1m) SIZE Effective ATL 2.3m (7.5ft) ™ SCALE Impedance 4 Ohms SHEET Drive units LF 4 x 133mm (5.25”) Natural Fibre LT x™ MF 50mm (2”) PMC55 n-compass soft dome ™ HF 27mm (1”) soft dome Input connectors 1 pair 4mm sockets Dimensions...
  • Page 43 DIRECTIVITY MEASUREMENTS CI140 HORIZONTAL POLAR RESPONSE CI140 VERTICAL POLAR RESPONSE Horizontal polar response Vertical polar response dBSPL 0 Deg C urve Freq 500.00 1.00K 2.00K 4.00K 0 Deg 8.00K dBSPL Speaker distance calculation table Distance from loudspeaker (m) Rated max power On axis frequency response Impedance &...
  • Page 44 PECIFICATIONS Freq response 32Hz(-3dB), 29Hz(-6dB) Sensitivity 93dB (2.83v @1m) SIZE Effective ATL 2.3m (7.5ft) ™ SCALE Impedance 4 Ohms SHEET Drive units LF 4 x 133mm (5.25”) Natural Fibre LT x™ Input connectors 1 pair 4mm sockets Dimensions H 1400mm (55”) W 300mm (11.8”) D 153mm (6”) Weight ea.

  • Page 45: Tip

    WARRANTY Register within 10 days to unlock your extended warranty Visit pmc-speakers.com and click on register a product...
  • Page 46 NOTES Your comments...
  • Page 47 This document should not be construed as a commitment on the part of The Professional Monitor Company Limited (PMC). The information it contains is subject to change without notice. PMC assumes no responsibility for errors that may appear within this document. Information subject to change.
  • Page 48 THE PROFESSIONAL MONITOR COMPANY LIMITED Holme Court Biggleswade SG18 9ST UK Reg No: 3328009 T +44 (0)1767 686300 Stock code no. 17061 Item no. 1167/March©2020 E sales@pmc-speakers.com W www.pmc-speakers.com...

This manual is also suitable for:

Ci140Ci140subCi65Ci90slimCi45Ci30
