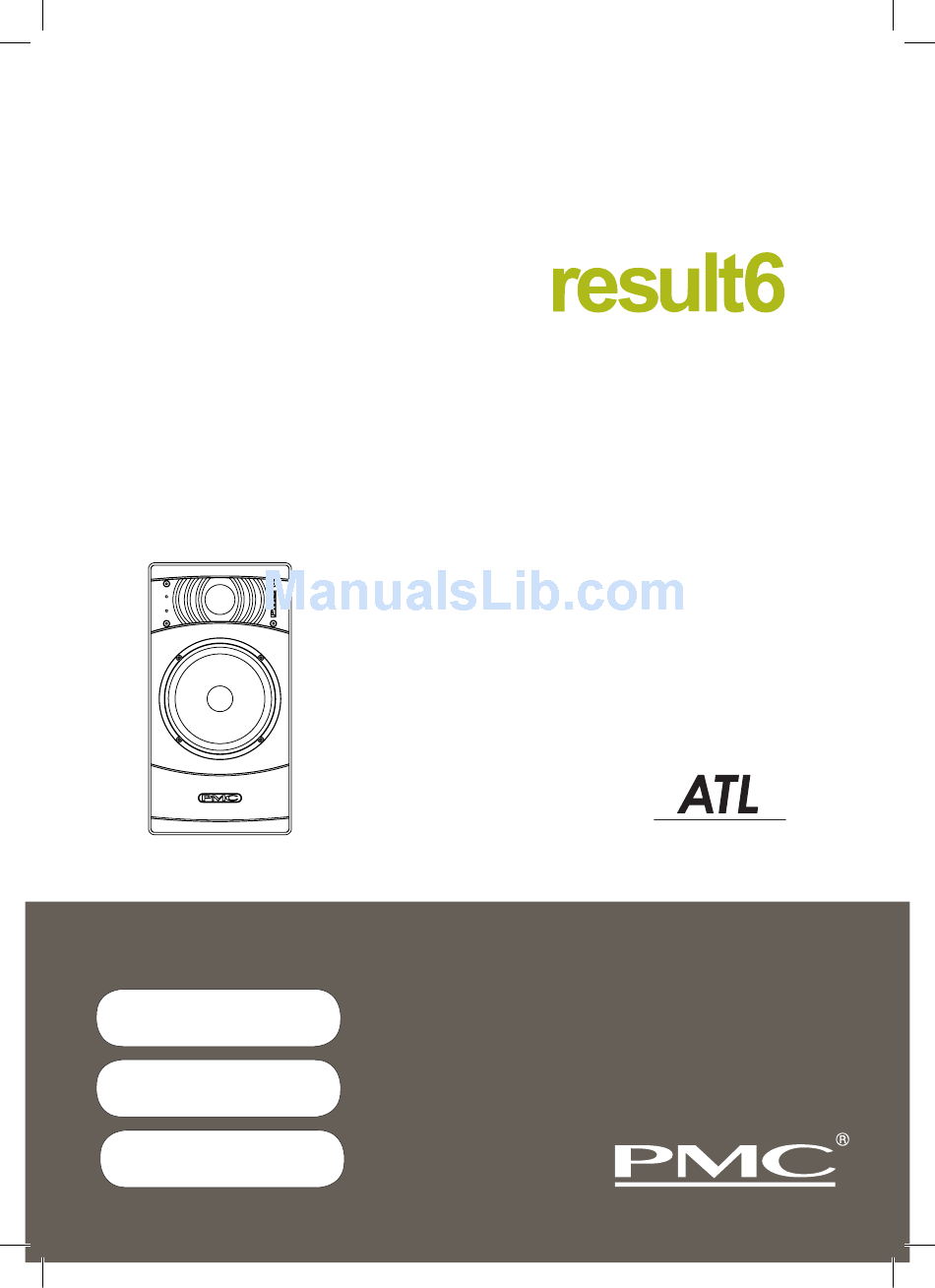

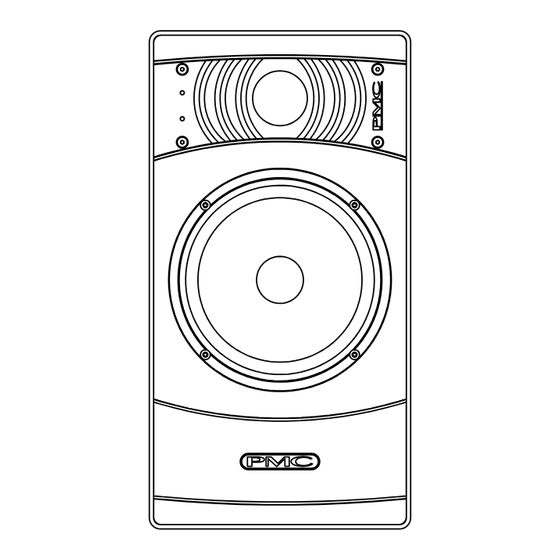

Page 1: User Guide
User Guide Advanced Transmission Line Model Serial No. Hand built by... - Page 3 Ref. no - 847 / stock code 15436 This document should not be construed as a commitment on the part of PMC. The information it contains is subject to change without notice. PMC assumes no responsibility for any errors within this document.
-
Page 4: A Message From Peter & Oliver Thomas
Our unswerving passion for getting designs right has made this goal possible. Thank you for choosing PMC products. Please read this user guide and install your new result6 monitors according to the advice you’ll find in the following pages. -
Page 5: Congratulations
Congratulations - You have joined the elite PMC: the authority for quality sound. UNIVERSAL MUSIC GROUP Stevie Wonder Over more than two decades PMC has earned an unrivalled reputation for creating the world’s finest professional loudspeakers. Pinewood Studios Thomas Newman... -
Page 6: Table Of Contents
Positioning (Cont.) Surround sound systems Specifications Service The PMC range Meticulous care and attention Online warranty Warranty certificate – Part 1 – Your copy Warranty certificate – Part 2 – PMC’s copy Your comments – Help us improve Inspection certificate... -
Page 7: Important Safety Instructions
Only use with accessories, stands or brackets specified by PMC and if they are securely fixed. Ensure they do not tip/fall and cause injury or damage. -
Page 8: Introduction
The drivers employed in the result6 monitors are bespoke PMC designs using natural materials. The 27mm precision soft-dome tweeter delivers ultra-high resolution and a neutral balance, and its perforated acoustic lens extends the response beyond 20kHz and controls dispersion, ensuring perfect integration through the crossover region. -
Page 9: Unpacking And Care
Do not attempt to use these speakers if the packaging has been water-damaged. Care and service In normal usage PMC speakers should provide many years of trouble-free operation, but in the unlikely event that you suspect damage or failure has occurred do not attempt to repair the unit yourself. - Page 10 LF distortion. Consequently, the upper ™ Line) enclosures have taken loudspeaker bass and mid-range detail is not masked by design to the highest level, using sophisticated harmonic distortion and the result is PMC’s cabinet construction, proprietary drive units, characteristically transparent mid-range, fast, patented absorption materials attacking bass, and outstanding clarity.
-
Page 11: System Description
System description Audio enters the result6 via a balanced, low- A total of 165W of high-efficiency amplification noise, low-distortion analogue input, and is provided, with 65W for the high-frequency the signal path through the loudspeaker driver and 100W for the bass unit. The amplifier... -
Page 12: Connections
To avoid potential damage, please ensure that the signal source is turned off before connecting or disconnecting your result6 active loudspeakers. Connections The rear panel of the result6 carries the connectors for audio and mains power. Audio The electronically balanced analogue input accepts 3-pin male XLR connectors, wired with Pin-1 screen (ground), Pin-2 signal positive (hot), and Pin-3 signal negative (cold). -
Page 13: Running-In
Running-in When brand new, PMC loudspeakers will take a short period of use before they reach their full potential. This is because the mechanical and acoustical characteristics of the bass driver and tweeter alter slightly after manufacture as the flexible elements in their construction relax and reach their optimum compliancy. -
Page 14: Applications And Accessories
Applications and accessories Applications The ultra-high resolution response of the result6 monitors makes them ideal for the critical evaluation of any audio. Typically, they are used for nearfield monitoring of music, speech recording and mixing, in OB vehicles, radio on-air studios and TV sound control galleries, home theatre, high-end hi-fi, project studios, post-production, editing suites, music mastering, and for A&R evaluations. -
Page 15: Positioning
However, the excellent stereo imaging which PMC monitors are known for is due, in part, to their wide dispersion characteristic, as shown on the right-hand image. To optimise the stereo imaging, PMC monitors should be angled so that their axes cross about 0.5 metres (2ft) behind the listening... -
Page 16: Positioning (Cont.)
Place the speakers so that their front baffles are well forward of any objects placed between them, such as computer display screens. With regard to optimising the speaker height, the acoustic axis of all your result6 cabinets is midway between the HF and LF drivers. This axis should be level with the listener’s ears. - Page 17 Bass response result6 active monitors can produce significant bass energy below the frequencies at which they become omnidirectional. As a consequence, it is important to consider the effect of the boundaries of the listening room when placing the monitors. Ideally, the monitors should be placed more than 0.5 metres from the side and rear walls of the room so that reinforcement and cancellation (peaks and dips) of the bass output caused by wall reflections will be moved higher in frequency and thus less influential.
-
Page 18: Surround Sound Systems
Surround sound systems 5.1 Systems result6 monitors have been designed for perfect multi-channel music or movie playback. The following diagrams indicate the ideal speaker layouts. The constraints of room size and shape will often force some loudspeakers to be placed closer or further from the listening position than is ideal. -
Page 19: Specifications
Specifications Usable frequency response 45Hz - 22kHz Maximum SPL 112dB @1metre Effective ATL length 1.5m (4.9ft) Crossover frequency 2kHz Drive units LF 170mm (6.5 inch), doped natural fibre HF 27mm Soft Dome Cabinet dimensions H380 x W199 x D360 (mm) Weight 8kg (17.6lbs) Input connectors... -
Page 20: Service
Service We are confident that your result6 loudspeakers will afford many years of trouble-free listening of the highest order. However, in the unlikely event that they should require repair, all replacement parts will exactly match the performance of those originally installed, because for every loudspeaker we produce, we record the precise value of each component, along with the system response as a whole. -
Page 21: The Pmc Range
The PMC range The PMC range of professional monitors currently spans 27 different models, from the enormous QB1 XBD-A flagship system down to the diminutive twotwo.5 active speaker. However, every monitor is designed with the same care and attention, using shared families of drive units, crossover designs and amplifiers. -
Page 22: Meticulous Care And Attention
Meticulous care and attention All PMC loudspeakers are hand-built in the UK using components that are individually matched to our reference model. This includes the structural integrity of every cabinet, and the testing and recording of each individual component to guarantee adherence to our strict tolerances. In this way we can ensure your purchase sounds identical to the original design. -
Page 23: Online Warranty
PLEASE ACTIVATE YOUR 2-YEAR WARRANTY ONLINE GO TO WWW.PMC-SPEAKERS.COM AND CLICK ON REGISTER PRODUCT WARRANTY ON-LINE If you do not have access to the Internet, please fill in the Warranty form on pages 25 and 26, and return to PMC. - Page 24 Do not return a product to PMC without firstly contacting our technical department. If the product needs to be returned for service you will be issued with a Returns Authorisation number. If a product is returned to PMC and subsequently is found to have no fault or a non-warranty fault there will be minimum charge of £50.00 plus the carriage for its return.
-
Page 25: Warranty Certificate – Part 2 – Pmc's Copy
WARRANTY CERTIFICATE - PART 2 PMC’s copy Please complete and return this section – or simply complete the on-line registration at www.pmc-speakers.com and click on ‘register product.’ Product Serial No’s Date of purchase Purchased from Your name Your email address... -
Page 26: Your Comments - Help Us Improve
If there is one thing we should change, what would it be? Please tell us how your new PMC loudspeakers perform. Your comments may appear on the customer quotes section for this product on our website – but don’t worry, the comments will be anonymous and your personal details will not be published. -
Page 27: Inspection Certificate
Inspection certificate Every component employed within a PMC product is measured, tested, matched and recorded by hand. This analysis also applies to the final product to ensure you receive an identical replica of the original reference model. Enclosure finish Assembly & Wiring... - Page 28 Notes...
- Page 29 Notes...
- Page 30 Notes...
- Page 31 The Professional Monitor Company Limited. This document should not be construed as a commitment on the part of The Professional Monitor Company Limited. The Professional Monitor Company Limited will not assume responsibility for errors that may appear in this document. Information may be subject to change.
- Page 32 T + 44 (0) 1767 686300 sales@pmc-speakers.com PMC Stock Code: 15436 www.pmc-speakers.com Ref No. 847 August 17...
