Z-Wave Secondary Keypad
Technical Manual
M/K: KP01
Revision 2
Product Overview

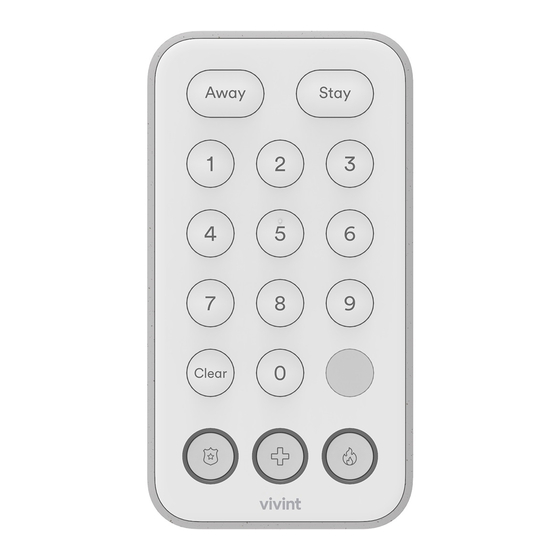

The wireless keypad is a secondary control device for users to arm and disarm
their systems in a location other than their main screen or hub. The keypad is
also used to signal our monitoring center in the case of an emergency, and it
displays the current state of the system as well (disarmed, armed stay, or
armed away).
Product Specification
Indoor use only
Operating Frequency: 908.42Mhz, 916Mhz
Operating Temperature: 32°f to 120°f
Battery Type: 4xAA
Battery Life: 1 year (approximate based on usage)
Z-Wave Plus V Certified
S2 Encryption
Smart Start Enabled
What is Z-Wave?
The Z-Wave protocol is an interoperable, wireless, RF-based communications technology designed
specifically for control, monitoring and status reading applications in residential and light commercial
environments. Mature, proven and broadly deployed (with over 35 million products sold worldwide), Z-Wave
is by far the world market leader in wireless control, bringing affordable, reliable and easy-to-use 'smart'
products to many millions of people in every aspect of daily life. Certified Z-Wave devices regardless of
© 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KP01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivint KP01

  • Page 1 'smart' products to many millions of people in every aspect of daily life. Certified Z-Wave devices regardless of © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 2 2. Locate the reset button which is under the back of the battery cover, to the left of the batteries, and below the tamper switch, in a hole big enough for a paperclip. © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 3: Factory Reset

    ARROW, and the DSK is pointed at by the YELLOW ARROW. Factory Reset To restore the keypad to factory settings which removes it from any network as well: © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 4 4. The device’s downcast indicator will turn red when the reset operation is complete. The device is now ready to be added to a Z-Wave network. © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 5: Command Classes

    Whether or not motion detector is enabled. 1: Enabled (default) / 0: Disabled. Size Format Enumerated Read only Min Value Max Value Default Value © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 6 Amount of time in minutes between timed battery checks. Size Format Unsigned Integer Read only Min Value Max Value 1440 Default Value © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 7 The Armed Indicator is ignored if it has not previously received an Armed Away or Armed Stay Indicator. © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 8: Entry Control

    Hereby, Universal Electronics BV declares that the radio equipment type XXXXXXX is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: xxxxxxxxxxxxxxxx © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
  • Page 9 • Consult the dealer or an experienced radio/television technician for help. FCC ID: 2AAAS-KP01 IC: 10941A-KP01 *For complete regulatory compliance information, go to: vivint.com/fcc © 2021 Vivint Inc. All Rights Reserved. | 1-800-216-5232 | M/N: KP01 | Doc P/N: 77-600046-001 Rev. 1.0...
