Vivint VS-KPAD01-001 Quick Reference

Vivint Keypad
(VS-KPAD01-001)
Quick Reference (User Manual – Install & Operation)
The Vivint Keypad is a wireless Z‐Wave
access to the security features for a Vivint Smart Home™ system, including
enabling and disabling both the Arm Away and Arm Stay security modes. The keypad can also be
used to transmit a signal to Vivint Monitoring for fire, panic,
and general emergency conditions such as a home intrusion.
The keypad has an easy‐to‐use interface with identified and illuminated buttons,
as well as indicator icons that show when the device is offline, or battery
power is low. It also displays security system status with a downcast light.
This document includes a product description, installation instructions, basic operation,
illustrations, technical specifications, and regulatory references.

Installation Instructions

You can install (mount) the keypad with either screws or tape:
1. To mount with the provided screws:
a. Slide the battery cover / mounting plate down and remove it.
b. Place the mounting plate in the desired location.
c. Secure the mounting plate with the 2 screws, using the slotted
hole to adjust the plate up or down to ensure a precise level.
d. Reattach the keypad by placing it directly on the mounting
plate, and sliding it down until it locks into place.
2. To mount with tape:
a. Remove the tape's backing paper from back of the mounting
plate (do not remove the plate itself).
b. Place the keypad in the desired location, being careful to
ensure a precise level.
c. Press the keypad against the wall for 30 seconds to activate
the tape and secure it to the wall.
3. Once installed, enable the batteries by removing the pull tab.
Adding the Keypad to the System – Network Inclusion
Add the keypad device to the Vivint system using one of the following methods:
This product can be operated in any Z‐Wave network with other Z‐Wave certified devices from other manufacturers. All mains operated nodes within the network will act as
repeaters regardless of vendor to increase reliability of the network. A S2 security enabled controller is required to operate the product.
 Vivint app (SmartStart): Scan the SmartStart QR code on the box with your smartphone, and then follow the prompts in the app. (Note:
The QR code can also be found inside the battery cover under the batteries.) SmartStart enabled products can be added into a Z‐Wave
network by scanning the Z‐Wave QR Code present on the product with a controller providing SmartStart inclusion. No further action is
required and the SmartStart product will be added automatically within 10 minutes of being switched on in the network vicinity.
 Vivint panel/hub via Z‐Wave (Classic Inclusion): Use this standard method for adding Z‐Wave devices at the panel or hub. Use the
"PAIR/RESET" button next to the battery tray. Follow the onscreen prompts to add the keypad.

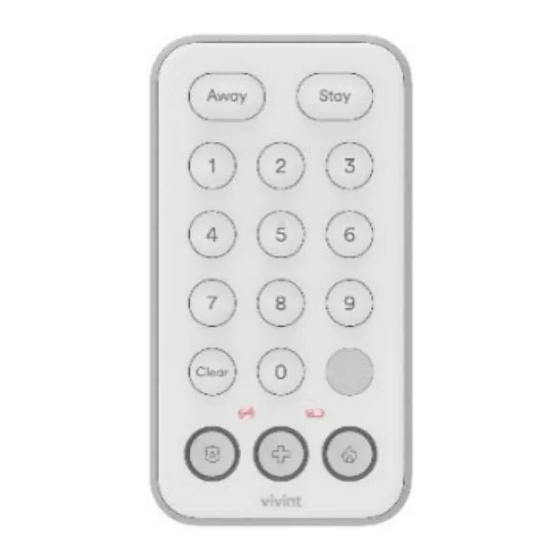

Keypad (front view) —
TM control device that provides remote

Basic Operation / User Functionality

Once the keypad is up and running, the user can perform the
following functions. For more details, refer to online Help at
the Vivint Support site: support.vivint.com.
MAIN FEATURES —
 Arm to STAY mode (press & hold the button for 3 seconds)
 Arm to AWAY mode (press & hold the button for 3 seconds)
 Disarm the system (enter a valid user's 4‐digit PIN code)
 Send an emergency signal to Vivint Monitoring (press
the PANIC, FIRE, or EMERGENCY button for 2 seconds)
 Verify system status (wake the keypad by touching it,
and view the downcast light) as indicated by these colors:
Green: System disarmed
Orange: System armed
Red: Alarm in progress
4931 N 300 W Provo, UT 84604
Keypad (back view, open;
battery cover / mounting plate off) —
