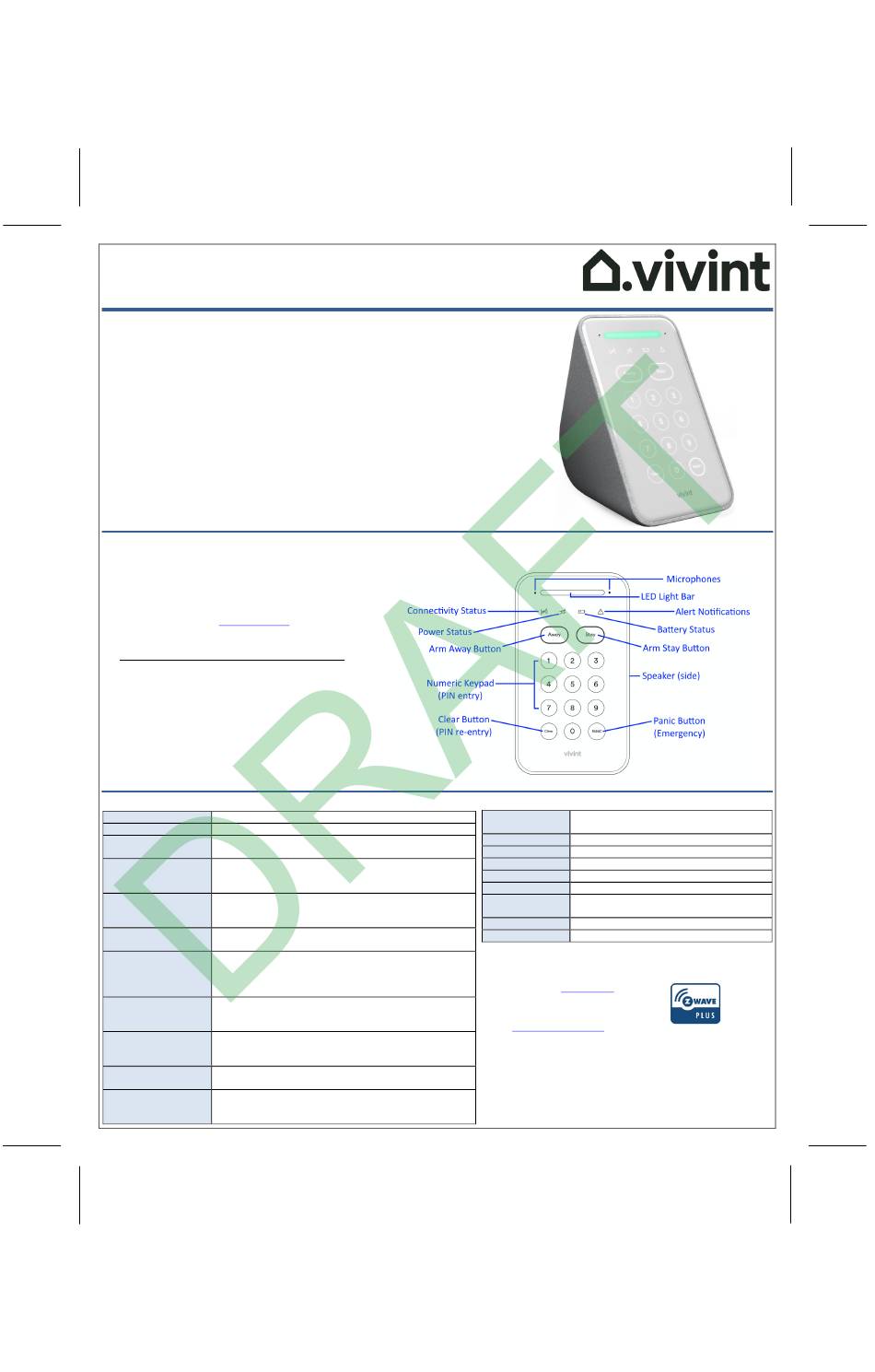

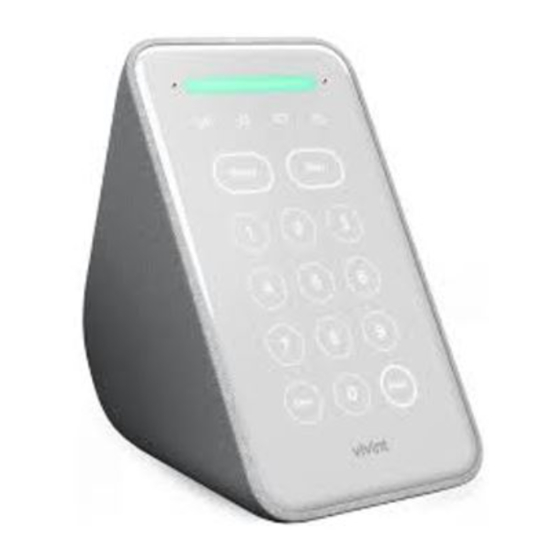

Vivint Smart Hub Lite
(VS-HP1000-000)
Quick Reference (Overview, Specs, Installation, Regulatory)
The Vivint Smart Hub Lite is a user-installable hub device that is the central component of the Vivint
Smart Home™ system, a fully supervised (monitored), integrated, and intelligent home security and
smart home automation ecosystem.
The system — the hub and various security sensors, detectors, and smart home devices — incorporates
the most advanced, sophisticated technologies and functionality available today. The hub itself provides
user interaction with a numeric keypad (for PIN entry); Arm Away and Arm Stay buttons to control home
protection (monitored security); Panic button to enable Emergency features; status icons to indicate
real-time connectivity, AC power, battery, and system alert information; speaker and microphones for
two-way talk (and alarm functionality), and an LED light bar that shows the security state.
The Smart Hub Lite includes an app that can be downloaded to the user's mobile device and used for
initial DIY setup and subsequent control of all system functions. The app interface shows time &
weather, and status of the network, power, sound, and overall system security. The app makes
navigation, and device configuration and operation quick and easy.
This document includes a product description, illustrations, basic system operation / user functionality,
as well as technical specifications, standards listings, patent, and regulatory compliance references.
Operation Overview / User Functionality
The hub monitors and manages all aspects of your smart home
system. Once the Smart Hub Lite is up and running, the user can
perform the following functions (among others) at the hub and via
the mobile app. (Editing note: make a list of hub functionality vis-à-
vis features available in the app only.) For details, refer to online
Help at the Vivint Support site: support.vivint.com.
MAIN FEATURES — WHAT YOU CAN DO WITH THE SYSTEM
• Add, configure, and control security devices
(door/window sensor, motion sensor, glass break
sensor, firefighter)
• Arm and disarm the security system (Stay & Away)
• Activate alarms with Panic, Emergency and Fire buttons
• Talk with the Vivint Central Station using two-way voice
• Acknowledge and clear alert notifications
• Add, configure, and manage users
Technical / Hardware Specifications
Vivint Part Number (P/N) VS-HP1000-000
Model Number (M/N)
CP05
System Parameters 100 wireless zones; 50 users; 20 key fobs; 30 keypads;
2000 Z-Wave devices (thermostats, door locks, etc.)
System Communication 345 MHz receiver (primary sensor radio);
(radios, receivers) Z-Wave radio;
Bluetooth (BLE used for initial setup);
Control Keypad
Capacitive touch keypad (keys visible in low light; key press triggers
audio and visual feedback; toggle function to enable/disable audio
feedback; keys: 0-9 numbers, panic, cancel, arm stay, arm away)
Audio Speaker: Max 85dB SPL at 10 feet (3 meters)
Dual microphones
LEDs / LEDs: provide visual feedback of keys pressed, security status, errors
Visual Status Indicators with the hub and system, and lighting for interaction in the dark.
Light bar: 4 RGB LEDs, segmented with separate color & brightness.
Backlit icons: 4 backlit icons to show system status.
Power (AC) AC adapter (12 V adapter with detachable DC cord)
- Input: 100-240 VAC 50/60 Hz (max 1.0 A)
- Output: 12 VDC 2.0 A
Power (Backup Battery) Battery: minimum 3400 mAh, 3.6 V Lithium-ion Polymer (providing a
minimum of 24 hours of internal backup battery power when
operating in low power mode)
I/O Connectivity Dual-Band Wi-Fi: 802.11 a/b/g/n/ac client mode;
Gigabit Ethernet port; LTE cellular module
Environmental
The hub will operate at humidity levels of 0 – 90% non-condensing
(Operating Humidity and and temperatures between 0°C to 49°C (32°F to 120°F). For optimal
Temperature Ranges) battery operation, the recommendation is 0°C to 35°C (32°F to 95°F).
REFERENCE SHEET FOR VS-HP1000-000 P/N 77-600042-001 REV 1.0 |
4931 N 300 W Provo, UT 84604
Smart Hub Lite Keypad —
Standards Certifications and Listings
FCC
47CFR Part 15, Subpart B, Class B; and 47CFR Part
15, Subpart C
Safety Certification cULus Certified
CSFM Listing 7167-2147:0X00
Z-Wave Alliance ZC10-18106282
UL 985 Standard for Household Fire Warning System Units
UL 1023
Standard for Household Burglar-Alarm System Units
ANSI/SIA CP-01-2019 Security System Standard – Features for False Alarm
Reduction
FCC ID (Hub): 2AAAS-CP05
- Contains FCC ID: 2AAAS-CC06
*For complete regulatory compliance
information, go to: vivint.com/fcc.
*For patents information,
go to: vivint.com/legal/patents.
