TECHNICAL MANUAL
VRF INVERTER MULTI-SYSTEM AIR CONDITIONERS
High Head Models
(OUTDOOR UNIT)
Single use (Used also for combination)

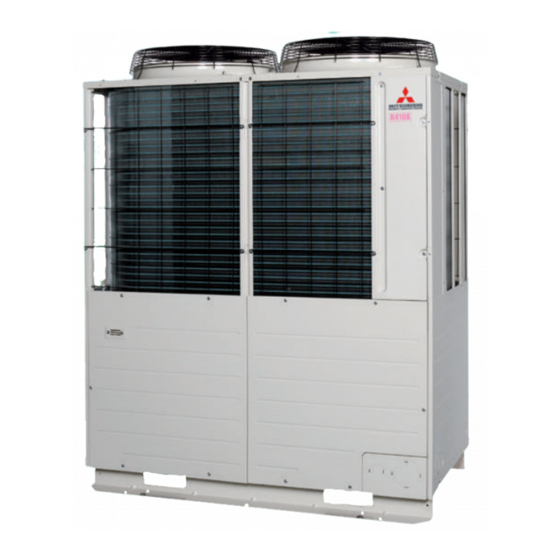

FDCH335CKXE6G-K
615CKXE6G, 680CKXE6G
※FDC335KXE6G-K&FDC560KXE6G-K are only used for combining with other models.
Combination use
FDCH735CKXE6G, 800CKXE6G, 850CKXE6G, 900CKXE6G, 960CKXE6G, 1010CKXE6G,
1065CKXE6G, 1130CKXE6G, 1180CKXE6G, 1235CKXE6G, 1300CKXE6G, 1360CKXE6G
In this Technical Manual,the High Head Models of outdoor units only are shown. Regarding the
standard models please see the Manual No. ' 09
SM-128 (Service Manual)
Service code
Outdoor unit
FDCH335CKXE6G-K
FDCH1360CKXE6G
Page
Service code
blank
D
Except Specifications, Exterior dimentions and Electrical wiring, this technical manual can be applied for all service code.
※
, 400CKXE6G, 450CKXE6G, 504CKXE6G, 560CKXE6G, 560CKXE6G-K
History of service code
blank
D
-
-
Specifications / Exterior dimentions / Electric wiring
P4～8
P60～64

(100m)
cooling only
KX-DB-127 (Data Book) and Manual No. ' 09-KX-
•
Changes
blank→D Transfer production place from Japan to Thailand
Manual No. '09
KX-T-139
•
updated July 08, 2014
※
,
