Chengdu Ebyte Electronic Technology Co.,Ltd.

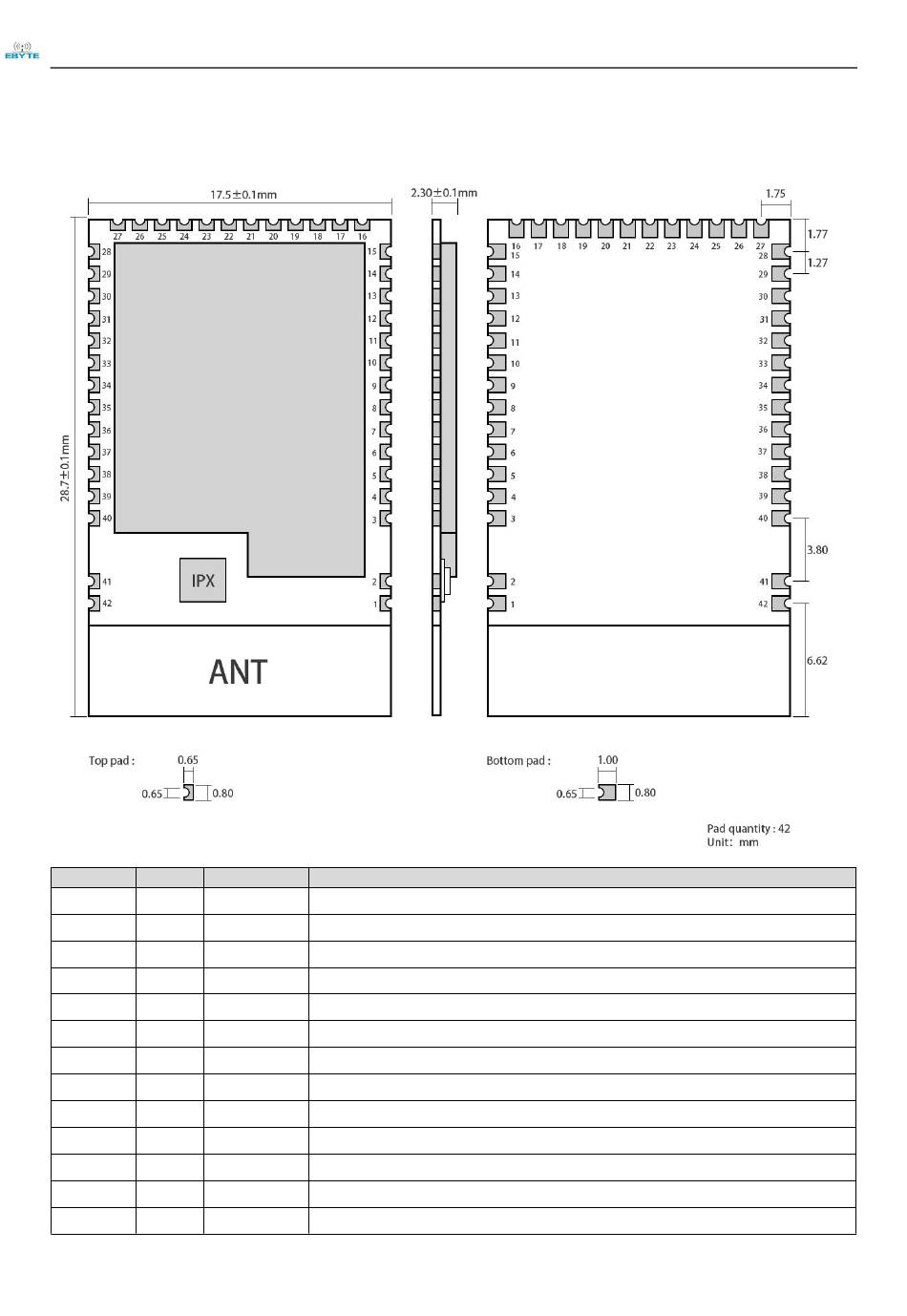

3 Size and pin definition
Pin No.
Item
1、2、3
GND
4
DIO_0
5
DIO_1
6
DIO_2
7
DIO_3
8
DIO_4
9
DIO_5
10
DIO_6
11
DIO_7
12
DIO_8
13
DIO_9
14
DIO_10
15
DIO_11
Copyright ©2012–2021，成都亿佰特电子科技有限公司
Direction
-
Input/Output
General IO port, sensor controller (see CC26xx manual for details)
Input/Output
General IO port, sensor controller (see CC26xx manual for details)
Input/Output
General IO port, sensor controller (see CC26xx manual for details)
Input/Output
General IO port, sensor controller (see CC26xx manual for details)
Input/Output
General IO port, sensor controller (see CC26xx manual for details)
Input/Output
High drive General IO port, sensor controller (see CC26xx manual for details)
Input/Output
High drive General IO port, sensor controller (see CC26xx manual for details)
Input/Output
High drive General IO port, sensor controller (see CC26xx manual for details)
Input/Output
Input/Output
Input/Output
Input/Output
Description
Ground
General IO port (see CC26xx manual for details)
General IO port (see CC26xx manual for details)
General IO port (see CC26xx manual for details)
General IO port (see CC26xx manual for details)
E72-2G4M05S1G User Manual
5
