TSFC 12-2 User Manual
Prepared By: SBK
Approved By: NK
Mfg. By:
Vighnaharta Technologies Pvt. Ltd.
2nd Floor,Karanjkar Estate,S.N.11/11,Nanded Gaon,Pune-411041
Contact no.: +919011033259 (Landline)
Email: sales@vighnaharta.in | Website:
Vighnaharta technologies Pvt. Ltd.
Vighnaharta Technologies Pvt. Ltd.
2nd Floor,Karanjkar Estate,
S.N.11/11,Nanded Gaon,
Pune-411041
Tel no.: +919011033259, Sales: +919011033260
Email: sales@vighnaharta.in | Website: http://www.vighnaharta.in
Doc No.: TSFC 12-2_UM_4_0
Rev.No.: 4_0
Eff.Date.: 20-12-2018
T S F C 1 2 - 2
U S E R M A N U A L
Sales: +919011033260
http://www.vighnaharta.in
Page 1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TSFC 12-2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vighnaharta TSFC 12-2

  • Page 1 TSFC 12-2 User Manual Vighnaharta Technologies Pvt. Ltd. 2nd Floor,Karanjkar Estate, S.N.11/11,Nanded Gaon, Pune-411041 Tel no.: +919011033259, Sales: +919011033260 Email: sales@vighnaharta.in | Website: http://www.vighnaharta.in Prepared By: SBK Doc No.: TSFC 12-2_UM_4_0 Approved By: NK Rev.No.: 4_0 Eff.Date.: 20-12-2018 T S F C 1 2 - 2 U S E R M A N U A L Mfg.
  • Page 2 TSFC 12-2 User Manual Fire Alarm System Limitations A fire alarm system—typically made up of Heat detectors do not sense particles of smoke detectors, heat detectors, manual pull combustion and alarm only when heat on stations, audible warning devices, and a fire...
  • Page 3 TSFC 12-2 User Manual arranged through the local manufacturer's performed by authorized professional fire representative. Maintenance should be alarm installers only. Adequate written scheduled monthly or as required by National records of all inspections should be kept. and/or local fire codes and should be Installation Precautions enclosure.
  • Page 4 TSFC 12-2 User Manual RECORD OF REVISION Prepared Reviewed Approve Description/Remarks on Date d By Release 20-08-18 Initial draft NAC Silence Time Menu removed 20-12-18 from Menu options Vighnaharta Technologies Pvt. Ltd. Page 4 of 26...
  • Page 5: Abbreviations

    TSFC 12-2 User Manual Abbreviations TSFC 12-2 TrueSafe Fire Cloud with 2 Input Zones Initiating Device Circuit Notification Appliance Circuit Acknowledge Manual Call Point Potential Free Contact Vighnaharta technologies Pvt. Ltd. Page 5 of 26...
  • Page 6: Table Of Contents

    TSFC 12-2 User Manual Table of Contents Abbreviations ........................5 Table of Contents ......................6 Introduction ......................8 Overview ......................8 System Features ....................8 Technical Specifications ..................9 Controls and Indications ..................10 1.4.1 Controls ....................10 1.4.2 LED Indications ..................10 1.4.3...
  • Page 7 TSFC 12-2 User Manual 4.1.2 Fault Condition ..................25 Wi-Fi ........................ 26 Vighnaharta Technologies Pvt. Ltd. Page 7 of 26...
  • Page 8: Introduction

    TSFC 12-2 User Manual 1. Introduction 1.1 Overview TSFC-12-2 is India’s first IoT (Internet of Things) enabled Conventional Fire Alarm Panel. The TSFC-12-2 provides reliable fire detection, signalling and protection for commercial, industrial, institutional buildings, small offices etc. The panel is extremely compact in a plastic enclosure and includes local buzzer, LEDs for indications and with LCD display, keypad for manual operation and configuration and cloud connectivity through Wi-Fi.
  • Page 9: Technical Specifications

    TSFC 12-2 User Manual • Password protected menus • Up to 15 scrolling events capacity • Cloud Connectivity through Wi-Fi 1.3 Technical Specifications Power Supply 230V AC Input 50/60 Hz Input Initiating Device Circuit (IDC) • Voltage: 12 VDC •...
  • Page 10: Controls And Indications

    TSFC 12-2 User Manual 1.4 Controls and Indications 1.4.1 Controls Key name Password Key function protected? MENU • Enter main menu list • Configures system as per requirements Num key ‘1’ • Use as a Esc • Enter numeric values ‘1’ during configuration SILENCE •...
  • Page 11: Lcd Indication

    1.4.5 EOL Resistor • 820 ohm 1 W Resistor is connected in parallel with each input zone for zone open/short/fire sensing purpose. Hence 2 resistors are required for TSFC 12-2 model • 4.7K ohm 1 W Resistor is connected in parallel with NAC output Vighnaharta Technologies Pvt.
  • Page 12: Installation

    TSFC 12-2 User Manual 2. Installation 2.1 Installation Precaution WARNING: Do not attempt to install, service, or operate this unit, until this manual is read and understood. Do not connect other equipment to this unit. CAUTION: This system works at 0° C to +50° C and at a relative humidity of 90 ±2% RH.
  • Page 13: Panel Wiring

    TSFC 12-2 User Manual • Enter all external cables via preformed cable entry holes located at top of the panel. • When the installation of all the cables has been completed, clean the interior of the enclosure ensuring all masonry debris and drilling swords are removed.
  • Page 14: Field Wiring Diagram

    TSFC 12-2 User Manual 2.3.1 Field Wiring Diagram The following diagram shows connector’s placement on Interface board. 2.3.2 Initiating Device Circuit (IDC) • No. of Initiating circuit 2 Zone • Type Class B • Wire Size 1 sq mm FRLS cable •...
  • Page 15: Output Circuits

    TSFC 12-2 User Manual 2.3.3 Output Circuits • Notification Appliance Circuit (NAC) • Potential Free Contact Relay Outputs (PFC) 2.3.4 NAC • No. of NAC 1 circuits • Type Class B • Output Voltage • Current 500mA max • Terminals •...
  • Page 16: Resettable 12Vdc Output

    TSFC 12-2 User Manual 2.3.6 Resettable 12VDC output 12VDC Resettable output for four wire detectors (12VDC/500mA) 2.4 Maintenance 2.4.1 Walktest It is maintenance purpose mode. When any zone is set as a Walk test that time Walk Test LED starts blinking according to zone. This mode is used to test smoke detector and siren but RAC is not released.
  • Page 17: Periodic Inspection And Test Of System

    TSFC 12-2 User Manual 2.4.3 Periodic inspection and test of system For additional information on control panel faults, regular checking of the functionality of the control panel and fire detection system by a person responsible for fire prevention in the company must ensure the availability of the fire detection system.
  • Page 18: Do's And Don'ts

    TSFC 12-2 User Manual 2.5 Do’s and Don’ts 2.5.1 Do’s take responsibility for your fire systems 1. DO Taking responsibility means being proactive and intentional about managing the programme and knowing what it takes to maintain a high level of reliability your fire systems.
  • Page 19 TSFC 12-2 User Manual problems because of their sporadic nature. You may have a bigger problem than you think and your system may be rendered ineffective because of it. let building occupants become apathetic to fire alarms 2. DON’T May be you have noticed this, but most people hesitate to respond when they hear the fire alarm evacuation signals in a building.
  • Page 20: System Programming

    TSFC 12-2 User Manual 3 System Programming The fire panel system is completely programmable at site with the help of panel keypad and LCD. It does not require software skills OR any special software for Programming. When panel is in normal state, the screen displays as below. Normal state means all zone of panel are in enabled and panel is fault free.
  • Page 21: Zone1

    TSFC 12-2 User Manual 3.1.1 Zone1 After entering in the Zone 1 menu, LCD displays as shown below. ZONE 1 < ENABLE > Use LEFT and RIGHT keys to view sub menu of ZONE 1 configuration. After changing the modes, press ENTER key to save the changes.
  • Page 22: Nac

    TSFC 12-2 User Manual 3. Disabled: This mode is used to disable the zone. The system does not scan the input signal from smoke detectors, heat detectors, etc. 3.1.3 NAC After entering in the NAC configuration menu, LCD will show below screen, <...
  • Page 23: Wi-Fi Feature

    TSFC 12-2 User Manual a. Press ENTER key b. First enter OLD password Old Password **** Enter new password and press ENTER to save new password. New Password **** 3.1.7 Wi-Fi Feature This is a unique feature provided by TSFC-12-2 panel for monitoring fire system from anywhere in the world using internet and Mobile application.
  • Page 24: System Operation

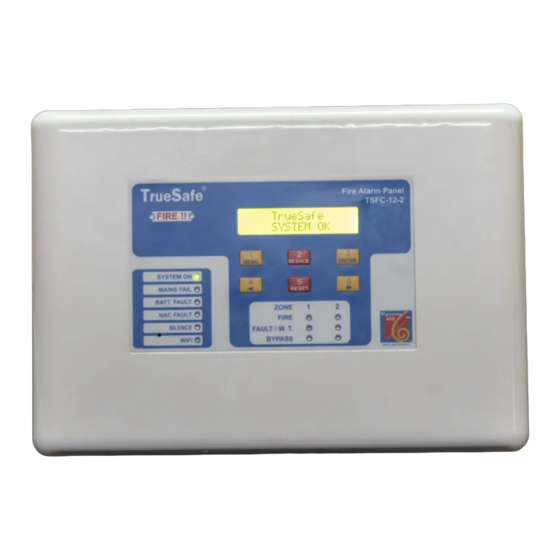

    TSFC 12-2 User Manual 4 System Operation The following is the front panel of TSFC-12-2 panel 4.1 Normal Mode Operation This section explains the system behaviour under different conditions. The System continuously monitors for fire and system faults in all modes of operation.
  • Page 25: Fire Condition

    TSFC 12-2 User Manual 4.1.1 Fire Condition If any zone detects the fire, the system enters immediately into fire condition. The System operation and LCD display for this condition is shown below. The respective zone LED will also glow. Zone 1 Fire ALARM [1/1] •...
  • Page 26 Wi-Fi cloud connectivity is a unique feature built-in in TSFC-12-2 Fire Alarm Panel. The user can enable or disable this feature from the panel keypad. The Wi-Fi feature can be used with Vighnaharta’s TrueSafe Cloud Mobile application on Android or iPhone.
