TSFC 24-2 & 4 User Manual
Prepared By: SBK
Approved By: NMK
Mfg. By:
Vighnaharta Technologies Pvt. Ltd.
2nd Floor,Karanjkar Estate,S.N.11/11,Nanded Gaon,Pune-411041
Contact no.: +919011033259 (Landline)
Email: sales@vighnaharta.in | Website: http://www.vighnaharta.in
Vighnaharta Technologies Pvt. Ltd.
Vighnaharta Technologies Pvt. Ltd.
2nd Floor,Karanjkar Estate,
S.N.11/11,Nanded Gaon,
Pune-411041
Tel no.: +919011033259, Sales: +919011033260
Email: sales@vighnaharta.in | Website: http://www.vighnaharta.in
Doc No.: TSFC 24-2_4_UM_3_0
Rev.No.: 3_0
Eff.Date.: 20-12-2018
T S F C 2 4 - 2 & 4
U S E R M A N U A L
Sales: +919011033260
Page 1 of 26
Advertisement
Table of Contents
Related Manuals for Vighnaharta TSFC 24-2
Summary of Contents for Vighnaharta TSFC 24-2
- Page 1 TSFC 24-2 & 4 User Manual Vighnaharta Technologies Pvt. Ltd. 2nd Floor,Karanjkar Estate, S.N.11/11,Nanded Gaon, Pune-411041 Tel no.: +919011033259, Sales: +919011033260 Email: sales@vighnaharta.in | Website: http://www.vighnaharta.in Prepared By: SBK Doc No.: TSFC 24-2_4_UM_3_0 Approved By: NMK Rev.No.: 3_0 Eff.Date.: 20-12-2018 T S F C 2 4 - 2 &...
- Page 2 TSFC 24-2/4 User Manual Fire Alarm System Limitations A fire alarm system—typically made up of fire at the location of detectors, the detectors smoke detectors, heat detectors, manual pull will not go into alarm. stations, audible warning devices, and a fire...
- Page 3 TSFC 24-2/4 User Manual EN54 shall be followed. Environments with scheduled monthly or as required by National large amounts of dust, dirt or high air and/or local fire codes and should be velocity require more frequent maintenance. performed by authorized professional fire A maintenance agreement should be alarm installers only.
- Page 4 TSFC 24-2/4 User Manual RECORD OF REVISION Prepared Reviewed Approved Description/Remarks on Date Release 20-11-17 Initial draft NAC Silence Time Menu 20-12-18 removed from Menu options Vighnaharta Technologies Pvt. Ltd. Page 4 of 26...
-
Page 5: Abbreviations
TSFC 24-2 & 4 User Manual Abbreviations TSFC 24-2 & 4 TrueSafe Fire Cloud System with 2/4 Input Zones Initiating Device Circuit Notification Appliance Circuit Acknowledge Manual Call Point Potential Free Contact Vighnaharta Technologies Pvt. Ltd. Page 5 of 26... -
Page 6: Table Of Contents
TSFC 24-2/4 User Manual Contents Abbreviations ........................5 Introduction ......................7 1.1 Overview ......................... 7 1.2 System Features ....................... 7 1.3 Technical Specifications ..................... 8 1.4 Controls and Indications .................... 9 1.4.1 Controls ..................... 9 1.4.2 LED Indications ................... 9 1.4.3 LCD Indication .................. -
Page 7: Introduction
TSFC 24-2/4 User Manual 1. Introduction 1.1 Overview Fire can have an enormous impact on any institution or company, so to protect from these kinds of incidences, this system can be helpful. This TrueSafe Fire alarm System (TSFC) is specially designed for fire indications, early warnings facility. -
Page 8: Technical Specifications
TSFC 24-2/4 User Manual • Up to 15 scrolling events capacity • Cloud Connectivity through WiFi 1.3 Technical Specifications Power Supply 230V AC, 1.2A, 60/50 Hz. with 24 V Battery charger. Input Initiating Device Circuit (IDC) • Voltage: 24 VDC •... -
Page 9: Controls And Indications
TSFC 24-2/4 User Manual 1.4 Controls and Indications 1.4.1 Controls Key name Password Key function protected? MENU • Enter main menu list • Configures system as per requirements Num key ‘1’ • Use as a Esc • Enter numeric values ‘1’ during configuration SILENCE •... -
Page 10: Lcd Indication
• 4.7K ohm 1 W Resistor is connected in parallel with each input zone for zone open/short/fire sensing purpose. Hence 2 resistors are required for TSFC 24-2 & 4 resistors are require for TSFC24-4 model. • 4.7K ohm 1 W Resistor is connected in parallel with NAC output Vighnaharta Technologies Pvt. -
Page 11: Installation
TSFC 24-2/4 User Manual 2. Installation 2.1 Installation Precaution WARNING: Do not attempt to install, service, or operate this unit, until this manual is read and understood. Do not connect other equipment to this unit. CAUTION: This system works at 0° C to +50° C and at a relative humidity of 90 ±2% RH. -
Page 12: Panel Wiring
TSFC 24-2/4 User Manual 2.3 Panel Wiring The following diagram shows basic components of Fire Panel System. It consists of various smoke and heat detectors, AC power source, Notification devices like siren or sounder, etc WiFi Connectivity 230VAC/50Hz Supply With... -
Page 13: Field Wiring Diagram
TSFC 24-2/4 User Manual 2.3.1 Field Wiring Diagram The following diagram shows connector’s placement on Interface board. 2.3.3 Initiating Device Circuit (IDC) • No. of Initiating circuit 2/4 Zone • Type Class B • Wire Size 1.5sqmm armoured FRLS cable •... -
Page 14: Output Circuits
TSFC 24-2/4 User Manual 2.3.4 Output Circuits The panel has three types of output circuits. • Notification Appliance Circuit (NAC) • Potential Free Contact Relay Outputs (PFC) • No. of NAC 1 circuits • Type Class B • Output Voltage •... -
Page 15: Maintenance
TSFC 24-2/4 User Manual Fixed Output (PFC) Three PFC outputs: 1. Fire1 status output 2. Fire2 status output 3. Fault status output Resettable 12VDC output 12VDC Resettable output for four wire detectors (24VDC/500mA) 2.4 Maintenance 2.4.1 Walk Test It is maintenance purpose mode. When any zone is set as a Walk test that time Walk Test LED starts blinking according to zone. -
Page 16: Periodic Inspection And Test Of System
TSFC 24-2/4 User Manual Check panel operation on mains supply (Battery disconnected). Check all connection of panel. Perform WALK TEST mode of panel. Check Smoke Detector. Check siren output. Check battery supply. Check panel mounting screw. Note: Please send above servicing report after every 6 months. -
Page 17: Do's And Don'ts
TSFC 24-2/4 User Manual Pre Check list for call: Check mains supply of system. ▪ Check supply voltage of panel. ▪ Check panel operation on battery backup mode. ▪ Check all Indicators are showing results as per action are taking place in the Panel. Mainly check out for the ▪... -
Page 18: Don'ts
TSFC 24-2/4 User Manual made over the life of the system. Other important records include built drawings, user manuals, written sequence of operation and servicing charts. 2.5.2 Don’ts ignore reoccurring problems 1. DON’T Some fire systems are plagued by reoccurring trouble conditions that just don’t seem to go away on their own. -
Page 19: System Programming
TSFC 24-2/4 User Manual 3. System Programming The fire panel system is completely programmable at site with the help of panel keypad and LCD. It does not require software skills OR any special software for Programming. When panel is in normal state, the screen displays as below. Normal state means all zone of panel are in Enable and panel is in fault free condiation. -
Page 20: Zone1
TSFC 24-2/4 User Manual 3.1 Zone1 After entering in the Zone 1 menu, LCD displays as shown below. ZONE 1 < ENABLE > Use LEFT and RIGHT keys to sub menu of ZONE 1 configuration. After changing the modes, press ENTER key to save the changes. -
Page 21: Nac
TSFC 24-2/4 User Manual 3. Disabled: This mode is used to disable the zone. The system does not scan the input signal from smoke detectors, heat detectors, etc. 3.3 NAC After entering in the NAC configuration menu, LCD will show below screen, <... -
Page 22: Wifi Mode
TSFC 24-2/4 User Manual If user want to change keypad password please follow below steps, a. Press ENTER key b. First enter OLD password Old Password **** Enter new password and press ENTER for save new password. New Password **** 3.7 WIFI Mode... -
Page 23: System Operation

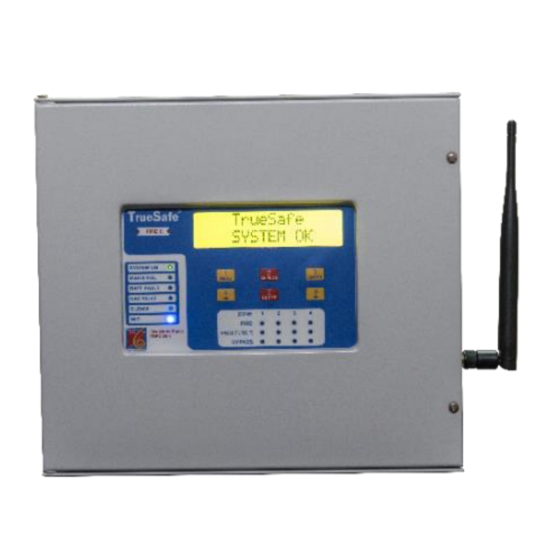

TSFC 24-2/4 User Manual 4. System Operation The following are the front panel of TSFC-24-2/4 panel, 4.1 Function keys 4.1.1 MENU key Menu key is use as a multifunction key. Following are the uses of Menu key, a. Enter main menu list b. -
Page 24: Enter Key
TSFC 24-2/4 User Manual RESET key is user password protected. System reset action is under user password protection. User can reset and restart the system any time. Basically the zone fire condition is latched in the system, user can perform required action for this condition. -
Page 25: Fault Condition
TSFC 24-2/4 User Manual • NAC turns ON till system silence or reset action is carried out by user OR till silence time is not completed. • The fixed TWO Fire output of the relay gets activated. • Fire alarms latched and are not allowed to clear automatically. -
Page 26: Wi-Fi Configuration
TSFC 24-2/4 User Manual a. Press both LEFT and RIGHT keys at same time and ON/OFF mains supply of panel. b. After power ON panel setting set as a Default setting. 4.4 Wi-Fi configuration Refer TrueSafe Wi-Fi configuration user manuals for more details.
