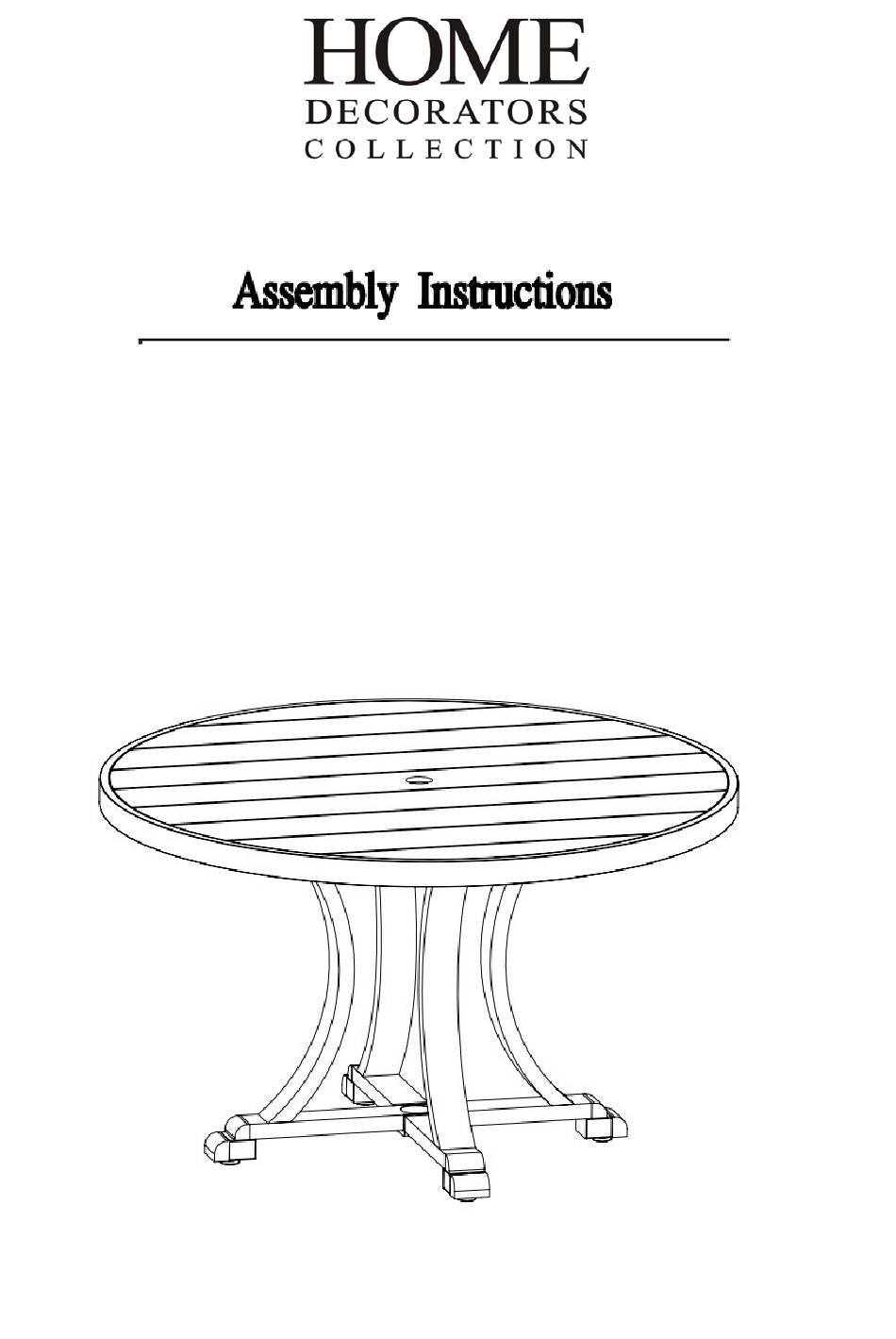

MARTINGALE 48" GRC TABLE
HDC#:1471310818 MFG#:FRA80468ST
Please read over this instruction manual as it will save time in the
assembly of this product.
Note: Prior to assembly, please open and lay parts out on a clean, soft
flat surface to avoid any damages to the product's finish.
page 1-8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1471310818 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection 1471310818

  • Page 1 MARTINGALE 48" GRC TABLE HDC#:1471310818 MFG#:FRA80468ST Please read over this instruction manual as it will save time in the assembly of this product. Note: Prior to assembly, please open and lay parts out on a clean, soft flat surface to avoid any damages to the product’s finish.
  • Page 2 Caution: The Martingale table was made for explicit purpose of providing outdoor functions and is not to be used as a toy. This product is not intended for inclement/severe weather in any form including, but not limited to: rain, hail, sleet, snow and/or wind. Manufacturer recommends that with formidable weather approaching you store and/or cover this table.
  • Page 3 DO NOT RETURN TO RETAILER IF YOU HAVE ANY QUESTIONS OR CONCERNS PLEASE VISIT OUR WEBSITE AT: www.yotrioint.com OR TOLL FREE AT: 1-800-245-2217 MONDAY-FRIDAY 8:30 AM TO 5:00 PM PACIFIC STANDARD TIME / 11:30 AM TO 8:00PM EASTERN STANDARD TIME Warranty Coverage Requirements: 1.
  • Page 4 Parts Check List Please remove all parts carefully from box and lay out on clean, soft surface to protect product’s finish. Keep protective covering on table top until final step. ② ① Table Top – 1PC Table Leg with channel – 1 PC ③...
  • Page 5 A. M6X20 Bolt– 12PC B. M6 Washer – 12PCS C. Hex wench– 1PC page 5-8...
  • Page 6 Slide the table leg (3) through the center of the table leg with channel (2) until the center holes on both legs align. Attach the table legs together using M6x20 bolts (A) and M6 washers (B). Use the hex wrench (C) to loosely tighten all the bolts Do not tighten all the bolts! page 6-8...
  • Page 7 Lay the table top (1) upside down on a soft surface. Attach the assembled table legs to the table top (1) using M6x20 bolts (A) and M6 washers (B). Use the hex wrench (C) to loosely tighten all the bolts. Do not tighten all the bolts! page 7-8...
  • Page 8 Once all the bolts are in place. Tighten all the bolts with the hex wrench (C). Turn the table right side up. Check to ensure the table is tightly assembled and stable before use. Remove the protective covering from the table top (1). page 8-8...
