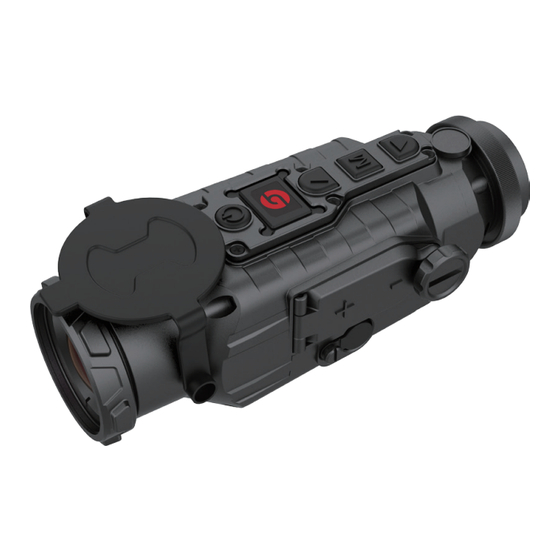

Guide TA Series Quick Start Manual
  1. Manuals
  2. Brands
  3. Guide Manuals
  4. Thermal cameras
  5. TA Series
  6. Quick start manual

Guide TA Series Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
TA Series
Quick Start Guide
V2.0
202005
Thank you for choosing our product. Please thoroughly go
through user manual before operation and keep it well for
future reference. All photos here are for reference only and
specifications are subject to the physical product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TA Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Guide TA Series

Summary of Contents for Guide TA Series

  • Page 1 TA Series Quick Start Guide V2.0 202005 Thank you for choosing our product. Please thoroughly go through user manual before operation and keep it well for future reference. All photos here are for reference only and specifications are subject to the physical product.
  • Page 2 The contents of this guide are valid at the time of printing.We will try our best to ensure the accuracy of contents of this guide, but we still cannot ensure the completeness of contents of it. Since we have...
  • Page 3 CAUTIONS Do not directly expose the thermal imager to high intensity radiation sources such as the sun, carbon dioxide laser and electric welding machine. 2. As the thermal imager combines precision optical instruments and electrostatically sensitive electronic devices, do not throw, beat or vibrate the thermal imager and its accessories at will to avoid deformation of structural members or installation dimension.

  • Page 4: Option Accessories

    1. ACCESSORIES 1. 1 Standard Accessories Portable C package Blinder USB cable Battery charger Quick Start Guide Warranty 1.2 Option Accessories Video cable Remote Adapter Adapter Adapter controller ring A ring B ring C PICATINNY External rail eyepiece...
  • Page 5 2. PART NAME ① Lens ⑥ Eyepiece ② Focusing Ring ⑦ Power Button ③ Lens Cover ⑧ Up Button ④ External Interface ⑨ Menu Button ⑤ Battery Cover ⑩ Down Button...

  • Page 6: Part Description

    3. PART DESCRIPTION 3.1 Lens This guide is applicable to multiple lens series. The illustration shows only one of the lens models. 3.2 Focusing Ring After the thermal imager is powered on, the image may be blurred when the distance to the observed target changes. And the lens focusing ring shall be turned to refocus until the target image is clear.
  • Page 7 3.5 Battery Cover When the product is used with batteries, it serves as the entrance to the battery. The product's supporting battery model is CR123, and the continuous working time is related to the CR123 battery capacity and activity. 3.6 Eyepiece It's the connection port for eye mask, external eyepiece and adapter rings.

  • Page 8: Function Description

    No display in Switch to color the menu bar palettes mode ↓ Downward Down switching options Menu bar button Change parameter display value 4. FUNCTION DESCRIPTION 4.1 Power Button 4.1.1 Power On Long press the power button to start the thermal imager, until a startup image is displayed in the eyepiece, power on.
  • Page 9 4.3 Display on In display off mode, press any key to display on. 4.4 Calibration Short press the power on/off button when power is on and the menu is not called out, to complete the corresponding calibration actions (except the automatic calibration). 4.5 Zoom-In When power is on and the menu is not called out, short press up button in turn to trigger normal recycle switching for 2X/4X zoom...
  • Page 10 • Green hot : Resemble the LLL (night vision) image. 4.8 Menu When power is on and the menu is not called out, long press M button to enter the main menu. When power is on and the menu is called out, long press M button to exit the menu bar or back to the previous menu. Icon Icon meaning Icon...
  • Page 11 1. Exit: To exit the menu bar. 2. Screen brightness: To adjust the grade of screen brightness. Grade 1-10 is adjustable. 3. Calibration model: To set a/an automatic calibration /scene calibration / shutter calibration, three types of calibration model. 4. Video Output: To open/close video output; when the video output is on, the icon will be displayed in the lower right corner of screen.
  • Page 12 Bluetooth icon disappears. Note: Bluetooth remote controllers are optional accessories. 7. Auto stand-by: Time for auto stand-by can be set, during which if no operation is carried out, it will enter into a stand-by mode. 8. Auto power-off: Time for auto power-off can be set, during which any operation will stop it from entering an auto power off mode.

  • Page 13: Battery Indicator

    the screen movement function. 13. Screen movement: Auxiliary adjustment of optical axis. The light axis of the equipment has been calibrated before delivered, screen center coordinates (0, 0).If the optical axis shift occurs during use, you can use this function to correct the deviation urgently. Note:The screen movement is an auxiliary function. Please use it when necessary.
  • Page 14 The manual version will be updated after technical improvement. WUHAN GUIDE SENSMART TECH CO., LTD. http://www.guideir.com...
