FOR MOLEX PRODUCT 5320 and 90365
DESCRIPTION
This fixture will terminate Molex Product 5320 and
to pre-cut robbon cable.
FEATURES
1.
This fixture can only be used in a standard Arbor Press
part No. 69020-0660.
2.
For loose piece connectors only.
3.
Hand loading of assembled connectors and cable.
SPECIFICATION
SIZE:
210mm x 160mm x 120mm
WEIGHT: 3Kg
WORKING SERVICES:

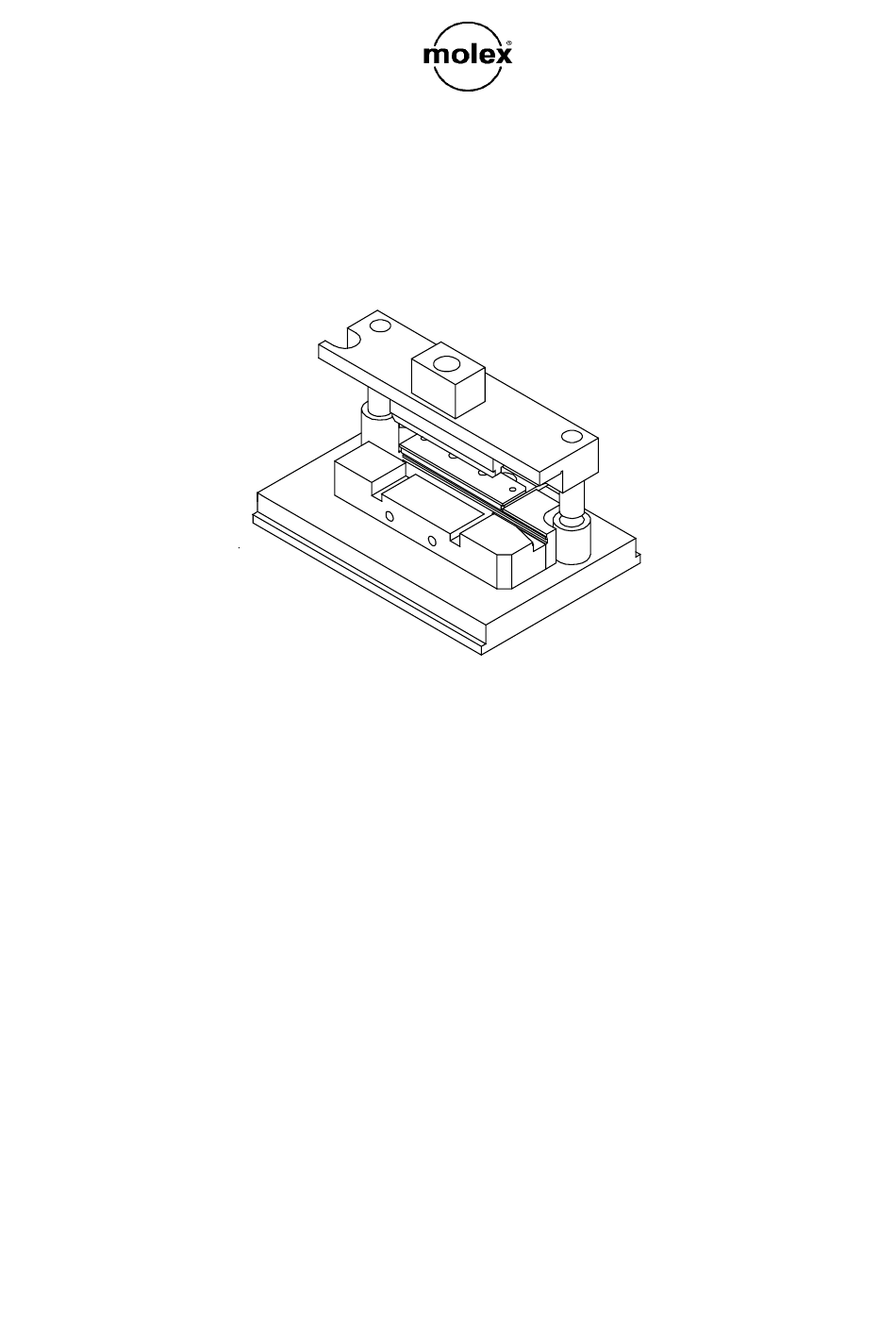

ARBOR PRESS FIXTURE
PART No. 69020-0680
None
90635 on
A.S.04.03.18/ISSUE E
FILENAME: SD-69020-0680
