RAISCUBE 3D Printer User Manual
1. X-Motion Leveling.

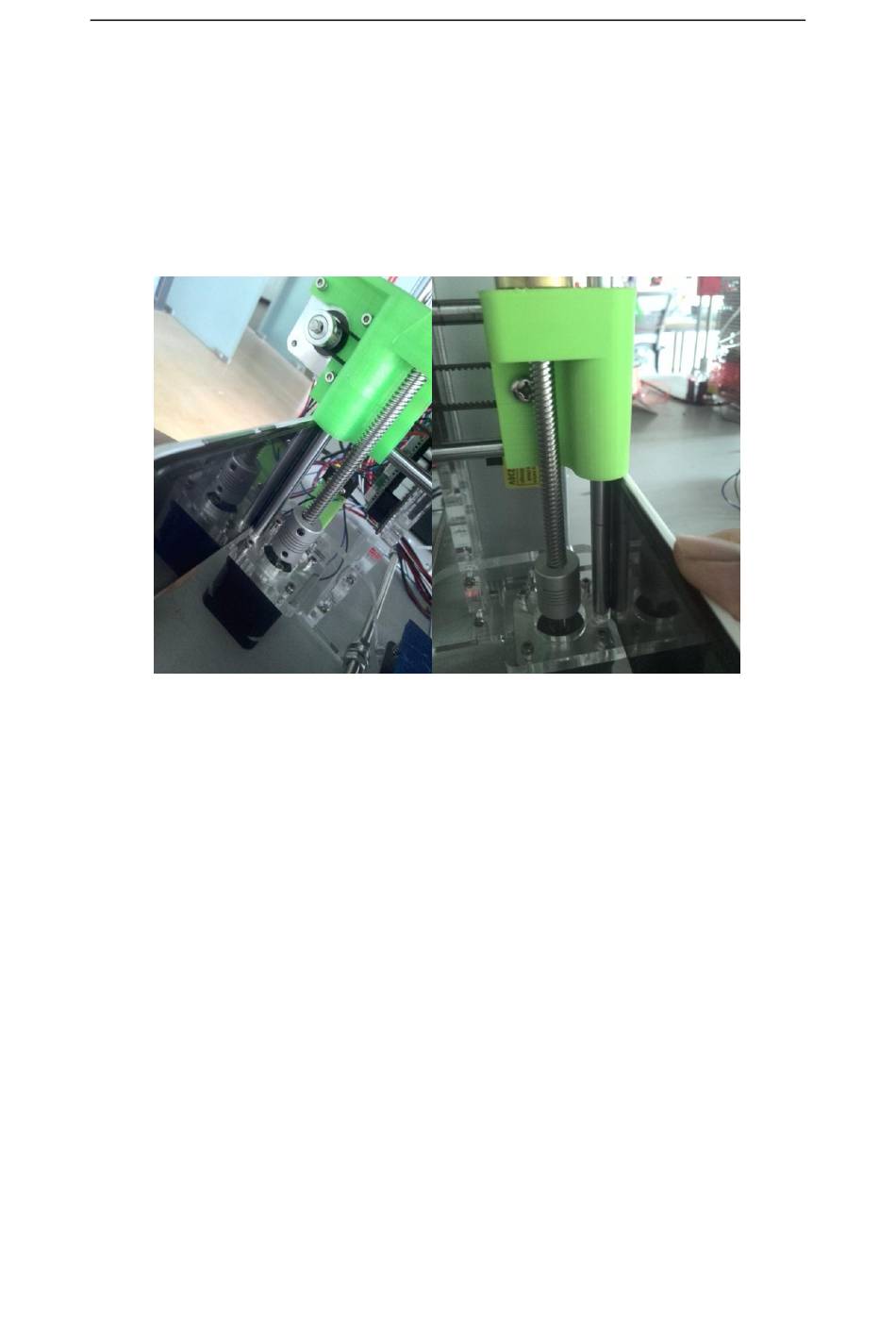

Keep a same distance between top surface of Z-Axis Motor Fixed Plate and bottom face of Z-Axis Link
Block (Left&Right). If not, turn a side of "Flexible Coupling" to keep two sides same to make it level.
2.Hotbed Level.
2.1
In the control panel, press control button and spin and press it to "Prepare" – "Z Home", then
Extruder moves torwards hotbed. Check if nozzle top almost touches hotbed surface. If not, find the
long screw behind Left Z-Axis Link Block, and adjust it to be.
2.2
Panel Control, "Prepare" – "Auto Home", to move nozzle to origin point. And still check if the
distance between nozzle top and hotbed surface. It should be only allow a piece of A4 paper to pass
through. If not, make clockwise (or coutercolockwise) rotation of the Wing Nuts beneath hotbed
surface. Manually move hotbed or slide Extruder to other vertexes of hotbed to make it level evenly.
3. CURA 3D Slicing Software
3.1
What can CURA help us?
Cura is mainly used for model slicing. It calculates paths upon the model files, and then generates 3D
model codes, named ".gcode". "STL" is the most common origin model files. These files can be save
as ".stl" in a certain drawing software or download online.
RAISCUBE FDM 3D Printer
Advertisement
Related Manuals for Raiscube R2
Summary of Contents for Raiscube R2
- Page 1 RAISCUBE FDM 3D Printer RAISCUBE 3D Printer User Manual 1. X-Motion Leveling. Keep a same distance between top surface of Z-Axis Motor Fixed Plate and bottom face of Z-Axis Link Block (Left&Right). If not, turn a side of “Flexible Coupling” to keep two sides same to make it level.
- Page 2 RAISCUBE FDM 3D Printer 3.2 Installation of Cura. Just like any other normal software installation. Find the “Cura.exe” in SD Card, and double click to cause the following window.
- Page 3 RAISCUBE FDM 3D Printer...
- Page 4 RAISCUBE FDM 3D Printer...
- Page 5 RAISCUBE FDM 3D Printer...
- Page 6 RAISCUBE FDM 3D Printer Click “Finsh” after configure the parameters as in pix, then Cura is installed successfully and show up.
- Page 7 RAISCUBE FDM 3D Printer Cura 3D Printing Slicing Configuration. “Layer height” is the most Shell Thickness: Thickness of the important setting to outside shell in the horizontal determine the quality of direction.This is used in Retract the filament when the nozzle your print.
- Page 8 If the layer will be placed down too fast the printer will slow down TravelSpeed -- Speed at which travel moves are done, a well built RAISCUBE can to make sure it has spent at least this amount of reach speeds of 250mm/s.
- Page 9 RAISCUBE FDM 3D Printer “Rotate” “Scale” “Mirror” Click on the model, “Rotate” “Scale” “Mirror” 3 buttons appear on left bottom coner.
- Page 10 RAISCUBE FDM 3D Printer Retraction: Retract the filament when the nozzle is moving over a none-printed area. Details about the retraction can be configured Speed: Speed at which the in the advanced tab. filament is retracted, a higher retraction speed works better.
- Page 11 RAISCUBE FDM 3D Printer 4. LCD Control Panel Menu ４.１ Screen Display Explanation. Extruder Current Temp.／Target HotBed Temp. Current Temp./Target Temp. Temp. Usage of Cooling Fan. Present Nozzle position in XYZ coordinate system. Nozzle Speed Rate. Moving Speed = Setting...
- Page 12 RAISCUBE FDM 3D Printer 4.2 Menu Map...
