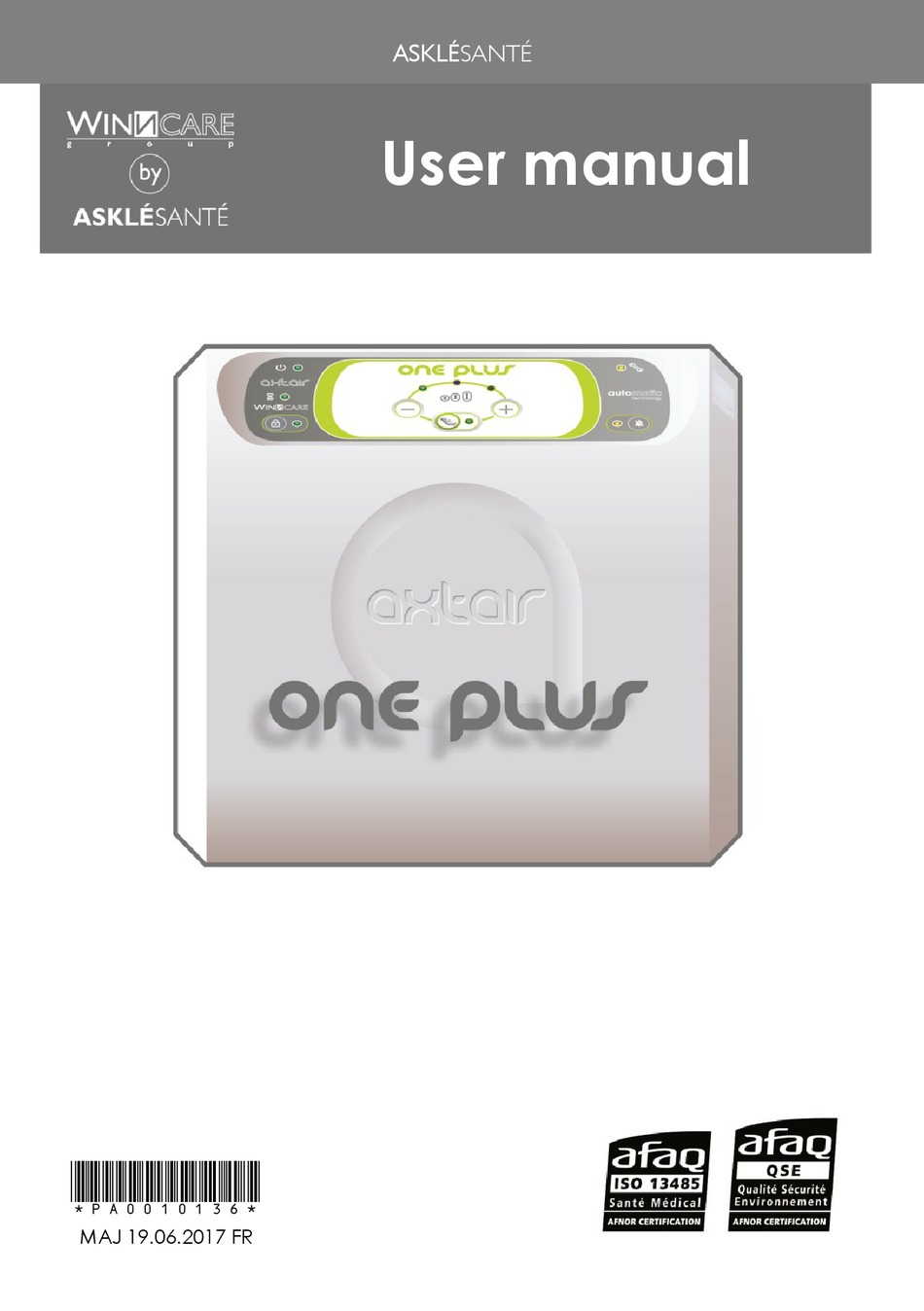

- Page 1 ASKLÉSANTÉ User manual *PA0010136* MAJ 19.06.2017 FR - 1 -...
- Page 2 ASKLÉSANTÉ - 2 -...
-
Page 3: Table Of Contents
ASKLÉSANTÉ TABLE OF CONTENTS INTRODUCTION ....................................- 4 - Necessary information for patients and their families ............- 4 - Instructions for use ........................... - 4 - Indications ............................- 5 - Contraindications ........................... - 5 - Precautions ............................- 5 - Warning.............................. -
Page 4: Introduction
ASKLÉSANTÉ INTRODUCTION ECESSARY INFORMATION FOR PATIENTS AND THEIR FAMILIES This product helps to prevent and treat pressure ulcers Why have you been prescribed this support? Your health condition reduces your mobility and exposes you to the risk of pressure ulcers. What is a pressure ulcer? A pressure ulcer is a lesion of varying depth on the skin, associated with excessive and prolonged compression of tissue between the body and a support surface. -
Page 5: Indications
ASKLÉSANTÉ NDICATIONS According to the National Commission for the Evaluation of Medical Devices and Health Technologies (CNEDiMTS) dated 22 December 2009 and in accordance with the expert opinions of clinicians: Prevention and treatment support for stage 1 to 2 pressure ulcers (above this according to medical advice) for patients who are up during the day, confined to “... -
Page 6: Warning
ASKLÉSANTÉ “ ” figures 201.107, 201.108 and table 201.101 for the measurement of the dimension. To satisfy the risk analysis according to the ISO 14971 standard, the evaluation was “ ” conducted on medical bed-therapeutic support (AXTAIR) units - accessories . -
Page 7: Use
ASKLÉSANTÉ ONTENT OF PACKAGING FOR MATTRESS TOPPER AND MATTRESS TYPE AIDS 1 rolled mattress topper in a transport bag 1 dirty/clean label 1 identification label 1 integrated compressor in a rolled support 1 electrical power supply cable with 2 attachment systems to long sides of a medical bed ... - Page 8 ASKLÉSANTÉ Keep the CPR and pump in the same axis in order to avoid arching the CPR by the weight of the pump. Incorrect use could cause a water tightness defect for the CPR. Press the button to switch on the rapid inflation kit until the support is inflated (approx.
-
Page 9: Use
ASKLÉSANTÉ Shows that the compressor is switched on Flashes to indicate inflation of the support After it goes off, the patient can be installed The on indicator shows that the keyboard is locked: it is not possible to change mode. Continuously pressing for 4 seconds unlocks the keyboard. -
Page 10: Un-Installing The Support
ASKLÉSANTÉ : CPR (S MERGENCY CARDIO PULMONARY RESUSCITATION UPPORTS In the event of a cardiac arrest: “ ” Turn the nozzle of the CPR valve to position the index finger on the OPEN position. The support deflates and the back part of the thorax is on the firm surface of the bed base in less than 20 seconds to enable External Cardiac Massage to be performed. -
Page 11: Storage And Transport
ASKLÉSANTÉ TORAGE AND TRANSPORT There is a label on the transport bag to enable rapid identification of the device from the AXTAIR range contained in the bag. This label must be visible when the product is stored. The following storage and transport conditions must be followed: ... -
Page 12: One Plus Compressor
ASKLÉSANTÉ Do not allow abrasive cleaning products such as commercial detergents, acetone type solvents, ether and colouring products (iodized alcohol, potassium permanganate, silver nitrate etc.). Do not use abrasive materials such as steel wool or scotch brite “ ” ONE PLUS COMPRESSOR Use a cloth soaked in a detergent product solution or CE* labelled surface detergent/disinfectant... -
Page 13: Maintenance Diagram And Recommended Disinfection
ASKLÉSANTÉ AINTENANCE DIAGRAM AND RECOMMENDED DISINFECTION Receipt Complete Device Pre-treatment of surface (Decontamination) Surface distribution by µfibres Alcohol based solution* (PPE: Hygiene mask, gloves, apron) Disposal by waste network Cover altered? Identical replacement cover to original protection Physical cleanliness Unacceptable Bio cleaning surface maintenance Method: 3 Operations Product: Detergent-Disinfectant**... -
Page 14: Alarms And Repair
ASKLÉSANTÉ ALARMS REPAIR The following table shows all the alarms for the device, their triggering conditions, their priority as well as possible repair. Description Priority Trigger Possible repair Condition Time frame 1 - Re-connect the compressor Alarm indicator 2 - Check the status of the flashing electrical network and mains present... -
Page 15: Maintenance - Revision
ASKLÉSANTÉ WARNING: After accidental deflation of the support due to an extended power cut, at re- inflation, ensure that the patient has no limbs stuck between the support and the bed barriers. MAINTENANCE - REVISION REQUENCY OF REVISIONS it is recommended revising the ONE PLUS compressor at least every 2 years of use. To facilitate the management and scheduling of these revisions running time counters give information about the compressor usage times. -
Page 16: Guarantee
ASKLÉSANTÉ GUARANTEE The compressor and its supports are guaranteed for 2 years against any manufacturing defect from the date of purchase and under the recommended usage conditions outlined in the usage leaflet. This guarantee cannot substitute legal guarantees. To avail of this, the purchase invoice for the product must be retained. In the event of a manufacturing defect and if the product is still under guarantee, please contact your service provider showing them the relevant product. -
Page 17: Technical Characteristics
ASKLÉSANTÉ TECHNICAL CHARACTERISTICS CHARACTERISTICS OF: MATTRESS TOPPER SUPPORTS Supports from KITS References VAXT2/ONE-P VAXT2/ONE/CIC-P – Validated patient weight 150 kg Support weight 5.7 Kg Support size 195 x 87 x 17 cm Number: 18 Therapeutic air cells (AT) Height: 12 cm Material: Polyurethane ether Rapid deflation (CPR valve) less than 20 seconds. -
Page 18: Electromagnetic Compatibility
The Axtair ONE PLUS requires special precautions with respect to CEM and it must be installed and serviced according to CEM information provided upon request from ASKLE SANTE and available on their website. The use of accessories, and cables other than those supplied and specified by ASKLE SANTE can result in increased emissions from the Axtair ONE PLUS or reduced immunity, affecting its operation, as well as its performance. - Page 19 ASKLÉSANTÉ - 19 -...
- Page 20 DISTRIBUTED BY – – – ASKLÉSANTÉ Groupe Winncare 200, rue Charles Tellier Actiparc de Grézan 30 034 Nîmes Cedex 1 (France) – – Tel.: +33 (0)4 66 02 15 15 Fax. : 33 (0)4 66 02 15 00 Email: contact@askle.com www.winncare.fr...
