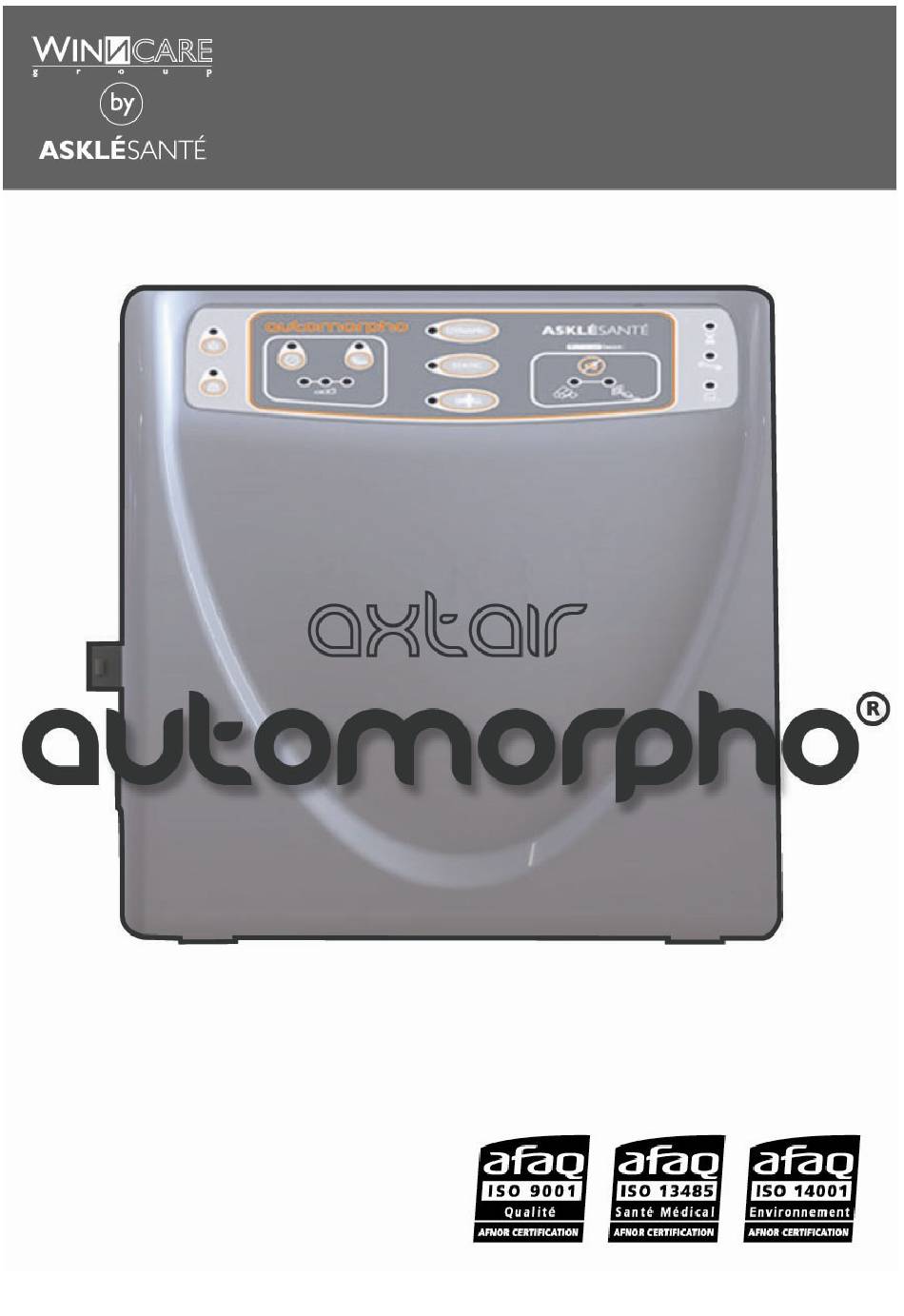

- Page 1 User manual *PA0010085* MAJ 08/01/2013 UK...
-
Page 4: Table Of Contents
CONTENTS OF THE PACKAGING ............................ 3 MEANINGS OF THE COMPRESSOR PICTOGRAMS ...................... 3 DESCRIPTION................................... 3 HOW IT WORKS..................................3 INDICATIONS ..................................4 PRECAUTIONS ..................................4 SPECIFICATION ..................................5 CONTROL PANEL .................................. 6 INSTALLATION/USE ................................8 ALARMS ...................................... 9 MAINTENANCE/DISINFECTION ............................10 MAINTENANCE/SERVICING .............................. -
Page 5: Contents Of The Packaging
CONTENTS OF THE PACKAGING 1 mattress, rolled in a transport bag 1 integrated compressor in rolled-up mattress 1 electric power cable which has 2 ways of being attached to the bed. 1 user manual MEANINGS OF THE COMPRESSOR PICTOGRAMS Caution, read the user manual and/or instructions for use Keep dry Class II appliance (double-insulated) Caution electrical and electronic equipment - only to be disposed of in a... -
Page 6: Indications
INDICATIONS In the opinion of the Committee for Evaluation of Goods and Services published in the Journal Officiel on 21 July 2005 and in the opinion of clinical experts: Prevention and aid to treatment of eschars from stages 1 to 4 (according to medical opinion) in patients confined to bed for more than 15 hours, presenting with a risk of eschars assessed against a validated scale and clinical judgment. -
Page 7: Specification
SPECIFICATION MATTRESS SPECIFICATION AUTOMORPHO AUTOMORPHO XL Tested user weight: 30 – 130 kg Weight of the support: 8 Kg 9.5 Kg Dimensions of the support: 195 x 87 x 17 cm 195 x 117 x 17 cm Air cell height: 12 cm Rapid deflation (CPR valve) less than 15 seconds... -
Page 8: Control Panel
CONTROL PANEL Start/stop button This button starts or stops the compressor. The button is pressed in the normal way to start the compressor and held down to stop Keyboard locking button This button locks the touchpad; simply hold it down for approximately 4 seconds to avoid accidental selections. The touchpad defaults to locked after it has not been used for 5 minutes. - Page 9 Operating modes This zone selects one of the three possible operating modes. Pressing the button corresponding to the mode enables it. The green light comes on continuously to validate the selection. Low pressure dynamic mode: enables alternating of one cell out of two (except for the 3 head cells).
-
Page 10: Installation/Use
INSTALLATION/USE Unroll the mattress. Position it on the base of the bed, ensuring the cushion "head" and "foot" symbols are placed correctly. Hook the compressor to the bed frame (the foot). Guide the power lead for the compressor along the bed to the nearest power point and connect it. N.B.: If you have a high-speed inflation pump, after stage 4, Connect the power lead for the inflation pump to the mains, Blank off the connection to the mattress feed pipe with the attached plug. -
Page 11: Alarms
ALARMS If there is a pressure alarm, the red indicator will flash and an intermittent audio signal will sound. The audio signal can be cancelled by pressing the button. Check the feed pipe connection to the compressor and that the CPR valve is closed Check that the air lines are positioned and connected correctly and not split Check that there are no leaks in the cells (structure, connection) Replace defective parts if necessary (pipes, cells, etc.) -
Page 12: Maintenance/Disinfection
MAINTENANCE/DISINFECTION RISK OF ELECTRIC SHOCK: Before any maintenance, disconnect the equipment from its power supply in order to avoid any risk of physical injury or damage to equipment. Never expose the equipment to sprayed water. RISK OF DAMAGE TO THE EQUIPMENT: You must not use corrosive cleaning products such as industrial degreasing agents, solvents of the acetone type and ether. - Page 13 Flow chart of recommended cleaning and disinfection Réception Dispositif Complet Pré – Traitement de surface [Décontamination] Répartition de surface par µfibres Solution base alcoolique* [EPI : masque Hygiène, gants, tablier] Housse Altérée Elimination par la filière déchets Housse de remplacement identique Propreté...
-
Page 14: Storage
STORAGE A bag is provided for transport and storage of the mattress, which must be rolled. Total deflation of the mattress is easier if you use the inflation/deflation pump connected to the CPR (OPEN position). The compressor can be placed inside the bag. The following label identifies the cleaning state of the AXTAIR device: Blue label when the mattress is clean Yellow label if there is a risk that the mattress is contaminated... - Page 16 ASKLÉSANTÉ– 200, rue Charles Tellier – ZI du Grézan – 30 034 Nîmes Cedex 1 (France) Tél. : +33 (0)4 66 02 15 15 – Fax. : 33 (0)4 66 02 15 00 – Email : contact@askle.com www.askle.com...
