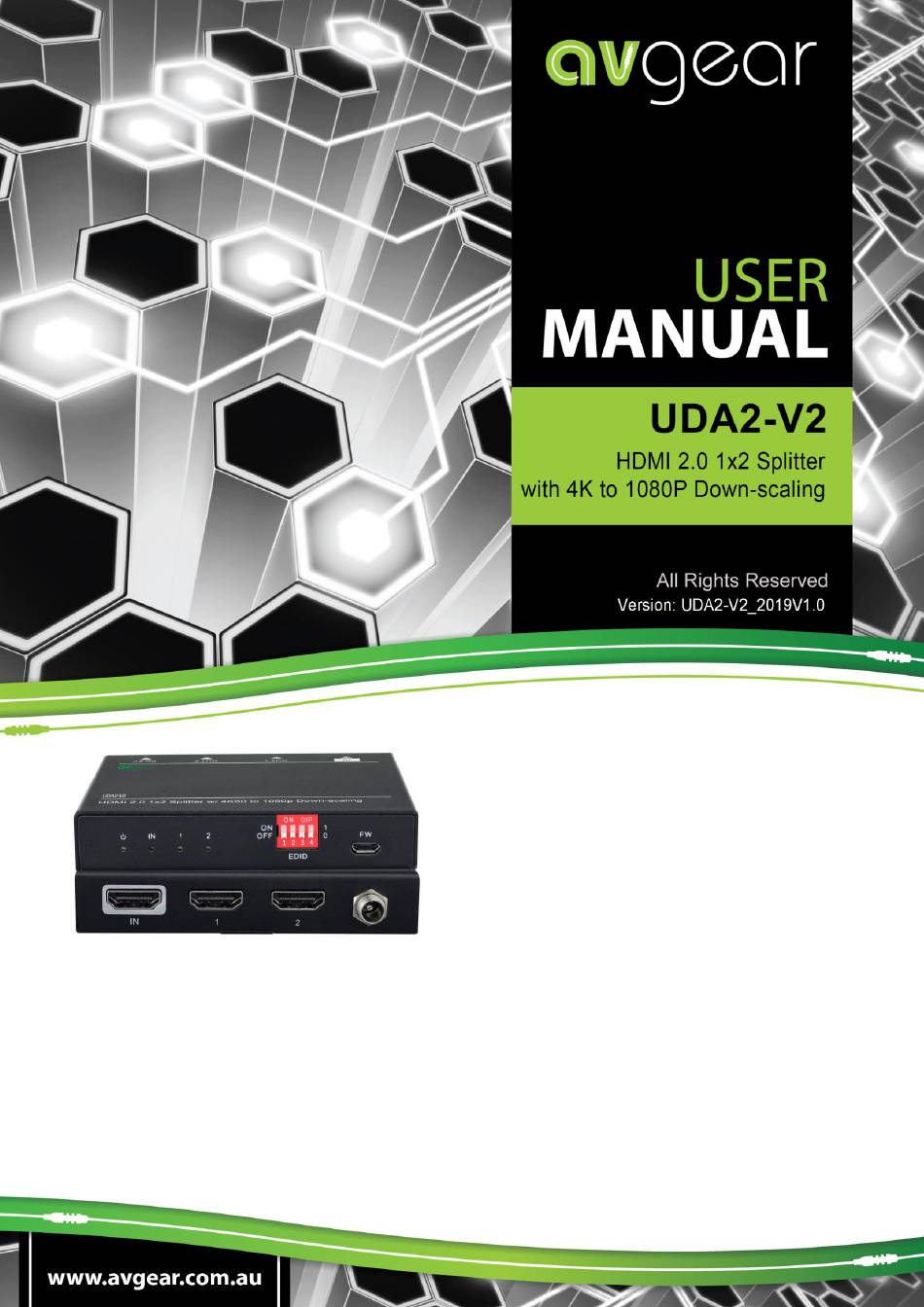

UDA2-V2
The UDA2-V2 HDMI 2.0 1x2 Splitter distributes one
HDMI input to two HDMI outputs. The splitter
supports HDMI video resolutions up to 4K@60Hz
4:4:4, 1080P 3D, and multichannel audio formats.
Besides passing EDID information from the display,
there are multiple built-in EDID settings which can be
selected by the 4-pin DIP switch on the front panel.
Features
Supports HDMI 2.0 and video
▪
resolutions up to 4K@60Hz 4:4:4.
HDMI input supports HDCP 2.2 and
▪
the outputs support HDCP Active or
HDCP Passive mode.
Supports video resolution down-
▪
scaling, the 4K input can be
automatically downscaled to 1080P
output for compatibility with 1080P
display.
18Gbps high bandwidth.
▪
Advanced EDID management:
▪
multiple built-in EDID settings can be
selected.
Built-in equalizer for signal
▪
enhancement to avoid signal
attenuation in transmission.
Supports CEC pass-through.
▪
Provides LEDs to indicate the current
▪
operating status.
Firmware upgrade by Micro-USB
▪
port.
Advertisement
Table of Contents
Related Manuals for AVGear UDA2-V2
Summary of Contents for AVGear UDA2-V2
- Page 1 1080P output for compatibility with 1080P display. 18Gbps high bandwidth. ▪ The UDA2-V2 HDMI 2.0 1x2 Splitter distributes one Advanced EDID management: ▪ HDMI input to two HDMI outputs. The splitter multiple built-in EDID settings can be supports HDMI video resolutions up to 4K@60Hz selected.
- Page 2 UDA2-V2 PLEASE READ THIS PRODUCT MANUAL CAREFULLY BEFORE USING THIS PRODUCT. This manual is only for operational instruction only, and is not to be used in a maintenance capacity. The functions described in this version are current as of March, 2019. Any changes of functions and operational parameters will be updated in future manual versions.
- Page 3 UDA2-V2 SAFETY OPERATION GUIDE In order to guarantee the reliable operation of the equipment and safety of the user, please abide by the following procedures in installation, use and maintenance: 1. The system must be earthed properly. Please do not use two blade plugs and ensure the AC power supply ranges from 100v to 240v and from 50Hz to 60Hz.
-
Page 4: Table Of Contents
UDA2-V2 TABLE OF CONTENTS Introduction ......................1 Brief Introduction ..................1.1 Features ...................... 1.2 What’s in the Box ..................1.3 Panel Description ..................... 2 Front Panel ....................2.1 Rear Panel ....................2.2 System Connection ....................3 Usage Precautions ..................3.1 System Diagram ................... -
Page 5: Introduction
1. Introduction 1.1 Brief Introduction The UDA2-V2 HDMI 2.0 1x2 Splitter, which can distribute one HDMI input to two outputs. The splitter supports HDMI video resolutions up to 4K@60Hz 4:4:4, 1080P 3D, and multichannel audio formats. Besides passing EDID information from the display, there are multiple built-in EDID settings can be selected by the 4-pin DIP switch on the front panel. -
Page 6: What's In The Box
UDA2-V2 1.3 What’s in the Box ▪ 1 x UDA2-V2 HDMI 2.0 1x2 Splitter ▪ 4 x Rubber feet ▪ 1 x Power Adapter (5V DC 1A) ▪ 1 x User Manual Note: Please contact your distributor immediately if any damage or defect in the... -
Page 7: Panel Description
UDA2-V2 2. Panel Description 2.1 Front Panel 1 2 3 4 EDID ① POWER LED: The LED illuminates red when power is applied. ② INPUT LED: The LED illuminates blue when there is a HDMI input. ③ OUTPUT LEDs: The LED illuminates blue when there is a HDMI output on the ④... -
Page 8: System Connection
▪ All the HDMI and control devices should be connected before powering on. 3.2 System Diagram The following diagram illustrates a typical input and output connection that could be used with the UDA2-V2. 4K/60 Display 4K/60 Display 4K/60 Blu-ray 1080p Display... -
Page 9: Dip Switch Operation
UDA2-V2 4. DIP Switch Operation 4.1 EDID Management The Extended Display Identification Data (EDID) is used by the source device to match its video resolution with the connected display. By default, the source device obtains its EDID from the first connected display. Meanwhile, since the displays with... -
Page 10: Hdcp Mode
UDA2-V2 4.2 HDCP Mode Put the switch 4 on the “ON” position to select HDCP Active mode, or on the “OFF” position for HDCP Passive mode. Switch Status Mode HDCP Passive OFF (0) Automatically follows the display’s HDCP version. (Default) -
Page 11: Specifications
UDA2-V2 7. Specifications Video Input Input (1) HDMI Input Connector (1) Type-A female HDMI HDMI Input Resolution Up to 4Kx2K@60Hz 4:4:4 8bit HDMI Standard HDCP Version 2.2, 1.4 compliant Supported Video Output Output (2) HDMI Output Connector (2) Type-A female HDMI...
