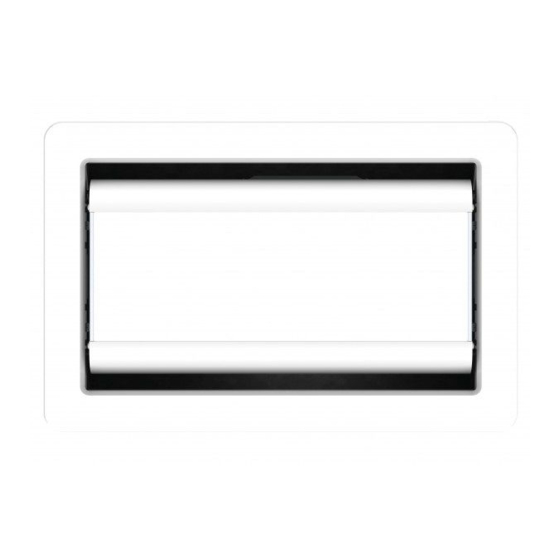

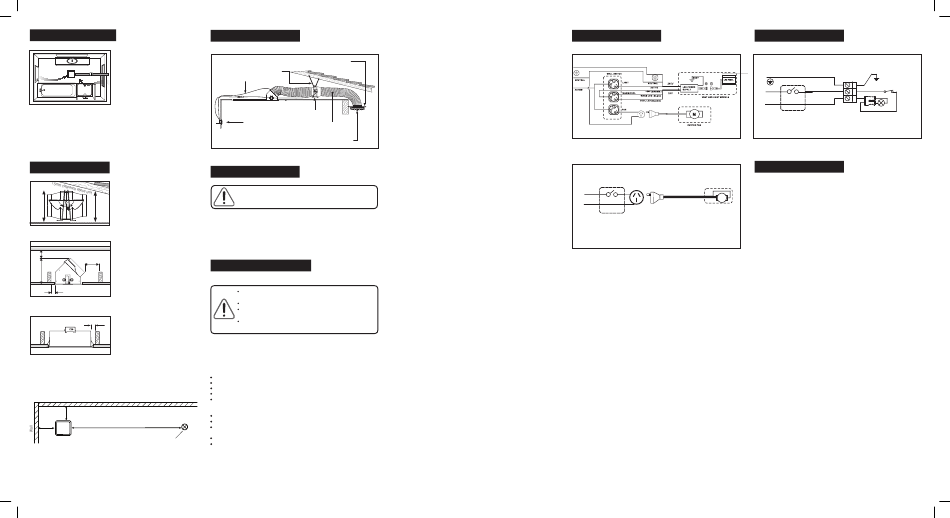

IXL tastic LUMINATE 34401 Installation Manual

Ventilation Requirements

For maximum efficiency and fan performance
there are a few key points to
keep in mind when installing your Tastic.
Sufficient air inlet into room
Steam will only be removed if there is sufficient
flow of air through the room.
Ensure generous inlets exist through windows,
vents or under the door.
Airflow path from inlet to fan should ideally
Fig.1: Ideal placement of Tastic. pass over the steam sources (see Fig.1)
Bathrooms which have high ceilings, are larger
then average, or have an open
shower may all require an additional ventilation
fan to be installed.
We recommend that you visit our website for
further details and suggestions on
effectively ventilating your bathroom.

Clearances

Recommended Ceiling Heights

Minimum ceiling height for all models Tastic
215 min.
Luminate is 2.2m.
mm overall
Blower
height
Ensure that the exhaust outlet of the Tastic is
Height 230mm
directed towards the outer wall.
All appliances must be mounted so that the lowest
Fig. 2a: Minimum blower clearances
point is at least 2.2m above the floor. The Vent
body and ducted blower is designed to fit a ceiling
cavity or between – floor space with a minimum
height of 245 mm. The modules may be installed
between joists using the spring clips (Fig. 2c).
C
Ensure that the outlet of the Vent unit is directed
F
towards the outer wall. If the desired orientation of
the Vent unit directs the ducting across ceiling joists
D
ensure that the closest ceiling joist is not within
150 mm of the Vent outlet.
Figure 2a - Minimum Blower Clearances
E
Figure 2b - Minimum Unit Clearances
Fig. 2b: Minimum clearances for installation
C: Models: 34401, 34402, 35401 & 35402-50 mm
Models: 36411 & 36412 - 75 mm
D: Models: 34401, 34402, 35401 & 35402-195 mm
Models: 36111 & 36112 - 151 mm
E
E: Models: 34401, 34402, 35401 & 35402-35 mm
to structural member
Models: 36411 & 36412 - 50mm to
structural members.
F: Models: 34401, 34402, 35401 & 35402-150 mm.
Figure 2c
Fig. 2c: Minimum clearances for installation
Models: 34401, 34402, 35401 & 35402-35 mm
min.clearance is required near all joists
Models: 36411 & 36412-50 mm min.
clearance is required near all joists.
Luminate Heat Module Clearances
Wall
Min
Min 300mm
Min
300mm
1500mm
Fig 3. Clearance to walls Sprinkler System / Smoke Detector
Exhaust Fan Capacity 400m /hr
3
Recommended Room Size
Luminate Vent Area Suitability: Luminate Vent & Light Area Suitability:
8.3m 2 with shower / 20.8m 2 without shower 8.3m 2 with shower / 20.8m 2 without shower
Based on standard 2.4m ceiling height

Overview

Neo Models: 34401, 34402, 35401, 35402 Eaves
lining
Flexible support
Vent & Light Cable
Vent unit
Inline Ducted Blower
Exterior
of home
Wall switch (not supplied) Ducting
Air outlet grille
positioned in eaves lining
Fig. 4: Layout of Luminate Vent & Light

Electrical Requirements

For Luminate modules fitted with LED centre lamps. To ensure
correct operation and to prolong the life of the LEDs please wire as
per the following wiring diagrams for the appropriate model.
Modules may be connected to a lighting or power circuit if loading permits. These models are for
wired-in installation and wiring must be carried out by a registered electrician. Switches and a
wall plate are not provided with the Vent & Heat Luminate modules. Do not use these products
with any solid state speed control or commercial dimming device.
Luminate Vent & Light module is fitted with a custom LED panel.

Safety

Read through these instructions completely before commencing installation.
When installed, the Tastic Luminate appliance shall, under no
circumstance, be covered with insulating material or similiar material.
This Tastic unit must be installed horizontally in the ceiling.
There is no IP rating on the Luminate Heat module. Vent and Vent
& Light modules have IPX4 rating.
To prevent overheating do not place any object within 1 metre
of heat lamps.
NOTE: This product must be installed by a qualified installer.
Locate the Tastic in accordance with the requirements of the current Australian/New Zealand Wiring
Rules AS/NZS 3000 relating to damp situations.
In some installations this may mean that no part of these Tastic may be located directly above any part
of a bath or shower recess or enclosure. For unenclosed showers refer to Wiring Rules conditions.
Switches and other controls must not be located where they can be touched by a person in the bath
or shower.
Do not look directly into heat lamps when in use.
Tastic products are not tanning lamps.
Make sure the lamps have cooled and power is off to the Tastic before removing lamps for replacement.
Do not operate this appliance without the fascia or glass panels in position.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
Young children should be supervised to ensure they do not play with the appliance.
This appliance must be mounted with the lowest point at least 2.2 metres from the floor.
If the supply cord is damaged, it should be replaced by the IXL Home or its service agent or a
similarly qualifed person in order to avoid a hazard.
This appliance must not be mounted immediately below a socket outlet.
Regulations concerning the discharge of air have to be fulfilled.
WARNING: Curtains or combustible material may ignite if in contact or close proximity with the heater.

Safety Features

Thermal Switch (Heat Module only)
When for any reason the temperature inside the unit reaches 65°C, the thermal switch will cut off
power to the Tastic Luminate. When the temperature drops, the thermal switch will automatically reset
and reconnect the power.
Wiring Diagr ams
Fig. 6: Wiring diagram for models 34401 and 34402, Luminate Vent & Light
Wall Switch (not supplied)
ACTIVE M
NEUTRAL
DUCTED FAN
35401 & 35402: 0.3A 50Hz
Fig. 7: Wiring diagram for model 35401 and 35402, Luminate Vent
Wiring Diagr ams
BODY
TERMINAL BLOCK
Wall Switch (not supplied)
THERMAL SWIT CH 65°C
ACTIVE
NEUTRAL
HEAT L AMP
36411 & 36412: 3.3A 50Hz
Fig. 8: Wiring diagram for model 36411 and 36412, Luminate Heat.
Wiring – Aust & N Z
For the heat module (models 36411, 36412) a local isolating switch (not supplied) must be
incorporated in the fixed wiring to the appliance to allow disconnection of supply during
maintenance. A local isolating switch (not supplied) must be incorporated in the fixed wiring
to the appliance to allow disconnection of supply during maintenance.
The Tastic Luminate is classified as a Room Heater and as such:
In accordance to AS/NZS 3000 this isolating switch shall be -
(a) installed immediately adjacent to an entrance to, or within, the room where the room heater
is located; or
(b) installed on the switchboard at which the room heater final subcircuit originates.
Refer to AS/NZS 3000 for further regulations regarding isolating devices.
It must not be installed where it can be reached from the bath or shower recess or enclosure
(see AS/NZS 3000 Section 7).
Vent & Vent & Light models 34401, 34402, 35401 & 35402:
Switch the power outlet for the Inline Blower with a wall switch (not supplied with Vent Module)
as per the Wiring Diagrams. Do not mount the power outlet for the Inline Blower more than 200 mm
from the Inline Blower.
