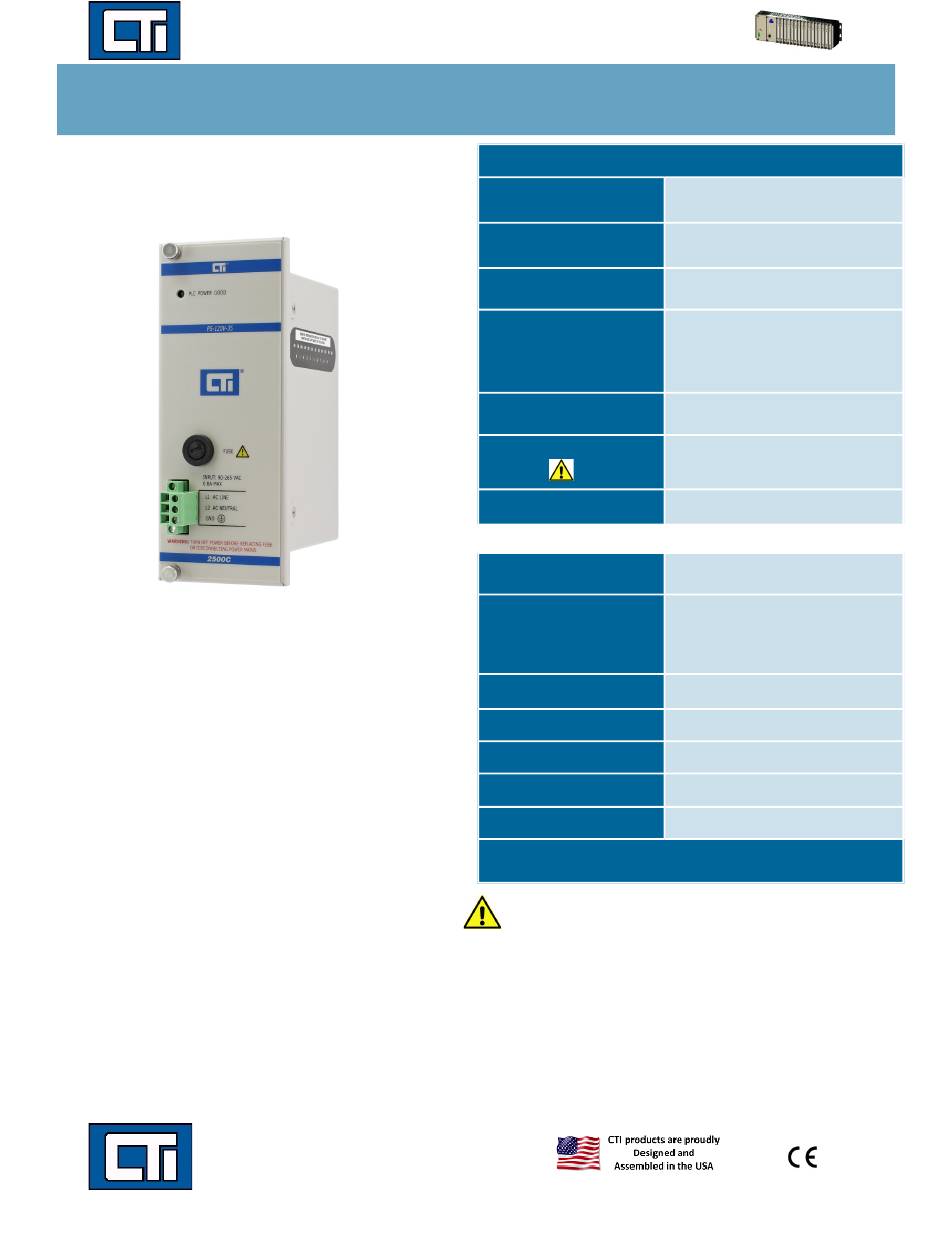

CTI 2500 Series Quick Start Manual

2500C-PS-120V-35 120VAC/125 VDC 35 Watt Power Supply
DESCRIPTION
The 2500C-PS-120V-35 is a triple wide module that
provides power for the CPU and all IO modules
plugged in the Compact Chassis.
FEATURES
•
Triple wide module
•
110/220 VAC 50/60Hz
•
Maximum 35 watts backplane power
•
86mSec holdup time
Copyright© 2022 Control Technology Inc
2500 Series
Control Technology Inc.
5734 Middlebrook Pike, Knoxville, TN 37921-5914
Phone: +1.865.584.0440 Fax: +1.865.584.5720
www.controltechnology.com
All Rights Reserved
Compact System
®
Field Wiring Connector
Input Voltage Operating
Range
Total Wattage Rating
Steady State Input Current
at full Load
Peak Inrush Current
Fusing
Hold Up Time
Module Size
Isolation
Operating Temp Range
Storage Temperature
Relative Humidity
Shipping Weight
Agency Approvals Pending
◊ Note: All measurements are made from a power supply at
25ºC .
Note: Ideally the power should be turned off to the
power supply before doing any maintenance. It
must be noted that when the fuse is either blown or
removed the CPU will go into a normal shutdown.
Replacing the fuse with the power off guaranties
the system will come up in an orderly fashion. Re-
placing the fuse while power is still on could create
unpredictable restart issues.
Input Specifications◊
3 Pin Removable Connector
90-240 VAC, 47-63Hz, single phase
90-125VDC
35 watts maximum output
@ 0 to 60ºC
0.78 Amps max @ 90VAC
0.63 Amps max @ 120VAC
0.36 Amps max @ 240VAC
0.525 Amps max @ 90VDC
0.349 Amps @ 125VDC
5.1 Amps max @ 120VAC
9.1 Amps max @ 220VAC
1.0 Amp 250VAC,
3 x 20mm front panel accessible
Schurter P/N 0031.1081
86 mSec @ 35 Watt Full Load
Triple wide module
1500VAC: 110/220 VAC-to-Backplane
500VDC: Chassis-to-Backplane
1500VAC: 110/220 VAC-to-Chassis
IEC 60950-1
0ºC to 60ºC (32ºF to 140ºF)
-40ºC to 85ºC (-40ºF to 185ºF)
5% to 95% (non-condensing)
2.0 lb. (0.91 Kg)
UL, ULC, FM(Class 1, Div 2), CE
21 February 2022
