DESCRIPTION:
• This unit is used to activate solenoids and read meters and sensors from a distance using a 2-wire ca-
ble. According to the model, the Agrónic Monocable module (MAM) can connect up to:
MAM2-41:
o
2 latch solenoids of 2 wires (or 1 of 3 wires)
4 digital inputs (2 can be meters)
1 sensor
MAM5-71:
o
5 latch solenoids of 2 wires (or 2 of 3 wires)
7 digital inputs (5 can be meters)
1 sensor
MAM8-101:
o
8 latch solenoids of 2 wires (or 4 of 3 wires)
10 digital inputs (8 can be meters)
1 sensor
• The connection between the MAM and the Agrónic is done through a linking unit, the Agrónic Mono-
cable Link (EAM). A 2-wire cable from the EAM connects all the MAMs. This cable not only communi-
cates the MAM but it also provides them with electrical power.
• Up to 120 MAM modules can be connected to a single EAM.
• The distance between the EAM and the last MAM on the line can surpass 10 km. (under certain condi-
tions).
• The built-in light indicates when the unit is communicating.
• Configuration and consultation using a Modules Reader (or through another reader, the Agrónic Mo-
nocable Reader, LAM) with screen and keyboard.
• Two-fold security:
The battery in each MAM lasts over 30 hours in the event of a power failure or a power cut in the
o
Monocable.
The batteries in the EAM last several hours in the even of a general power failure. With larger ca-
o
pacity batteries, it can keep operating for several days.
• Protection against overloads.

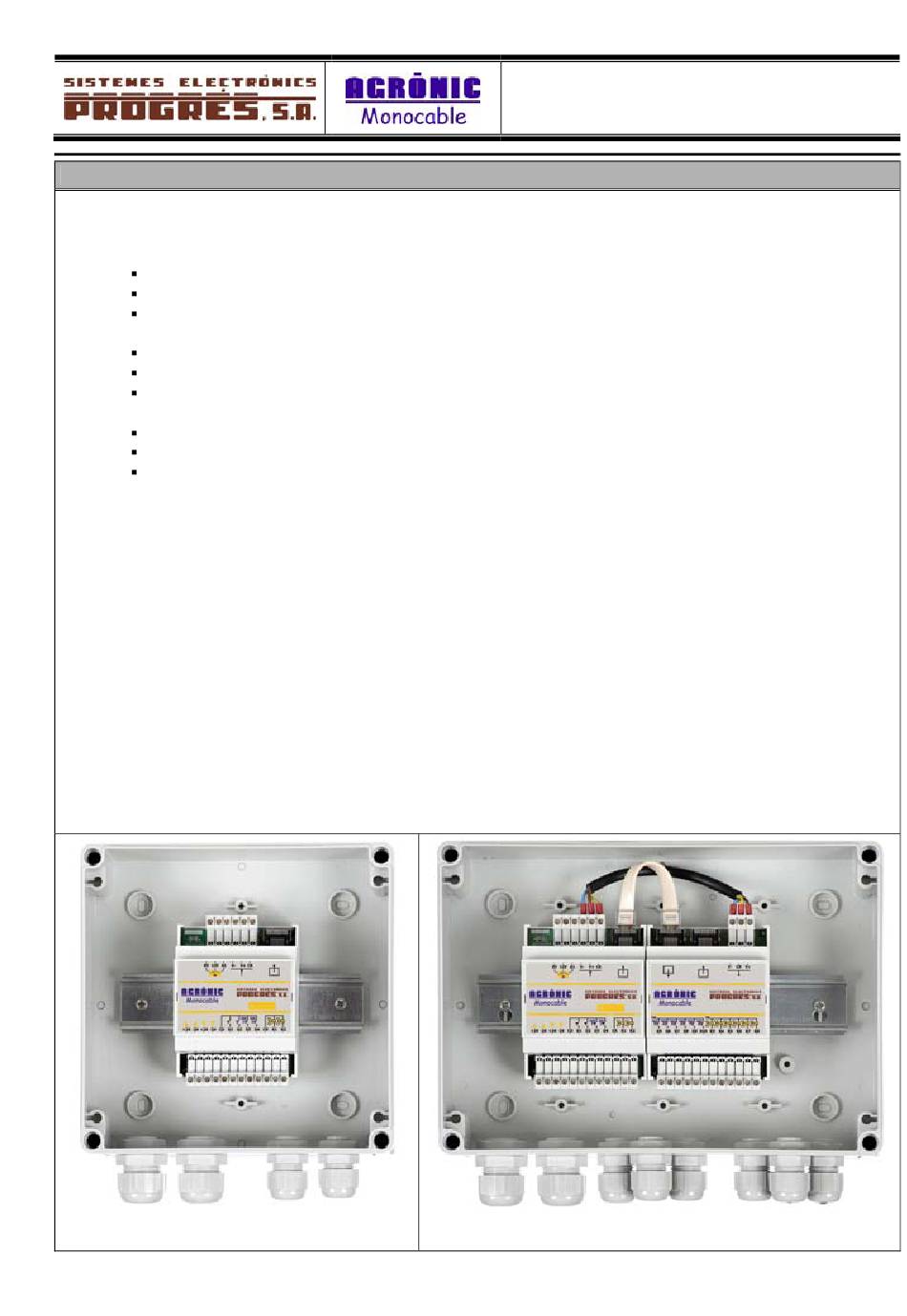

MAM2-41
AGRÓNIC MONOCABLE MODULE
MAM
MAM8-101
