- Page 1 OPERATION AND MAINTENANCE MANUAL Mini laser level Art. 0449 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of its issuance (shown in this page). On the other hand, the instrument may also be subject to important technical changes in the future, without the manual being updated. Therefore, see FERVI for information about modifications that could be implemented. REV. 2 October 2013...
-
Page 3: Table Of Contents
MEASURING INSTRUMENTS CONTENTS DESCRIPTION OF THE INSTRUMENT ............4 Technical specifications ....................5 USE OF THE INSTRUMENT ................. 6 Mounting the tripod ......................6 Replacing the batteries ....................7 Page 3 of 7... -
Page 4: Description Of The Instrument

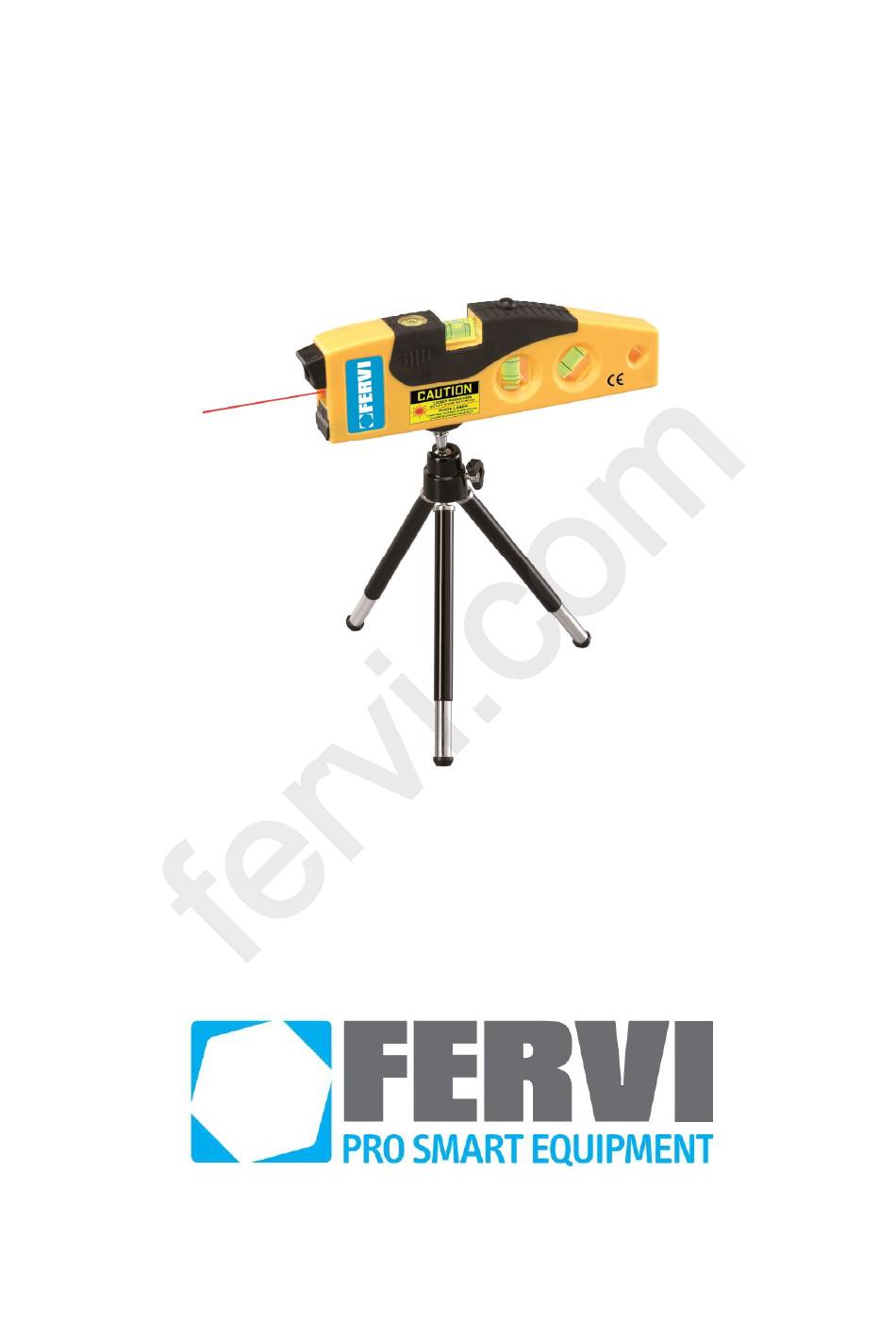

MEASURING INSTRUMENTS 1 DESCRIPTION OF THE INSTRUMENT Figure 1 - Overview of the instrument Body of the instrument Vertical bubble vial Omnidirectional bubble vial Extendible tripod Horizontal bubble vial Battery compartment ON/OFF button Laser beam Diagonal bubble vial Cross-beam cap Page 4 of 7... -
Page 5: Technical Specifications
MEASURING INSTRUMENTS 1.1 Technical specifications Laser Class Class II, emission less than 1mW Laser wavelength 650 nm Maximum working distance Cross 5 m, Point 20 m Accuracy ± 0.05% Batteries 2 x 1.5V AAA Page 5 of 7... -
Page 6: Use Of The Instrument
MEASURING INSTRUMENTS 2 USE OF THE INSTRUMENT Using the tool is very simple. To turn on the mini laser level, just press the ON/OFF button located on the upper part of the body of the level (Ref. 4 Figure 1). The first time the button is pressed the instrument is turned on, when the button is press again it will turn off the instrument. -
Page 7: Replacing The Batteries
MEASURING INSTRUMENTS 2.2 Replacing the batteries When the batteries inside the instrument are uncharged, they will need to be replaced. The battery compartment is located at the end of the instrument (Ref. 8 Figure 1). To change the batteries inside it will be necessary to remove the cover by sliding it down and removing the batteries from the compartment.
